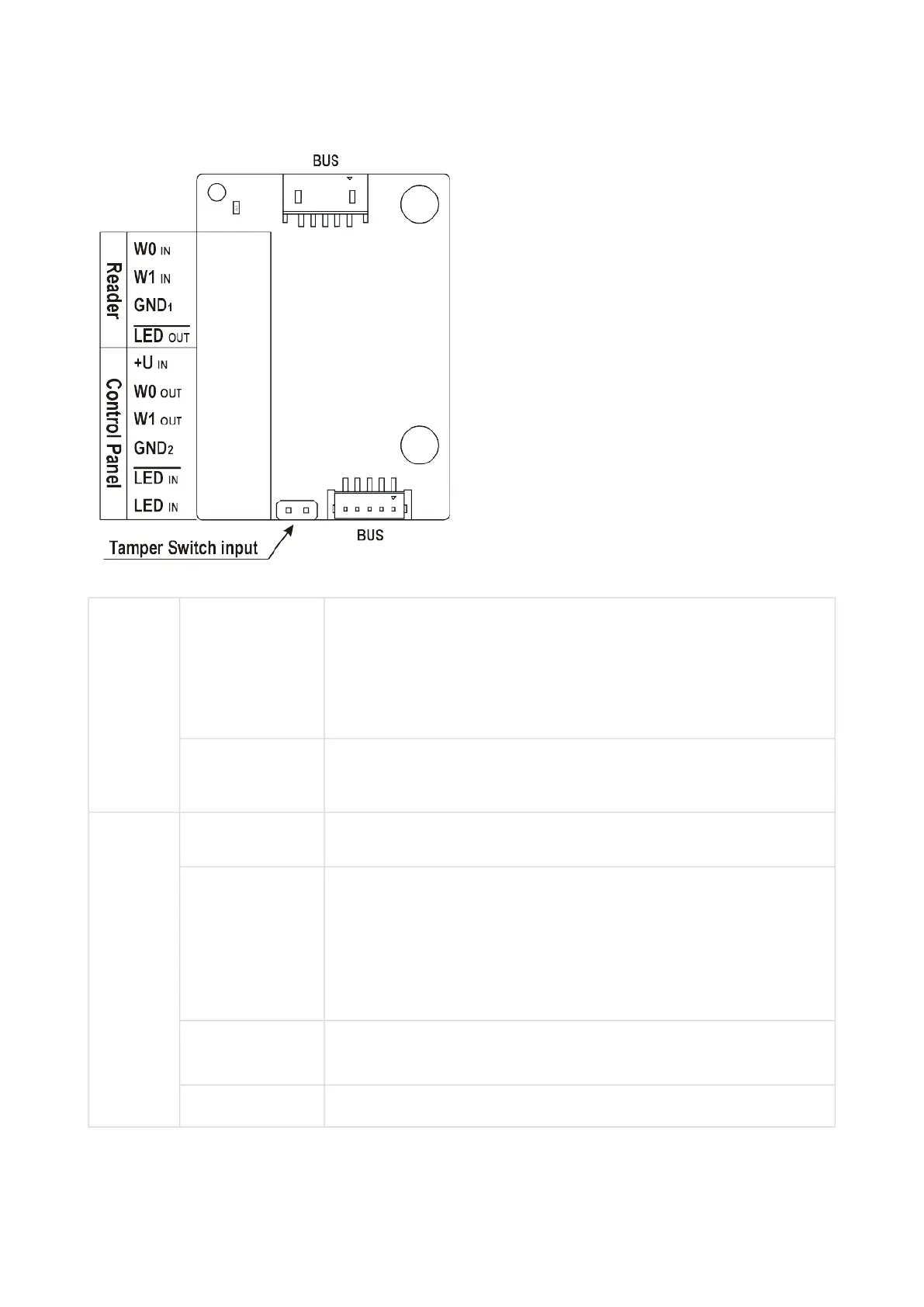

Installation manual 2N® IP Verso
Reader W0 IN, W1
IN, GND
1
Isolated 2-wire WIEGAND IN
LED OUT Isolated open LED OUT switched againstGND1 on WIEGAND IN
side (up to 24 V / 50 mA)
Control
Panel
+U IN +U
IN
(5 to 15 V DC) WIEGAND OUT power supply input
W0 OUT, W1
OUT, GND
2
Isolated 2-wire WIEGAND OUT
LED IN
(negated)
Isolated input for open LED IN, input activated by GND2
LED IN Isolated input for open LED IN, input activated by +U
