LUBRICATING THE BEARING RODS
After every 100 hours of operation, the bearing rods should be lubricated.
Caution: Do not spray lubricant directly on the bearing rods. Applying too much
lubricant can leave residue throughout the printer. The bearings only require a thin
layer of grease to operate properly.
Power off and disconnect the printer from utility power.1.
Apply a small amount of bearing rod grease (Part Number: 403194-00) to a clean, lint-free cloth.2.

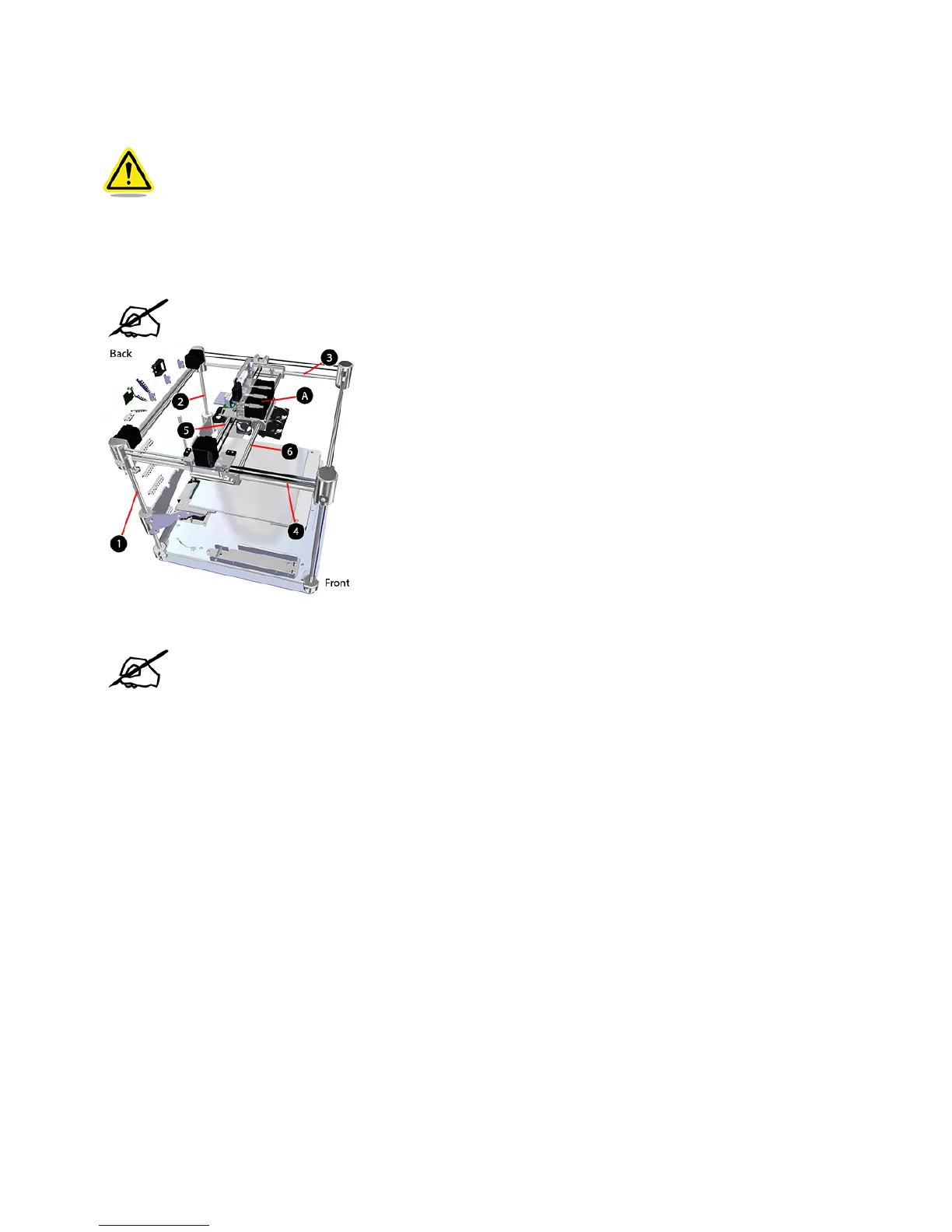

Using the cloth, wipe the six (6) bearing rods (1-6).3.
NOTE: Ensure each bearing rod has been fully treated with a thin layer of bearing rod
grease.
Manually move the print jet carriage (A - See Above) front-to-back and left-to-right.4.
NOTE: The print jet carriage should glide smoothly.
