CUBEX SOFTWARE USER INTERFACE
HOME TAB

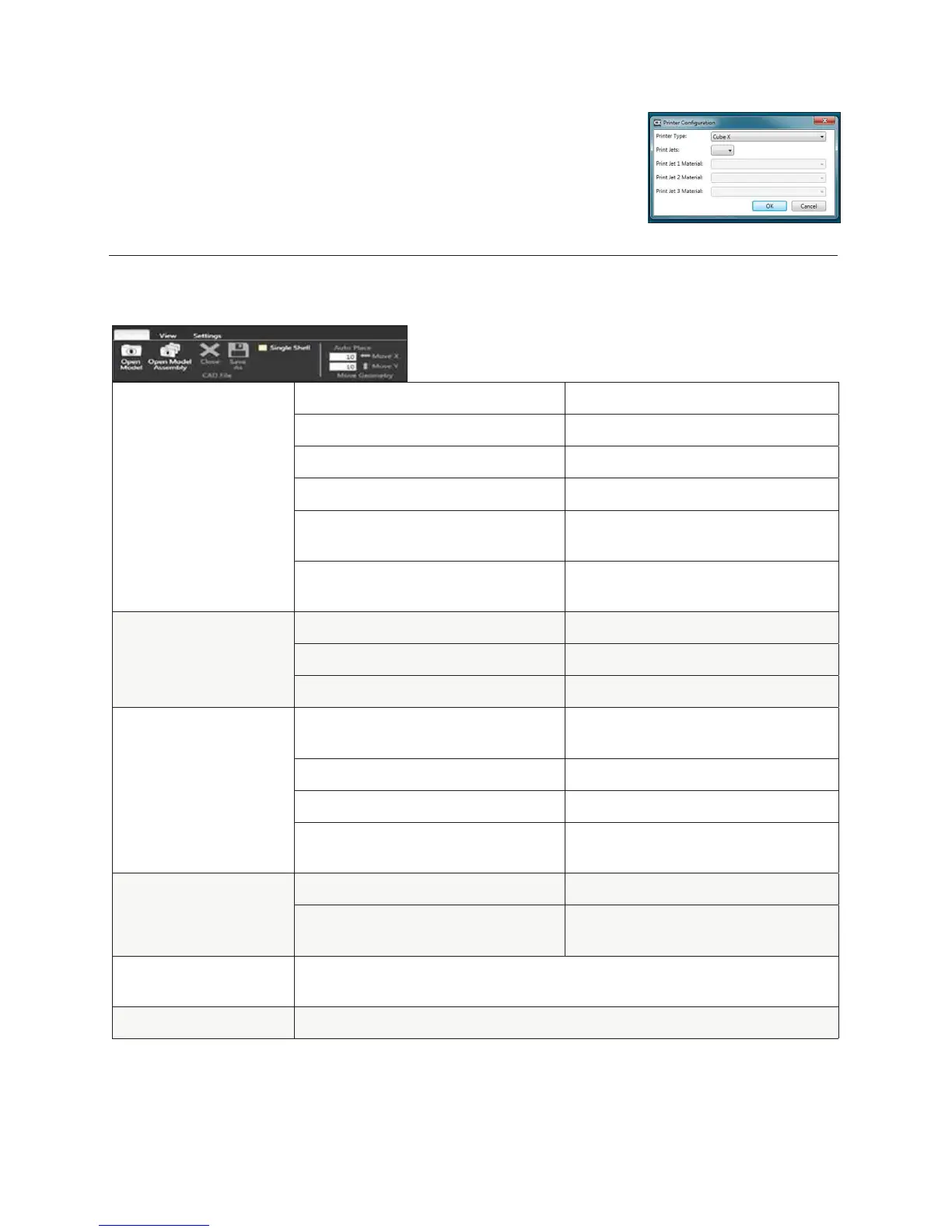

Fig. 60
STL FILE Open Opens a .stl le
Open Model Assembly Open a multi-part assembly of .stl les
Close Close the open .stl le
Save As Save the current open .stl le
Auto Place Automatically places .stl les which are
already open
Single Shell When checked will automatically select all
parts as one shell
PRINT FILE Open Opens a .cubex le
Close Close the open .cubex le
Save Print File Save the current open .cubex le
SCALE GEOMETRY % Scale Scale your part before creating the .cubex
le
To mm Change a part from inches to mm
To inches Change a part from mm to inches
Revert Undo changes made using the Scale
Geometry options
ROTATE GEOMETRY X / Y / Z Rotate the part in the X, Y, or Z axis
Revert Undo changes made using the Rotate
Geometry options
PICK SHELLS Select which Print Jets print which parts. The available options will vary depending on
how many Print Jets you have active and what colors are loaded into them.
BUILD Opens the build settings window.
• Once the printer conguration window opens, select the number of “Print Jets” that
is installed and the material types that are loaded into the Print Jets. Click “OK” to
save these settings. (Fig. 60)
