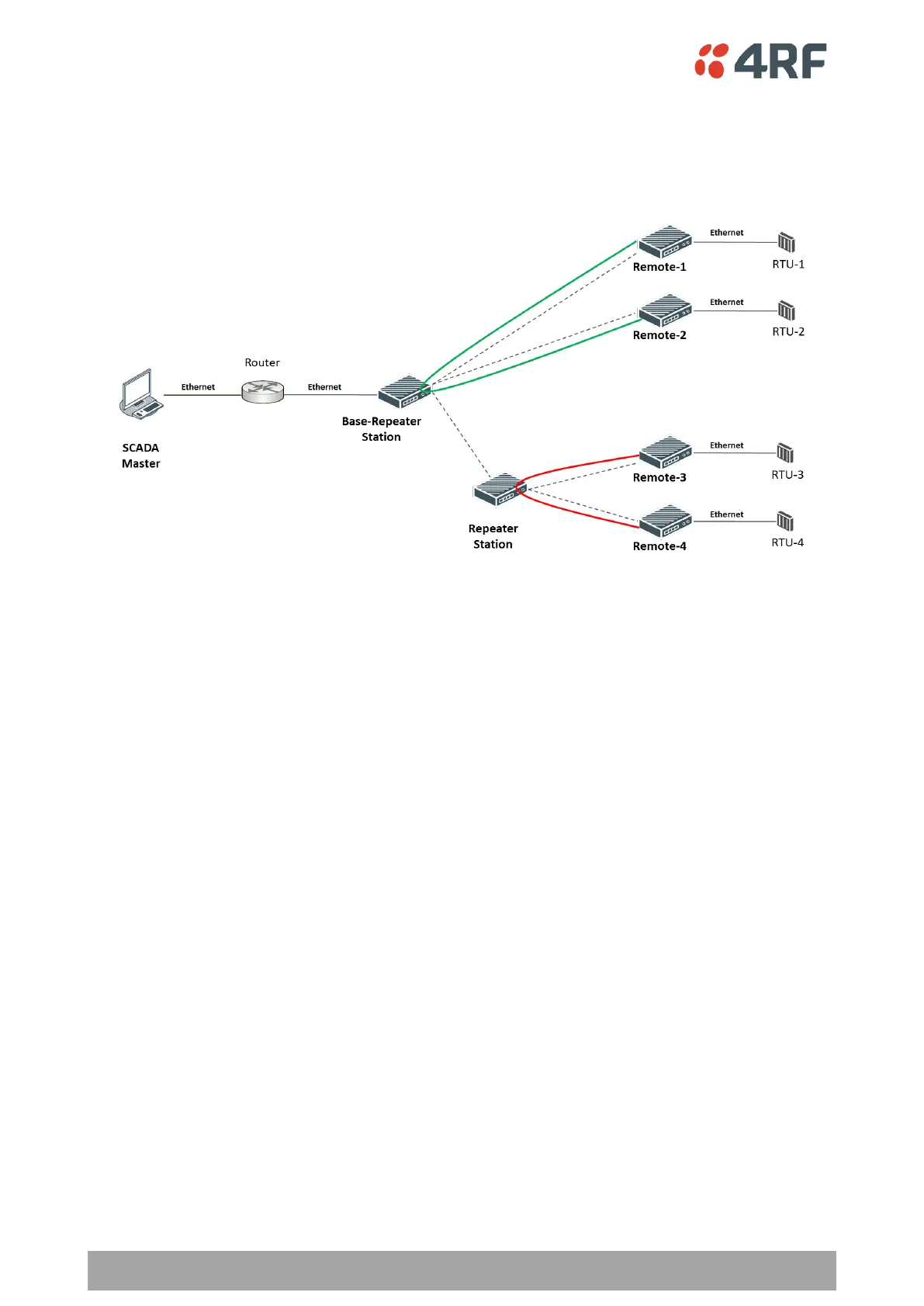

The following example depicts peer to peer communication between remote radios via a base-repeater and
via a repeater station where remote-1 and remote-2 communicate with each other via the base-repeater
station and remote-3 and remote-4 communicate with each other via the repeater station. The repeater,
remote-3 and remote-4 radios are configured with packet filtering disabled and all radios in the network
are configured with IP header compression ratio disabled.
Note: The Aprisa SR+ network is transparent to the protocol being transmitted; therefore, the Packet
Filtering parameter is based on the Aprisa SR+ addressing and network protocols, not the user (SCADA, etc.)
traffic protocols.
