450 | Aprisa SR+ User Manual
Aprisa SR+ User Manual 1.11.1
11. Interface Connections

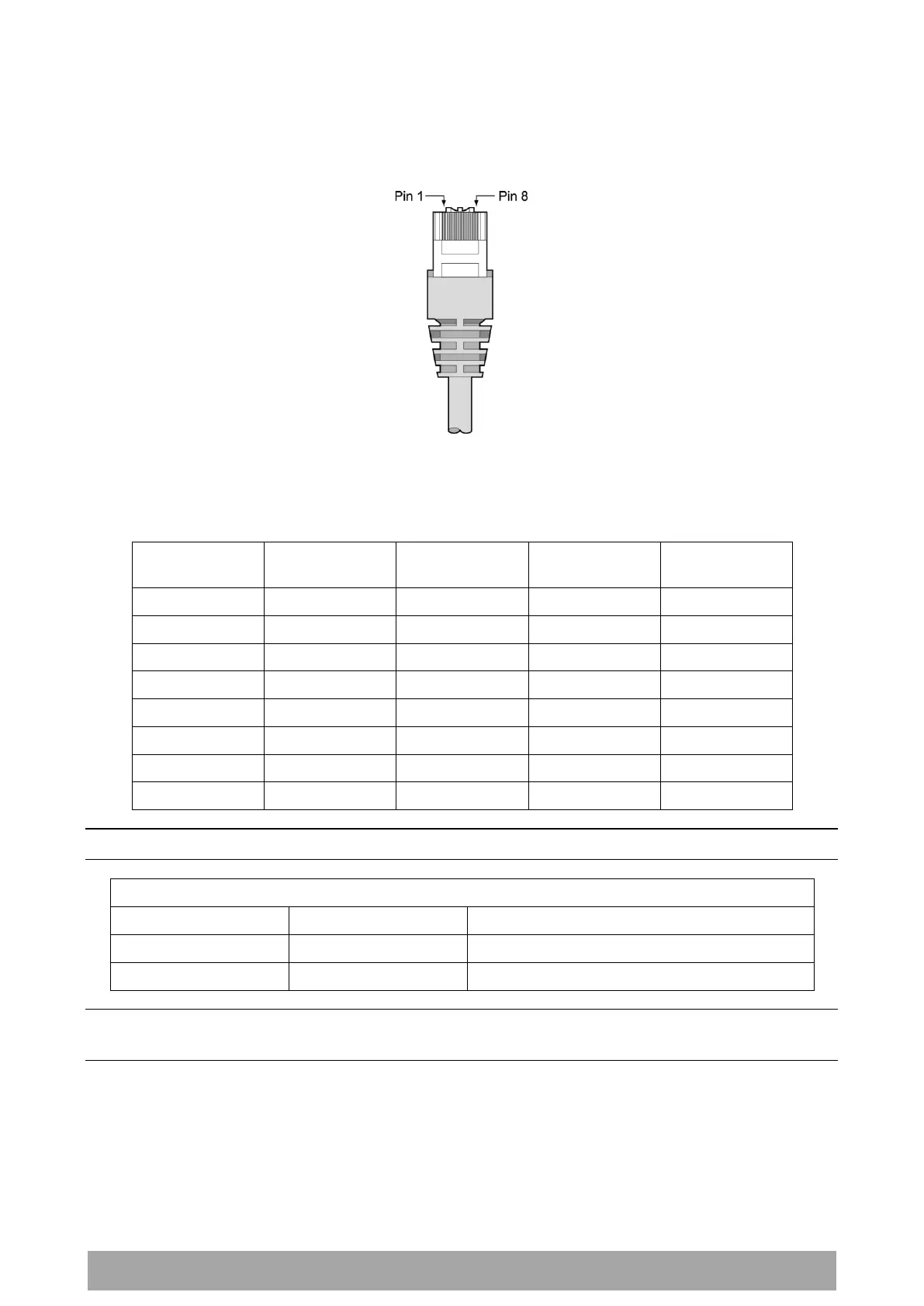

RJ45 Connector Pin Assignments
RJ45 pin numbering
Ethernet Interface Connections
Pin Number
Pin Function
Direction
TIA-568A Wire
Colour
TIA-568B Wire
Colour
1
Transmit
Output
Green/white
Orange/white
2
Transmit
Output
Green
Orange
3
Receive
Input
Orange/white
Green/white
4
Not used
Blue
Blue
5
Not used
Blue/white
Blue/white
6
Receive
Input
Orange
Green
7
Not used
Brown/white
Brown/white
8
Not used
Brown
Brown
Note: The TIA-568B wiring is the most commonly used and matches the cables we supply.
RJ45 connector LED indicators
LED
Status
Explanation
Green
On
Ethernet signal received
Orange
Flashing
Data traffic present on the interface
Note: Do not connect Power over Ethernet (PoE) connections to the Aprisa SR+ Ethernet ports as this will
damage the port.
