Interface Connections | 453
Aprisa SR+ User Manual 1.11.1

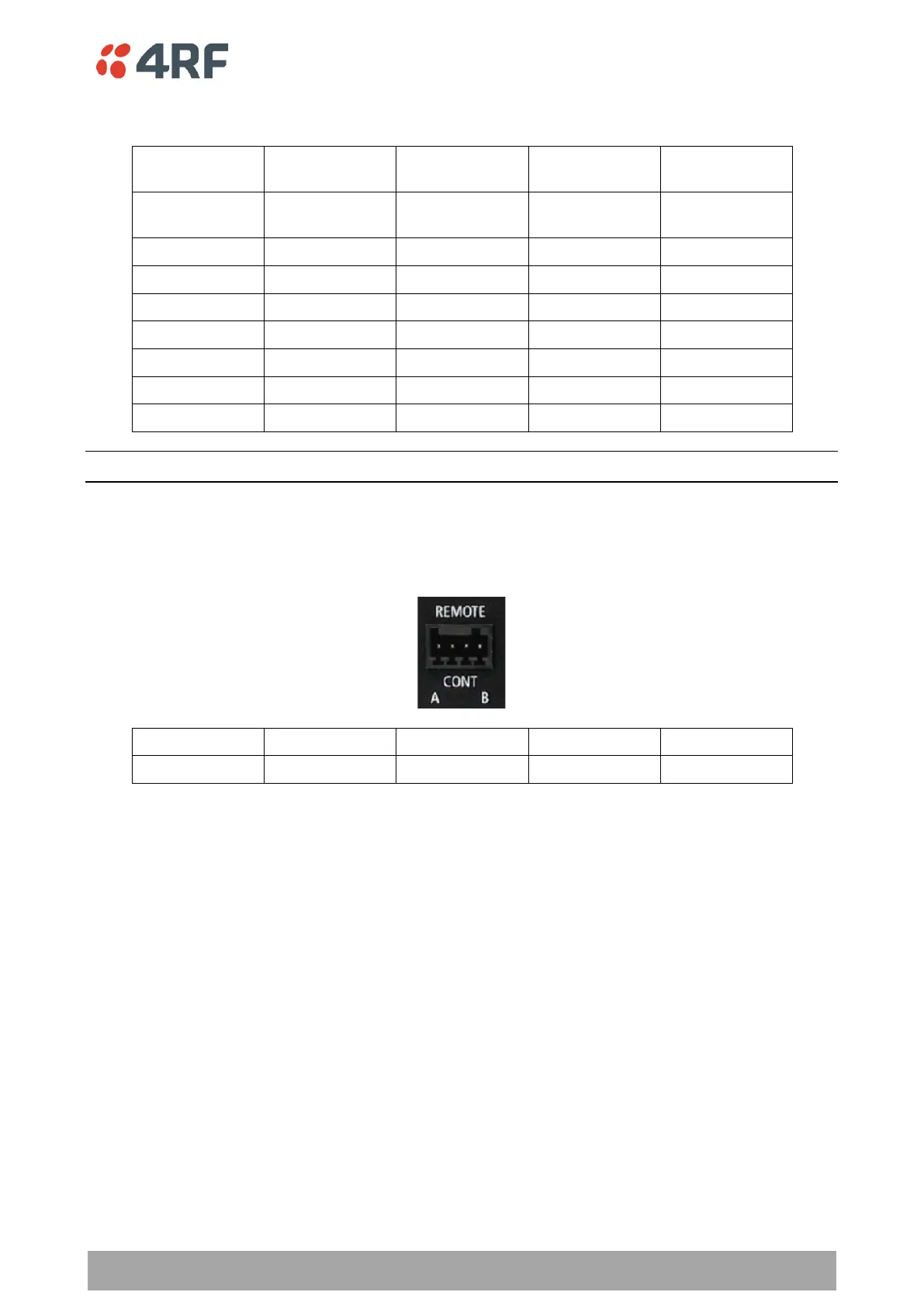

Alarm Interface Connections
RJ45
Pin Number
Pin Function
Direction
TIA-568A Wire
Colour
TIA-568B Wire
Colour
1
Alarm 1 Input /
sleep control
Input
Green / white
Orange/white
2
Ground
Green
Orange
3
Alarm 2 Input
Input
Orange / white
Green/white
4
Ground
Blue
Blue
5
Alarm 1 Output
Output
Blue / white
Blue/white
6
Ground
Orange
Green
7
Alarm 2 Output
Output
Brown / white
Brown/white
8
Ground
Brown
Brown
Note: The TIA-568B wiring is the most commonly used and matches the cables we supply.
Protection Switch Remote Control Connections
1 2 3 4
Pin Number
1
2
3
4
Function
Ground
A radio active
Ground
B radio active
