Standard Radio
Terminal
Terminal > Summary

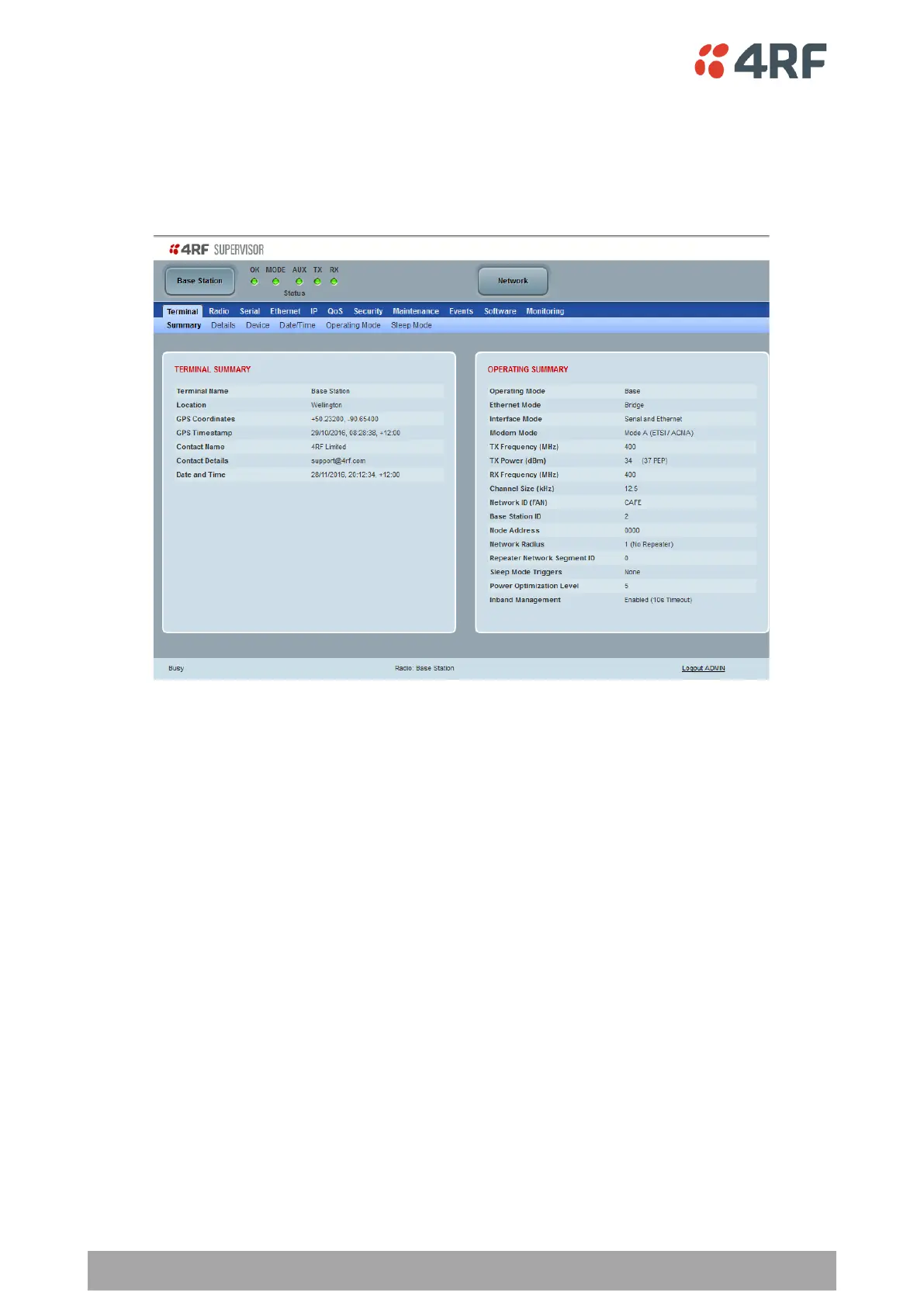

TERMINAL SUMMARY
This page displays the current settings for the Terminal parameters. See ‘Terminal > Details’ on page 109,
‘Terminal > Device’ on page 111 and ‘Terminal > Operating Mode’ on page 119 for setting details.
OPERATING SUMMARY
Operating Mode
This parameter displays the current Operating Mode i.e. if the radio is operating as a base station, repeater
station or remote radio and the network operating mode of Bridge Mode or Router Mode.
Interface Mode
This parameter displays the Interfaces available for traffic on the radio such as Ethernet and Serial. For
Ethernet availability on the radio see ‘Maintenance > Licence’ on page 270.
Modem Mode
This parameter displays the modem mode selected e.g. ETSI / FCC etc.
