DIN Rail Mounting

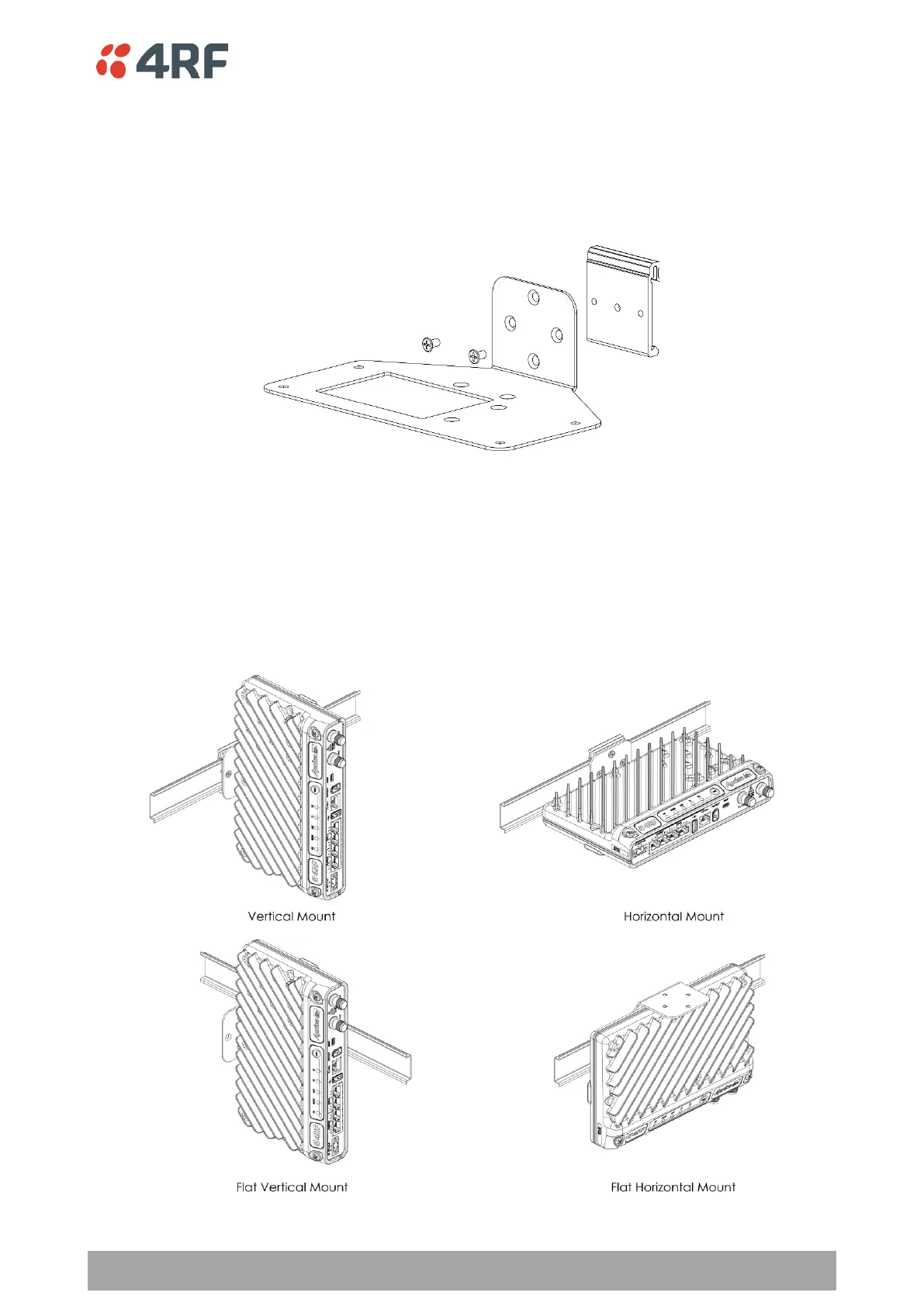

The Aprisa SR+ has an optional accessory part to enable the mounting on a standard DIN rail:
Part Number
Part Description
APSB-MBRK-DIN
4RF SR+ Acc, Mounting, Bracket, DIN Rail
The Aprisa SR+ is mounted into the DIN rail mounting bracket using the four M4 threaded holes in the Aprisa
SR+ enclosure base. Four 8 mm M4 pan pozi machine screws are supplied with the bracket.
The Aprisa SR+ DIN rail mounting bracket can be mounted in four positions on a horizontal DIN rail:
• Vertical Mount (vertical enclosure perpendicular to the mount)
• Horizontal Mount (horizontal enclosure perpendicular to the mount)
• Flat Vertical Mount (vertical enclosure parallel to the mount)
• Flat Horizontal Mount (horizontal enclosure parallel to the mount)
