322 | Managing the Radio
Aprisa SR+ User Manual 1.11.1

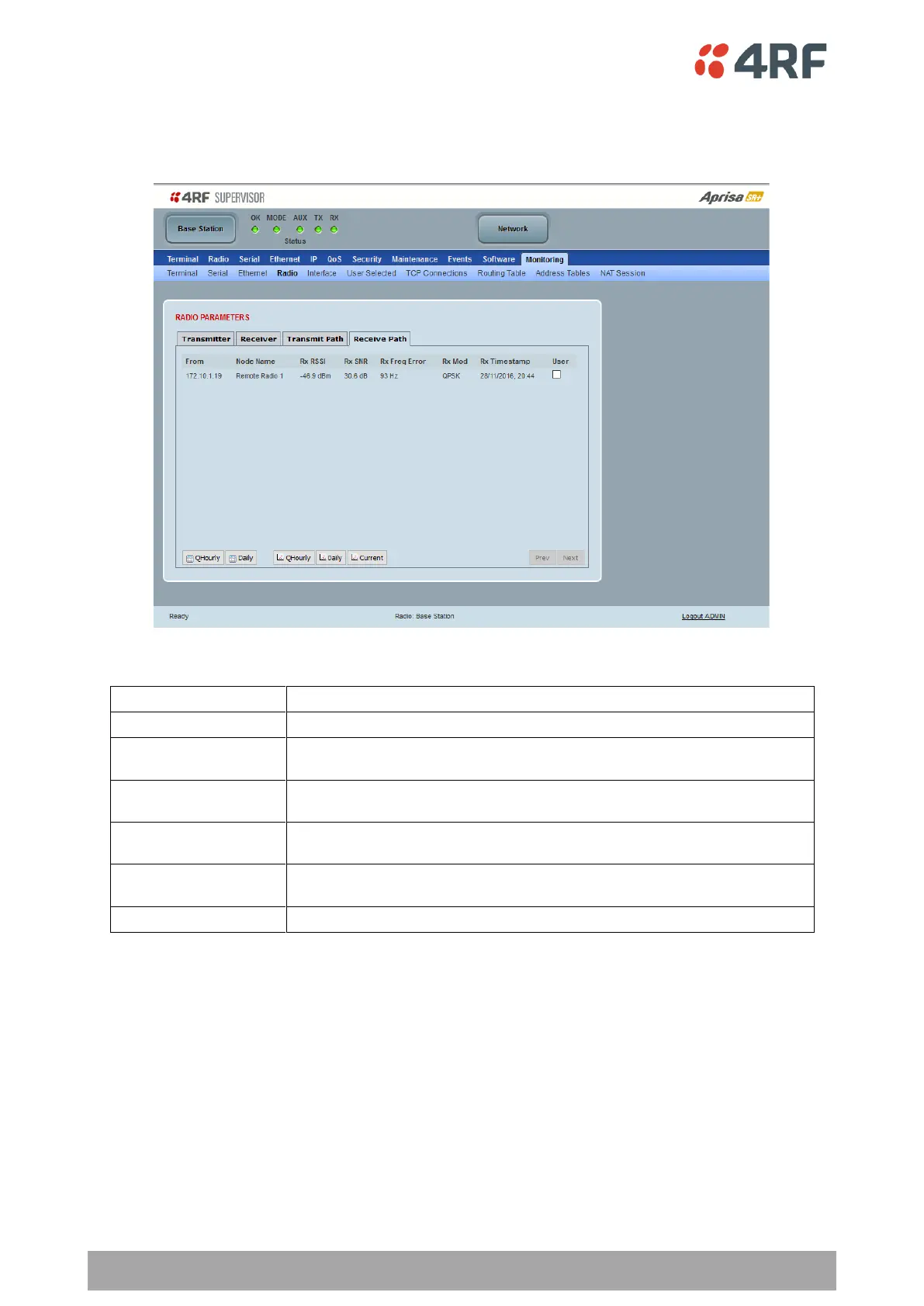

This page displays the current radio RF receive path parameters from single or multiple source radios that
the radio is receiving from.
The results shown are since the page was opened and are updated automatically every 12 seconds.
Receive Path
Result
Function
From
The IP Address and Node Name of the radio receiving data from.
Rx RSSI
The RSSI of the RF signal received from the source radio/s. This parameter
displays the receiver RSSI reading taken from the last data packet received.
Rx SNR
The SNR of the RF signal received from the source radio/s. This parameter
displays the receiver SNR reading taken from the last data packet received.
Rx Freq Error
The frequency difference between this radio’s receiver and the frequency of the
incoming packet rate from the source radio/s.
Rx Mod
The current radio receive modulation being used to communicate with the source
radio/s.
Rx Timestamp
The timestamp of the last received packet from the source radio/s.
Controls
The Next button will display the next page of 8 radios and the Prev button will display the previous page of
8 radios.
