15
VCCX2 Controller Technical Guide

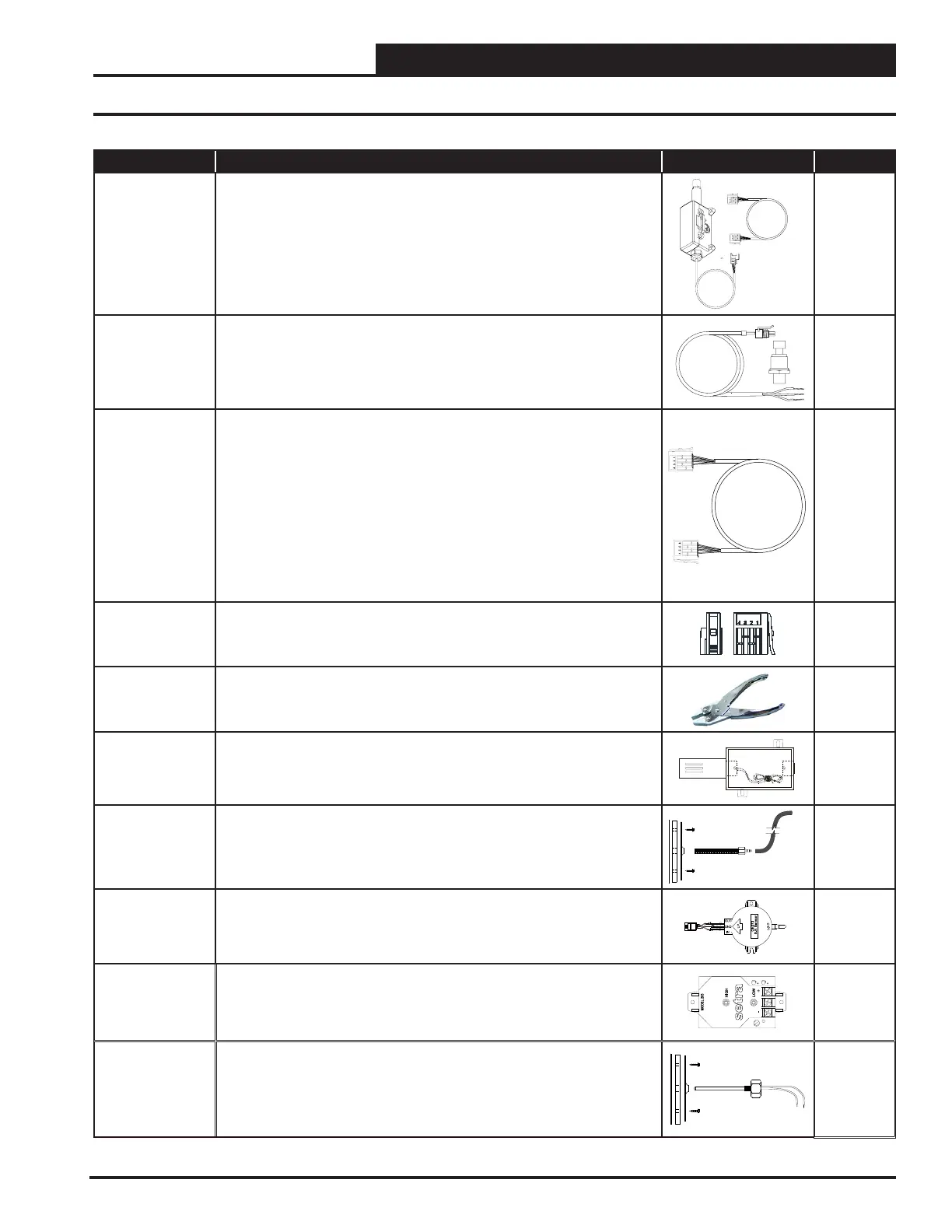

PART NO. PART DESCRIPTION ILLUSTRATION PAGE NO.
ASM01840 E-BUS Return Air Temperature & Humidity Sensor
Used for return air temperature and humidity sensing applications.
Connects to VCCX2 Controller or E-BUS Adapter Hub using EBC E-BUS
cable. Includes: E-BUS Return Air Temperature & Humidity Sensor, mounted
in a weatherproof handy box attached 3-foot EBC E-BUS Cable with jack. A
50-foot EBC E-BUS cable is included to connect to the VCCX2 Controller. If a
longer EBC E-BUS cable is required, it must be ordered separately.
Page 37
ASM02222 Suction Pressure Transducer
Used for suction pressure sensing applications. Connects to the Refrigerant
System Modules. Includes: Suction Pressure Transducer and modular cable
with a modular connector on one end and bare stripped wires on the other
end.
Pages 51,
53, 55
G029440 (1.5F)
G012870 (3F)
G029460 (10F)
G045270 (25F)
G029510 (50F)
GO29530 (75F)
G029450 (100F)
G029470 (150F)
V36590 (250F)
G018870
(SPOOL)
EBC E-BUS Cables
The EBC E-BUS Cables connect to the VCCX2 Controller, VCC-X Expansion
Modules, and E-BUS Sensors. Dierent lengths can be joined together using
an EBC Adapter Hub, if necessary. The EBC E-BUS Cables are available in
1.5, 3, 10, 25, 50, 75, 100, 150, & 250 foot lengths. Includes: EBC E-BUS
Cable Assembly.
The EBC-SPOOL is bulk EBC cable that can be used with the EBC Bulk
Connectors.
Pages
24-60
G018890 EBC Bulk Connectors
Attaches to EBC Spool Cable. Must be crimped using the G034180
EBC Crimp tool. Includes EBC Bulk Connector.
N/A
G034180 EBC Crimp Tool
Crimps the EBC Connectors for use with the EBC Spool Cable. Includes EBC
Crimp Tool.
N/A
G042230 Outdoor Air Temperature Sensor
Used for temperature sensing applications. Includes: 10K Ohm Outside
Air Temperature Sensor, 2 wire, mounted in a weatherproof handy box only.
Page 35
ASM02242 Duct Static Pressure Pick-up Tube
Used with the Duct Static Pressure Sensor for static pressure sensing
applications. Includes: Static Pressure Pick-up Tube with 1 ft. length of FRP
tubing, gasketed mounting bracket, and screws.
Page 38
ASM01640 Duct Static Pressure Sensor
Used for duct static pressure sensing applications. Includes: 0-5″ W.C., 0-5
VDC, Static Pressure Sensor only.
Page 38
ASM01832 Building Static Pressure Sensor
Used for Building Pressure Sensing. Includes: -0.25 to +0.25″ W.C., 0-5 VDC,
24 VAC/VDC supply power Building Pressure Sensor only.
Page 33
G051240 (6”)
G051250 (12”)
Duct Temperature Sensor - 6” Probe
Duct Temperature Sensor - 12" Probe
G051240 = 6″ probe length. G051250 = 12″ probe length. Used for return or
supply air temperature sensing applications. Includes: 10K Ohm Duct
Temperature Sensor, 2 wire only.
Pages
31 & 32
OVERVIEW
Parts and Descriptions
