VCCX2 Controller Technical Guide

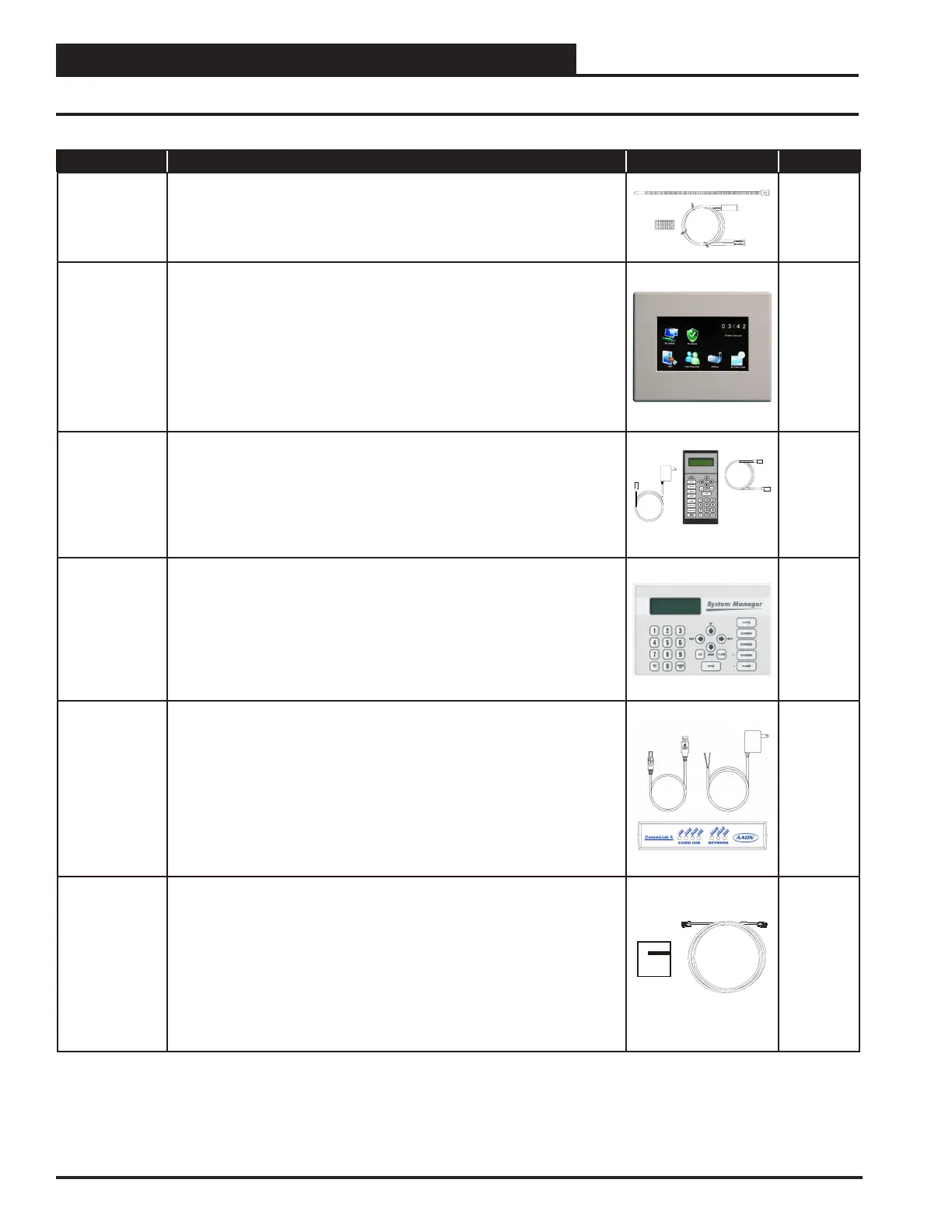

PART NO. PART DESCRIPTION ILLUSTRATION PAGE NO.
ASM01624
Strap-on Temperature Sensor Kit
Includes: 10K Ohm, Type 3, Strap-on Temperature Sensor, 2 wire. Used for
water temperature sensing applications. Includes sensor, thermal mastic, and
plastic mounting strap.
Pages
43 & 44
ASM01900
System Manager Touch Screen - Limited Access
The System Manager Touch Screen - Limited Access (SMTS-L) provides a
direct, graphic-enhanced, menu-driven link. The SMTS-L is an end-user interface
only and allows the end user to view status points, change Space Setpoints,
and view certain alarms of most controllers on the Orion Controls System. The
SMTS-L is equipped with a 4.3” 480 x 272 WQVGA RGB TFT LCD Touch Screen
Display. The System Manager TS-L is furnished with hardware for ush mounting
into hollow drywall or surface mounting on concrete brick or plaster surfaces.
Includes: SMTS-L with 12 ft. long pigtail cable assembly.
See the
System
Manager
TS-L
Technical
Guide
ASM01895
Modular Service Tool SD
Includes: Modular Service Tool, power supply, communication cables, 4 Gigabyte
SD card, and (4) AA batteries. Used to program and monitor all Orion controllers.
See the
VCCX2
Controller
Operator
Interfaces
SD
Technical
Guide
ASM01901
Modular System Manager SD
Includes: Modular System Manager SD with 4 Gigabyte SD card and 12 ft.
long pigtail cable assembly. Used to program and monitor all Orion controllers.
Designed for hollow core wall mounting. When System Manager is to be
mounted on a solid wall (concrete), we recommend you attach the System
Manager to a standard handy box.
See the
VCCX2
Controller
Operator
Interfaces
SD
Technical
Guide
ASM01874
CommLink 5 Communications Interface
The CommLink 5 connects to your control system using a USB computer
connection to provide direct on-site communications with the control system from
a computer with the Prism 2 software installed. For remote communications, see
the IP Module Kit.
Includes: CommLink 5, 6 ft. long USB cable, and 120/24 VAC power supply.
Required on all networked systems or if direct computer or remote computer
connection is required. Connects to your computer’s USB 1.1 or 2.1 port. Prism 2
computer front-end software must be installed on the direct connected or remote
connected computer in order to communicate with your system.
See the
CommLink
5 Technical
Guide
ASM01902
IP Module Kit - Internet/LAN Connection
Used for Internet or Local Area Network communications with the control system.
Field installs by plugging into the CommLink 5 circuit board and provides an
addressable Ethernet connection to the controls system from any computer
connected to your building’s LAN. It can also be congured to allow access to
the control system from the Internet through your LAN if your Ethernet rewall is
congured for this option.
Includes: IP Link module, 10 ft. long Ethernet cable, and installation instructions.
Prism 2 computer front-end software must be installed on the remote computer
in order to dial-up and communicate with the controls system.
See the
IP Module
Technical
Guide
OVERVIEW
Parts and Descriptions
