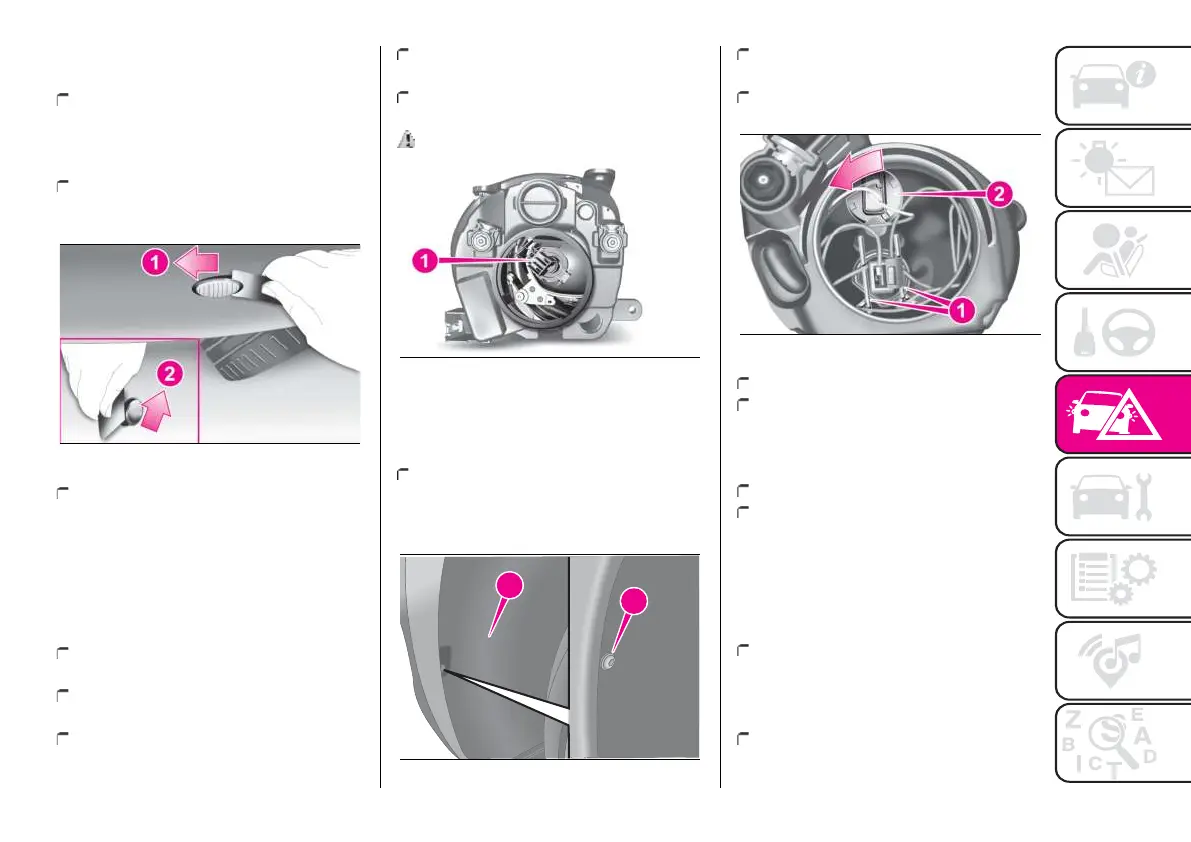

To replace the bulb, proceed as
follows:
apply leverage in the point shown
by the arrows (1) and (2) to compress
the fixing springs and extract the light
fig. 105;
turn the bulb holder anticlockwise,
extract the press-fitted bulb and
replace it;
105AB0A0310C
refit the bulb holderin the lens, then
position the light, ensuring that the
fastening clip clicksinto place.
DIPPEDBEAM
HEADLIGHTS
To replace the bulb, proceed as
follows:
turn the protectioncap (2) fig. 103
anticlockwise andremove it;
disconnect the connector (1) fig. 106
and release the bulb holder;
extract the bulb and replace it;
refit the bulb in its housing and
reconnect the connector;
refit the protection cap in its housing
and turn clockwise.
130)
106AB0A0311C
MAINBEAMHEADLIGHTS
To replace the bulb, proceed as
follows:
steer the wheel fully inwards, undo
the screws (1) fig. 107 and move the
inner wheel arch plastic cover (2) aside
to access the bulb;
2
1
107AB0A0471
remove the rubber cap on the bulb
holder;
release the two bulb holding clips (1)
fig. 108;
108AB0A0093C
extract the bulb and replace it;
fit the new bulb, making the outline
of the metallic partcoincide with the
grooves on the reflector, then reattach
the bulb holding clips;
refit the rubber cap;
refit the inner cover on the wheel
arch and tighten the screws.
SIDELIGHTS/DAYTIME
RUNNINGLIGHTS
To replace the bulb, proceed as
follows:
steer the wheel fully inwards, undo
the screws (1) fig. 107 and move the
inner wheel arch plastic cover (2) aside
to access the bulb;
remove the rubber cap on the bulb
holder;
