Abarth 595 - SERVICING AND MAINTENANCE

IN AN EMERGENCY
112
turn the bulb holder (2) fig. 108
anticlockwise andextract it;
remove the pressure-fitted bulb and
replace it;
refit the bulb holder(2) by turning it
clockwise and making sure that it locks
correctly;
refit the rubber cap;
refit the inner cover on the wheel
arch and tighten the screws.
FOGLIGHTS
(where provided)
For replacing these bulbs, contact an
Abarth Dealership.

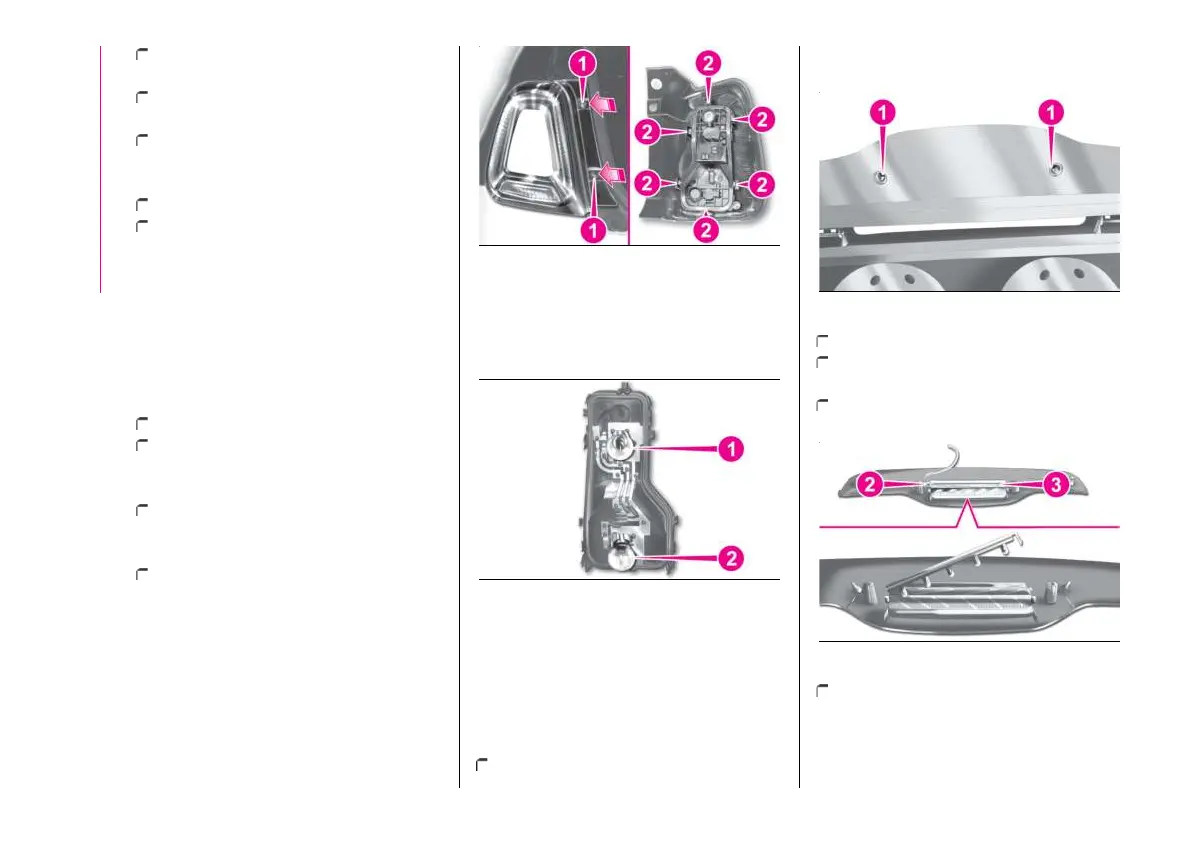

REARLIGHTCLUSTERS
To replace the bulbproceed as follows:
open the tailgate;
unscrew the twofastening screws
(1) fig. 109 and extract the light cluster
axially without rotating it;
remove the bulb holder from its
housing releasingit from the locking
tabs (2);
extract the bulbs by pushing them
slightly and turningthem anticlockwise.
109AB0A0313C
The bulbs are arranged as follows
fig. 110:
1: side / brake light;
2: direction indicators.
110AB0A0314C
REVERSINGLIGHT/REAR
FOGLIGHT
For bulb replacement, contact an
Abarth Dealership.
THIRDBRAKELIGHTS
To replace the bulbproceed as follows:
remove the two guard caps and
unscrew the twofastening screws (1)
fig. 111;
111AB0A0097C
remove the assembly;
disconnect the electrical connector
(2) fig. 112;
press the retainingdevice (3) fig. 112
and open the bulbholder;
112AB0A0098C
remove the press-fitted bulb to be
replaced and replace it;
