Product Overview
A43/A44 10 2CMC48001M0201
User Manual Revision: C
1.1 Meter Parts

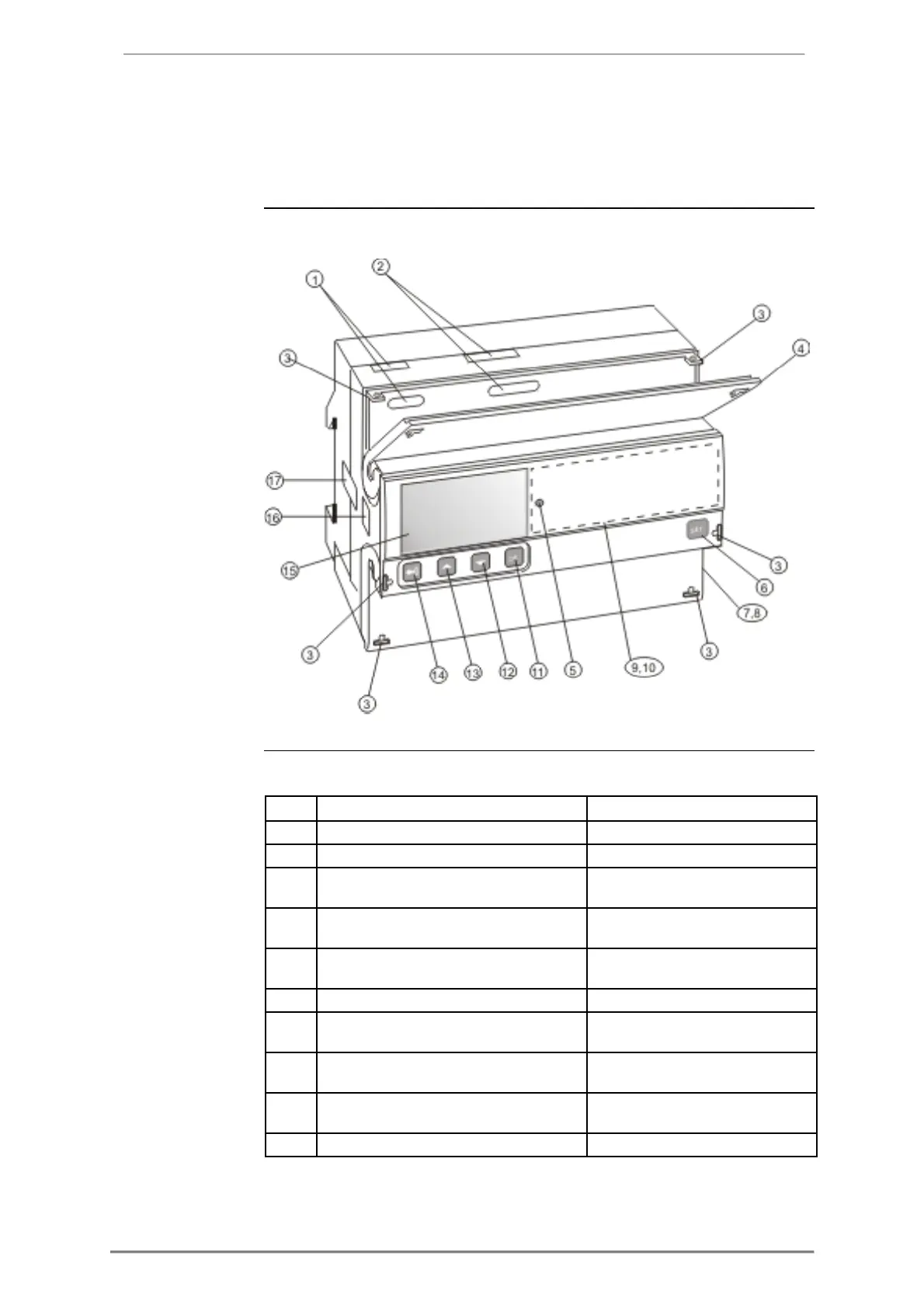

Illustration The parts of the meter are shown in the illustration below:
Parts description The following table describes the parts of the meter:
Item
Description
Comments
1
Terminal for communication connection
2
Terminal for input/output connection
3
Sealing point.
Seal thread can be used to seal the
cover.
4
Sealable terminal cover
Protective cover with printed wiring
diagram on the inside.
5
LED
Flashes in proportion to the energy
measured.
6
Set button
Enter configuration mode
7
Sealable terminal cover
Protective cover with printed wiring
diagram on the inside
8
Terminal block
Terminal for all voltages and
currents
9
Sealable cover
To protect the LCD and seal the set
button
10
Product data
Contains data about the meter type
