2.4.3 Transformer connected meters with voltage transformer

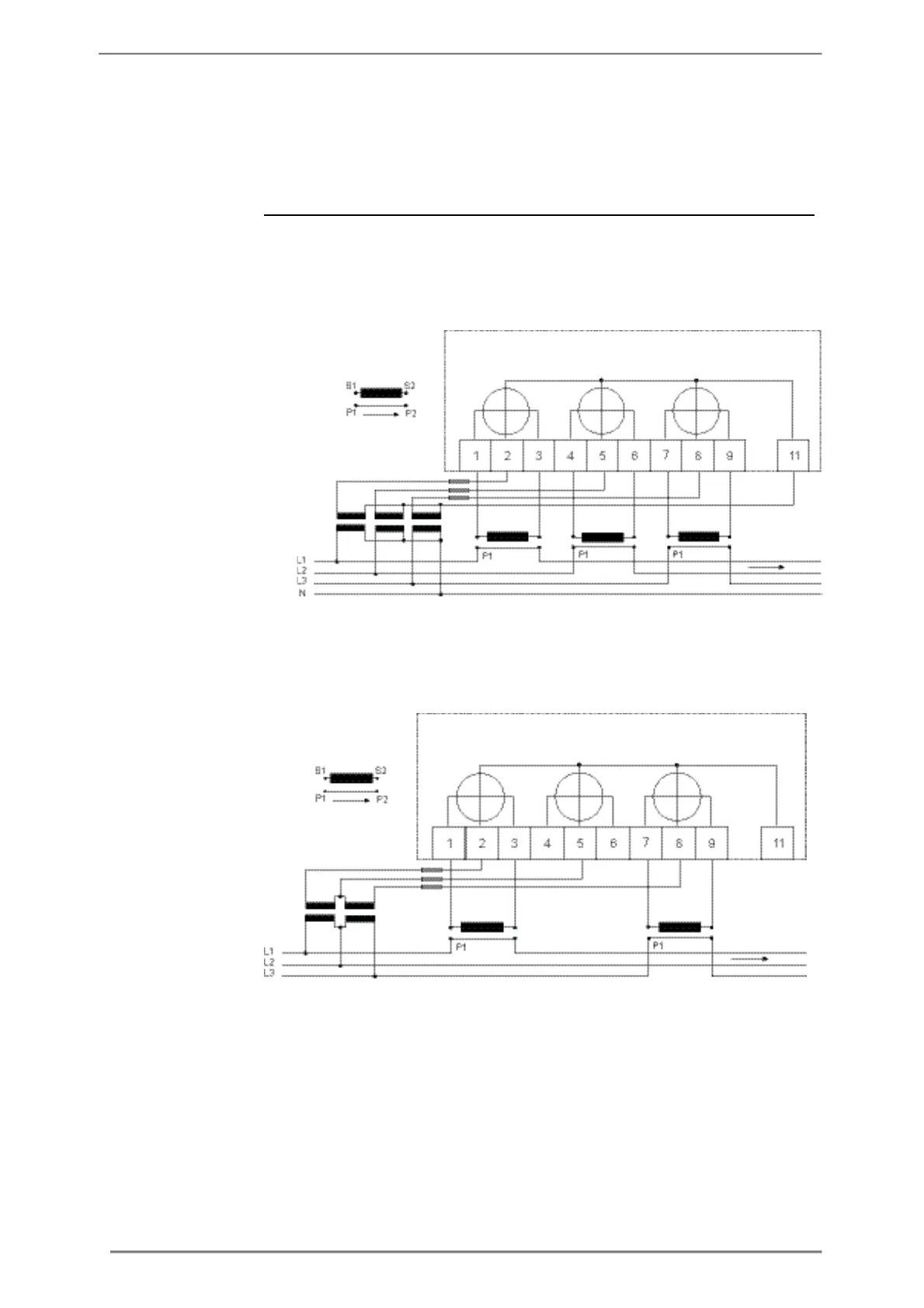

4-wire connection The following diagram shows a 4-wire connection of a transformer connected 3-
phase meter with voltage transformers:
3-wire connection The following diagram shows a 3-wire connection of a transformer connected 3-
phase meter with voltage transformers:
