3.1 Display
The display contains two main views, the Default menu and the Main menu. Use
the Exit button to toggle between the views. In both views a number status
icons are displayed in the upper part of the display. These icons are explained in
table 3:1 below. In the same manner the bottom part of the display has an explan-
atory text to describe what is shown or highlighted at the moment.

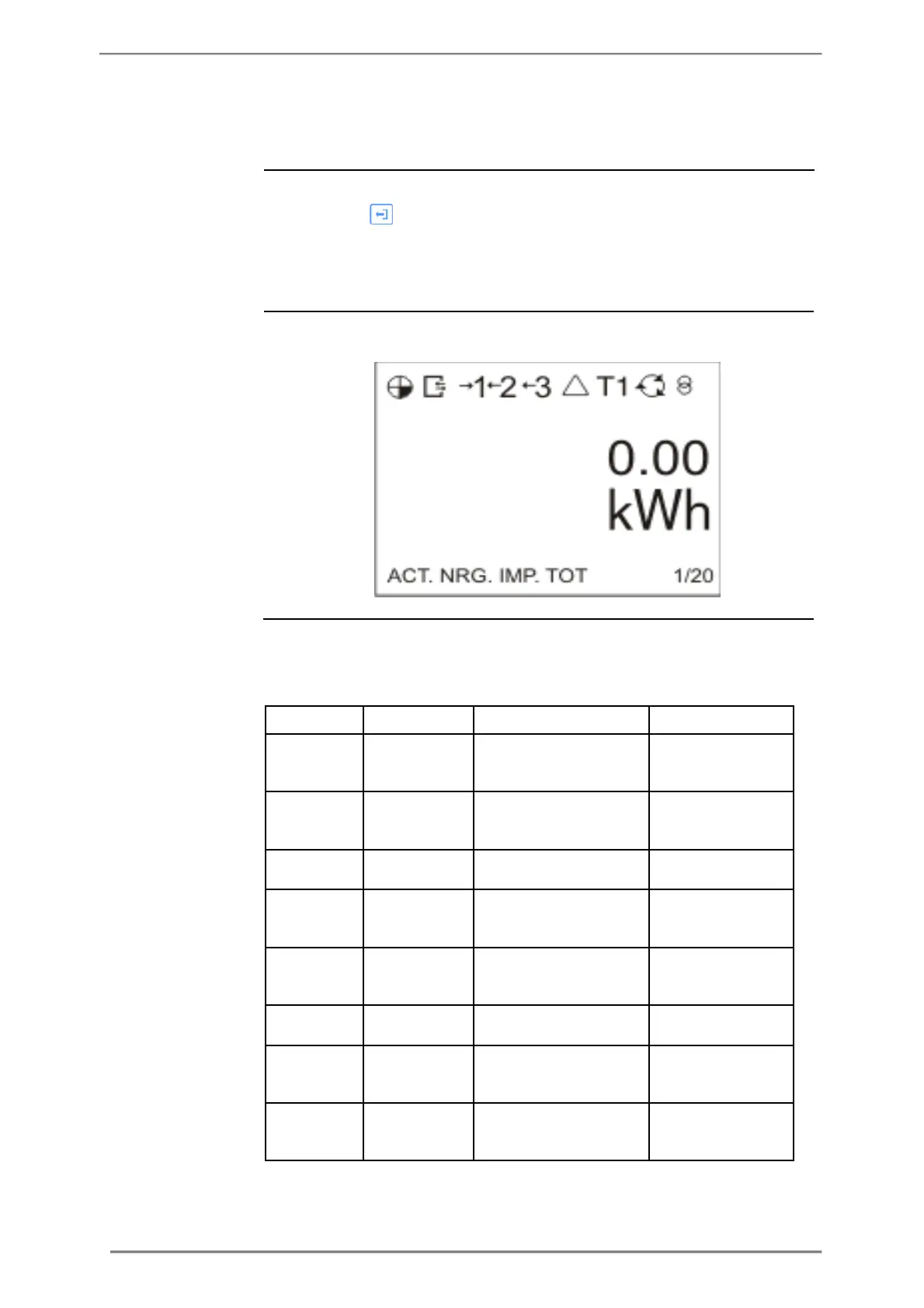

The following image shows an example of the layout of the Default menu:
Energy values The table below explains the content of 25 available pages in the Default menu.
Depending on meter type, all or a subset of the pages can be present.
To Next Page
