User Interface
2CMC48001M0201 29 A43/A44
Revision: C User Manual

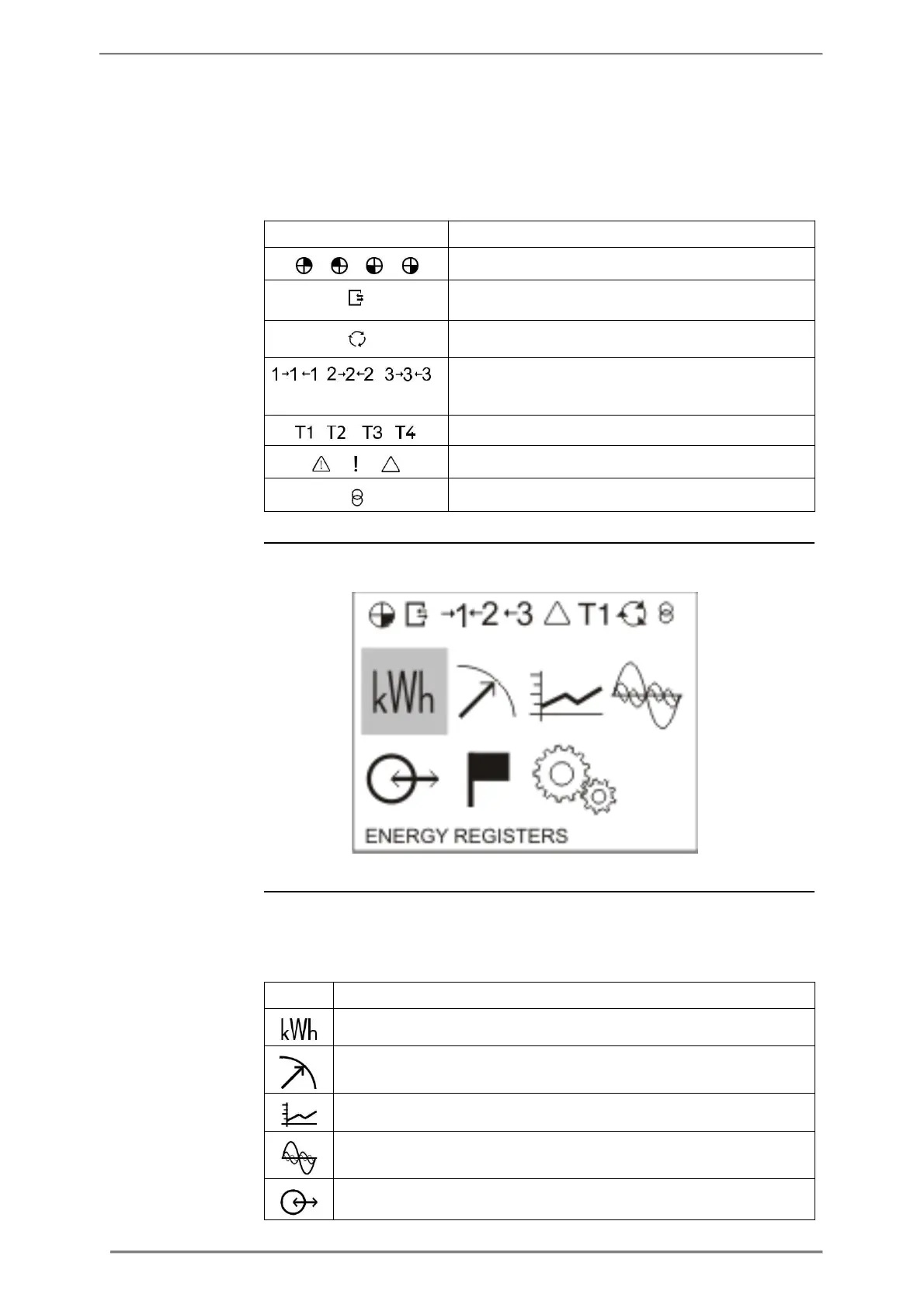

Status Icons
Main menu
The status icons that can be seen the display are explained in the following table.
Table: 3:1
Communication is in progress. The meter is either
send-ing or receiving information
Rotates when metering in progress, that is when at least
one of the phase currents is above the starting current.
Arrows indicate direction of current per phase. Arrow left =
export, arrow right = import. A digit without arrow indicates
that the current is below the starting current.on that phase
Active tariff
Error, warning, note
Transformer ratio (only on transformer rated meters)
The following image shows an example of the layout of the main menu:
Main menu icons Depending on the meter type all or a subset of the following icons may be avail-
able in the display:
Icon Explanation
Energy registers
Instantaneous values
Stored values
Harmonics
I/O
