EN - Quick installation and start-up guide 15

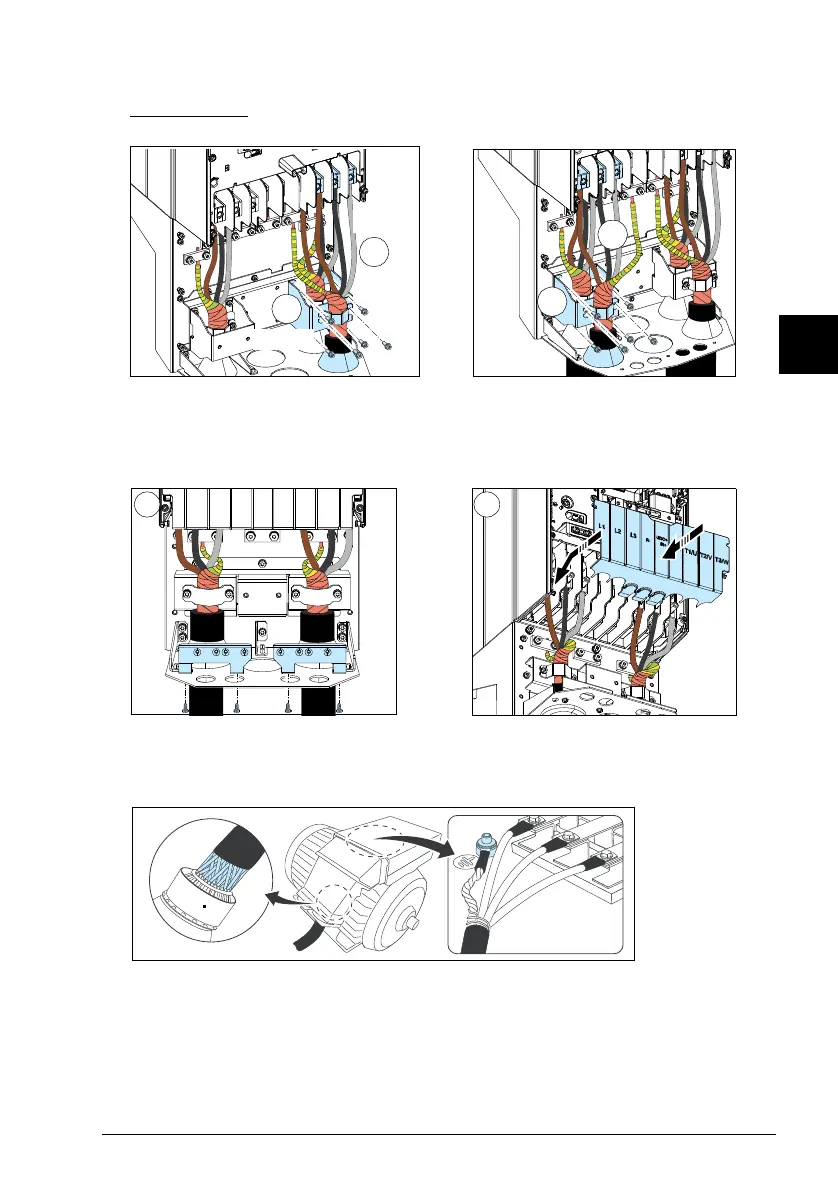

15. Frame R8 only: If you installed parallel cables, install the second grounding shelf
for the parallel power cables (15a). Repeat steps 11...14 (15b).
16. Install the grounding shelf of the control cables.
17. Reinstall the shroud on the power terminals.
18. Secure the cables outside the unit mechanically.
19. Ground the motor cable shield at the motor end. For minimum radio frequency
interference, ground the motor cable shield 360 degrees at the lead-through of
the motor terminal box.
