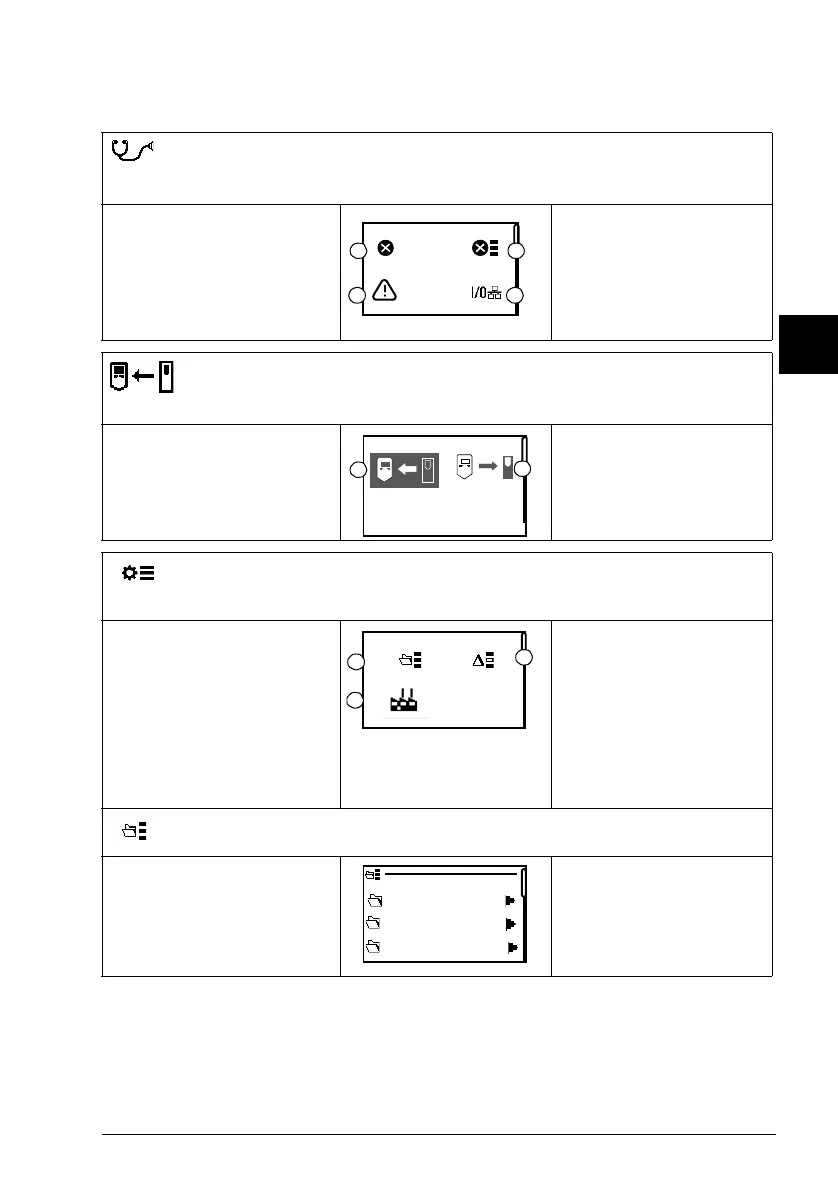

Start up and use 25
EN
ES
PL
TR
ZH
Diagnostics
Displays the active faults and warnings and how to fix and reset.
For information about fault and warning codes, see Diagnostics on page 57.
1) Active Fault - Displays active
faults.
3) Active Warnings - Displays
active warnings.
2) Fault History - Lists the
fault history.
4) I/O status - I/O settings.
Backup data
Restore and Backup data between drive and panel.
1) Backup from the drive to the
control panel.
2) Restore the back up from
the panel to the drive.
A progress view appears
during the backup.
Parameter settings
Contains the complete parameter list and modified parameter list.See Parameters List
on page 29.
1) Complete parameter list.
3) Restore to default parameter
values (96.06 [8]).
2) Modified parameters list.
Complete parameter list
Contains the complete parameter list. See Parameters List on page 29.
1) Complete parameter list.
10010
0
2
4
1
3
1
2
1
2
3
01
02
03
