EN - Quick installation and start-up guide 7

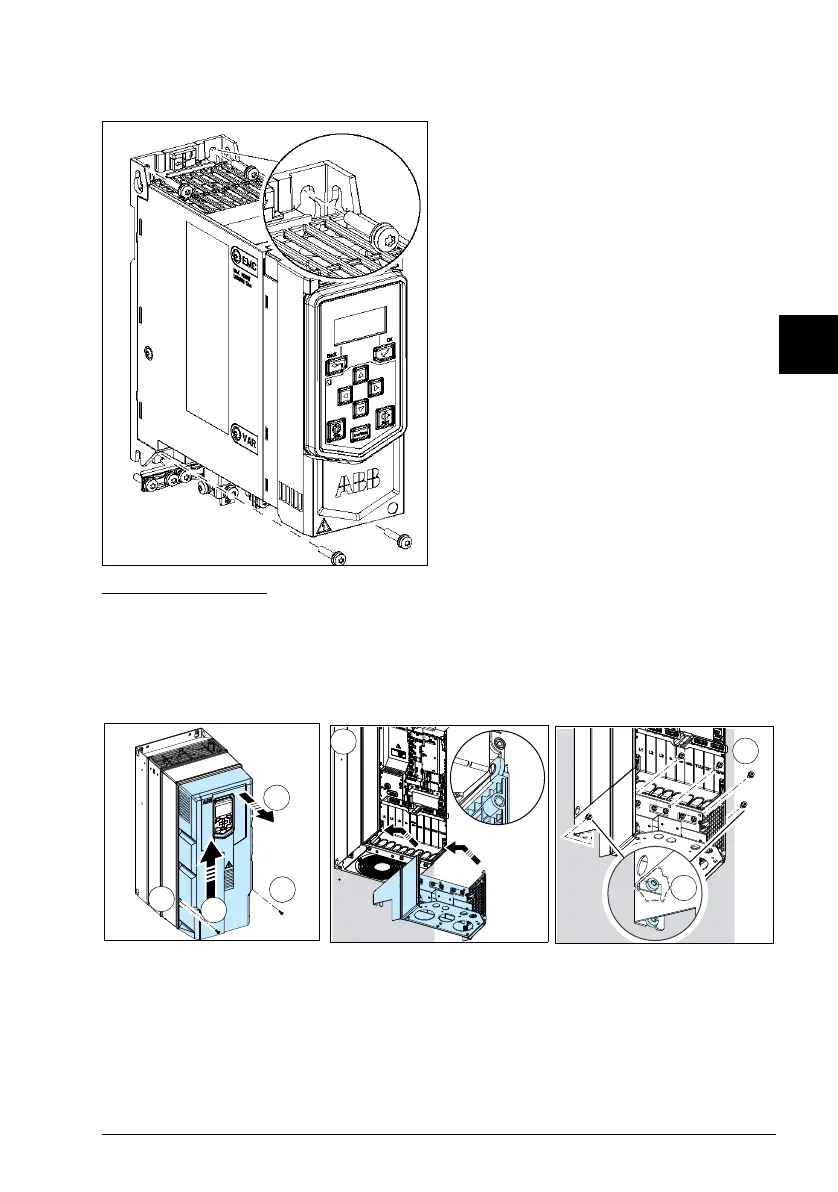

See the example below of the mounting screws in frame R0.
Frames R5...R8 only
:
6. Remove the front cover with fastening screws (6a), move the cover to the top
side (6b) and then up (6c).
7. Attach the cable entry box to the drive frame.
8. Tighten the box screws: two at the top and four at the bottom.
