ABB ACS880 PCP User Manual

Parameters 161
mA Milliamperes. 10
14.45 AI2 unit selection (Visible when 14.01 Module 1 type = FIO-11 or FAIO-0 1)
Selects the unit for readings and settings related to analog
input AI2.
Note: This setting must match the corresponding hardware
setting on the I/O extension module (see the manual of the
I/O extension module). The hardware setting is shown by
parameter 14.44 AI2 HW switch pos. I/O module reboot
either by cycling the power or through parameter 96.08
Control board boot is required to validate any changes in
the hardware settings.
mA
VVolts. 2
mA Milliamperes. 10
14.46 AI2 filter gain (Visible when 14.01 Module 1 type = FIO-11 or FAIO-01)
Selects a hardware filtering time for AI2.
See also parameter 14.47 AI2 filter time.
1 ms
No filtering No filtering. 0
125 us 125 microseconds. 1
250 us 250 microseconds. 2
500 us 500 microseconds. 3
1 ms 1 millisecond. 4
2 ms 2 milliseconds. 5
4 ms 4 milliseconds. 6
7.9375 ms 7.9375 milliseconds. 7
14.47 AI2 filter time (Visible when 14.01 Module 1 type = FIO-11 or FAIO-01)
Defines the filter time constant for analog input AI2.
Note: The signal is also filtered due to the signal interface
hardware. See parameter 14.46 AI2 filter gain.
0.100 s
0.000…30.000 s Filter time constant. 1000 = 1 s

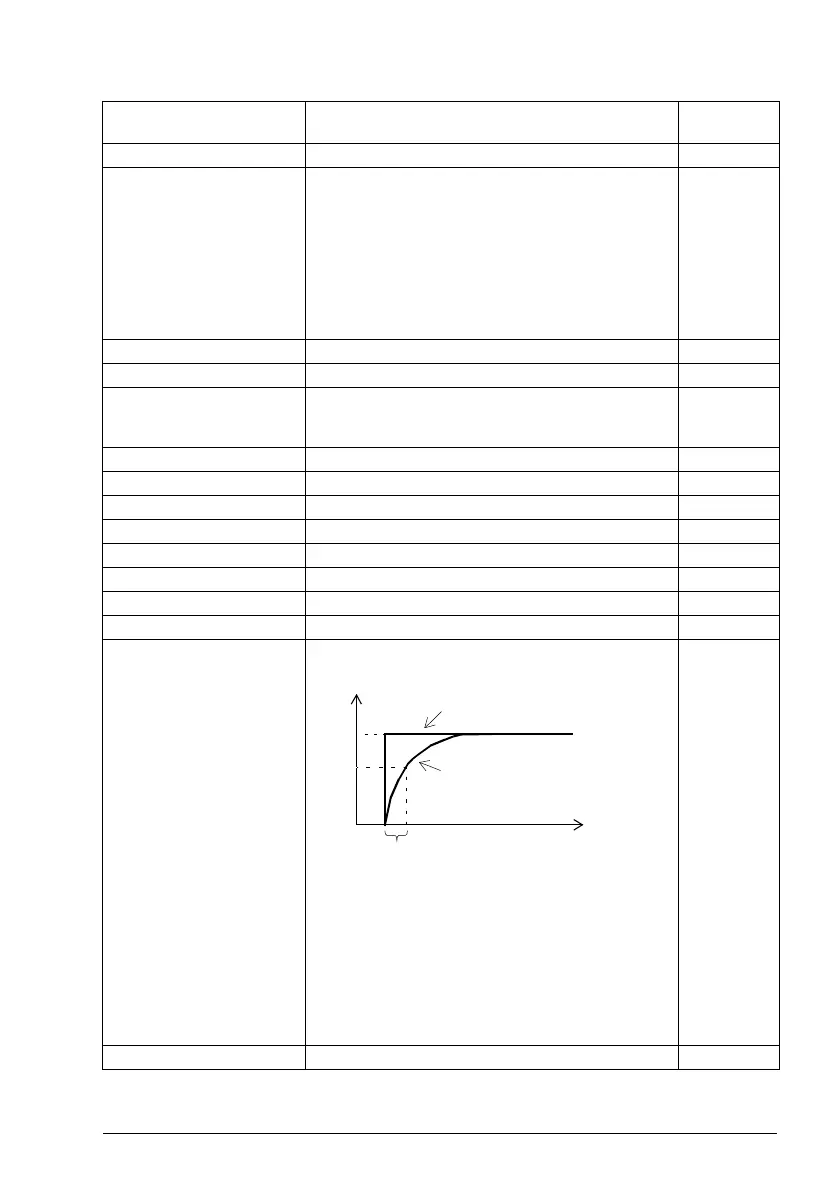

No. Name/Value Description Def/
FbEq16
63
%
100
T
t
O = I × (1 - e
-t/T
)
I = filter input (step)
O = filter output
t = time
T = filter time constant
Unfiltered signal
Filtered signal

ABB ACS880 PCP Specifications

General

Output current	Up to 5200 A
Input voltage	380-690 V
Power range	5600 kW
Cooling method	Air or liquid
Protection class	IP21, IP54
Communication interfaces	Ethernet, CANopen
