Electrical installation 33
It is recommended to use a PROFIBUS-approved D-SUB 9
connector. These connectors have a built-in termination network
and inductors for station capacitance compensation.

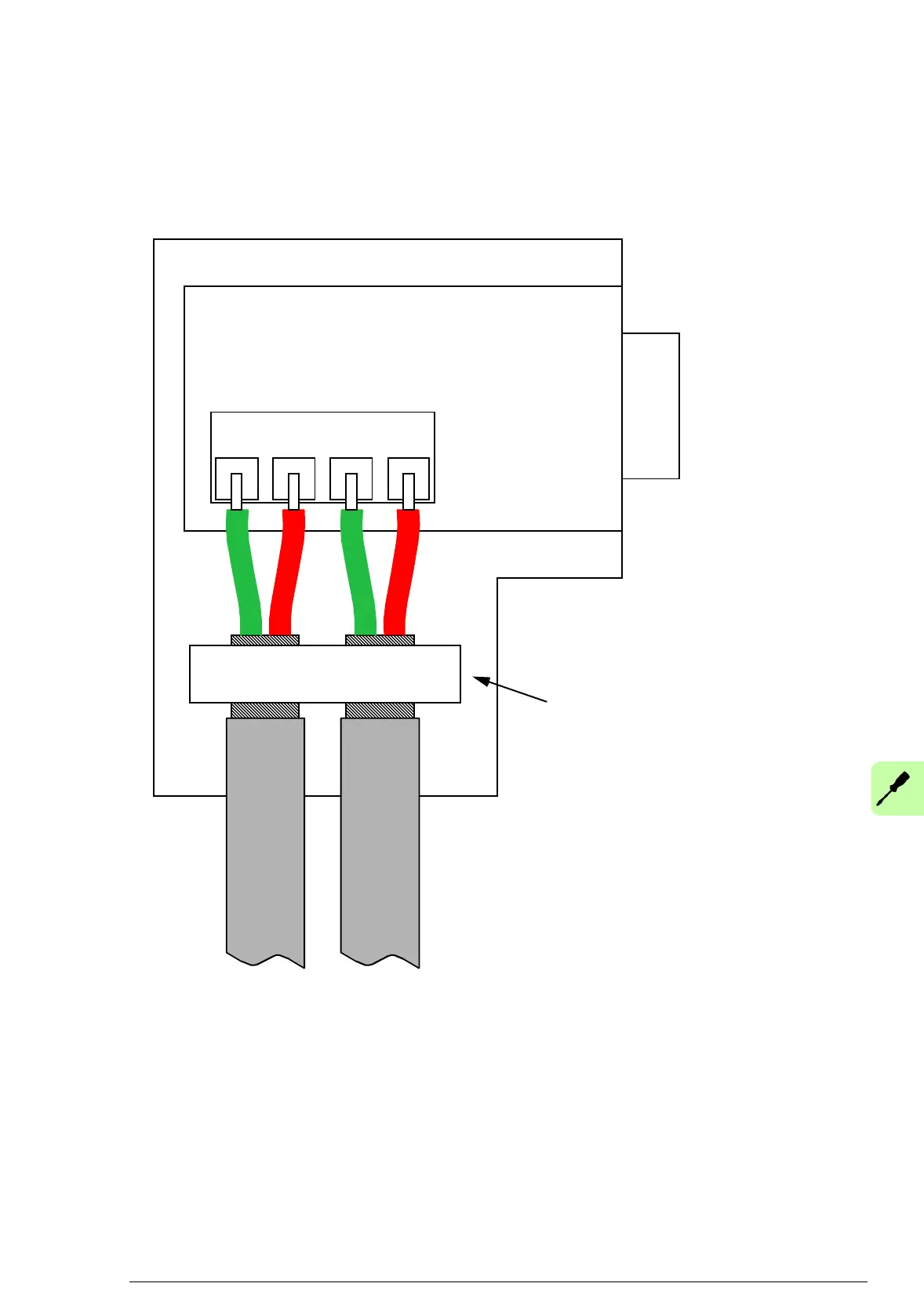

Connect the cable to the D-SUB connector as follows:
1A 1B 2A 2B
Red
Red
Green
Green
OUT
IN
Grounding (earthing) clamp/
Strain relief
