NoteAction
xx0600003028

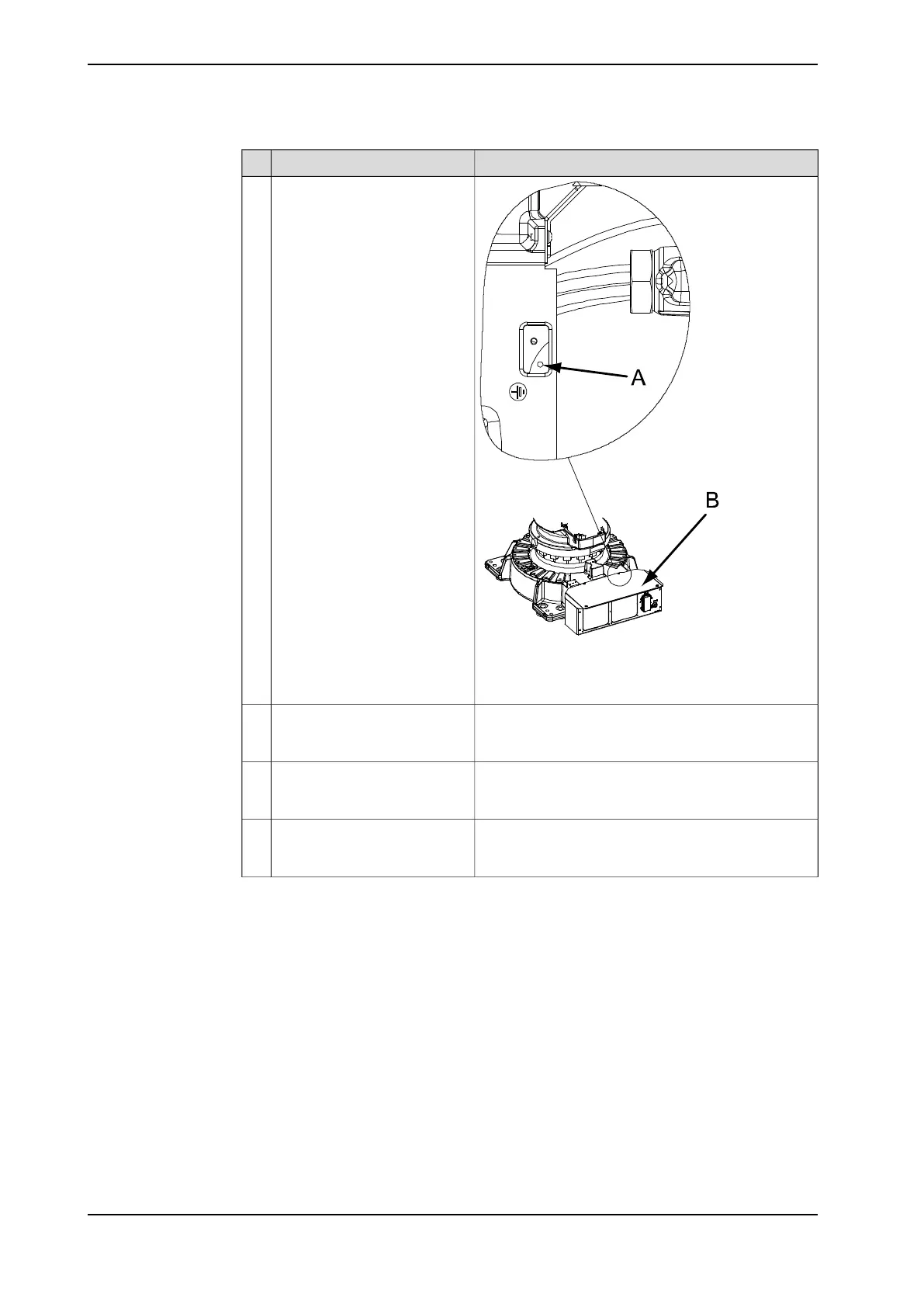

Disconnect the earth cable.5
• A: Earth (placed beneath the top cover)
• B: Top cover, connection box
Shown in the figure Location of cable harness, axes
1-2 on page 185.
Disconnect connectors R1.MP
and R1.SMB on the connection
plate, base.
6
Shown in the figure Location of cable harness, axes
1-2 on page 185.
Disconnect all connectors at
motors 1 R2.MP1, R2.FB1 and
2 R2.MP2, R2.FB2.
7
Shown in the figure Location of cable harness, axes
1-2 on page 185.
Remove the metal clamps on
the frame, securing the cable
harness.
8
Continues on next page
188 Product manual - IRB 6620
3HAC027151-001 Revision: T
© Copyright 2006-2018 ABB. All rights reserved.
4 Repair
4.3.1 Replacement of cable harness, lower end (axes 1-2)
Continued
