NoteArt. no.Equipment
These procedures include refer-
ences to the tools required.
Other tools and procedures may
be required. See references to
these procedures in the step-by-
step instructions below.
Inspecting the oil level in axis-1 gearbox
Use this procedure to inspect the oil level in the axis-1 gearbox.
NoteAction
WARNING
Handling gearbox oil involves several safety risks.
Before proceeding, please read the safety informa-
tion in the section Safety risks during work with
gearbox lubricants (oil or grease) on page 38.
1
DANGER
Turn off all:
• electric power supply
• hydraulic pressure supply
• air pressure supply
to the robot, before entering the robot working area.
2
This is a precaution to reduce the
temperature dependency of the
measurement.
Make sure that the oil temperature is +25°C ±10°C.3
Shown in figure Location of gear-
box on page 114.
Open the oil plug, inspection.4

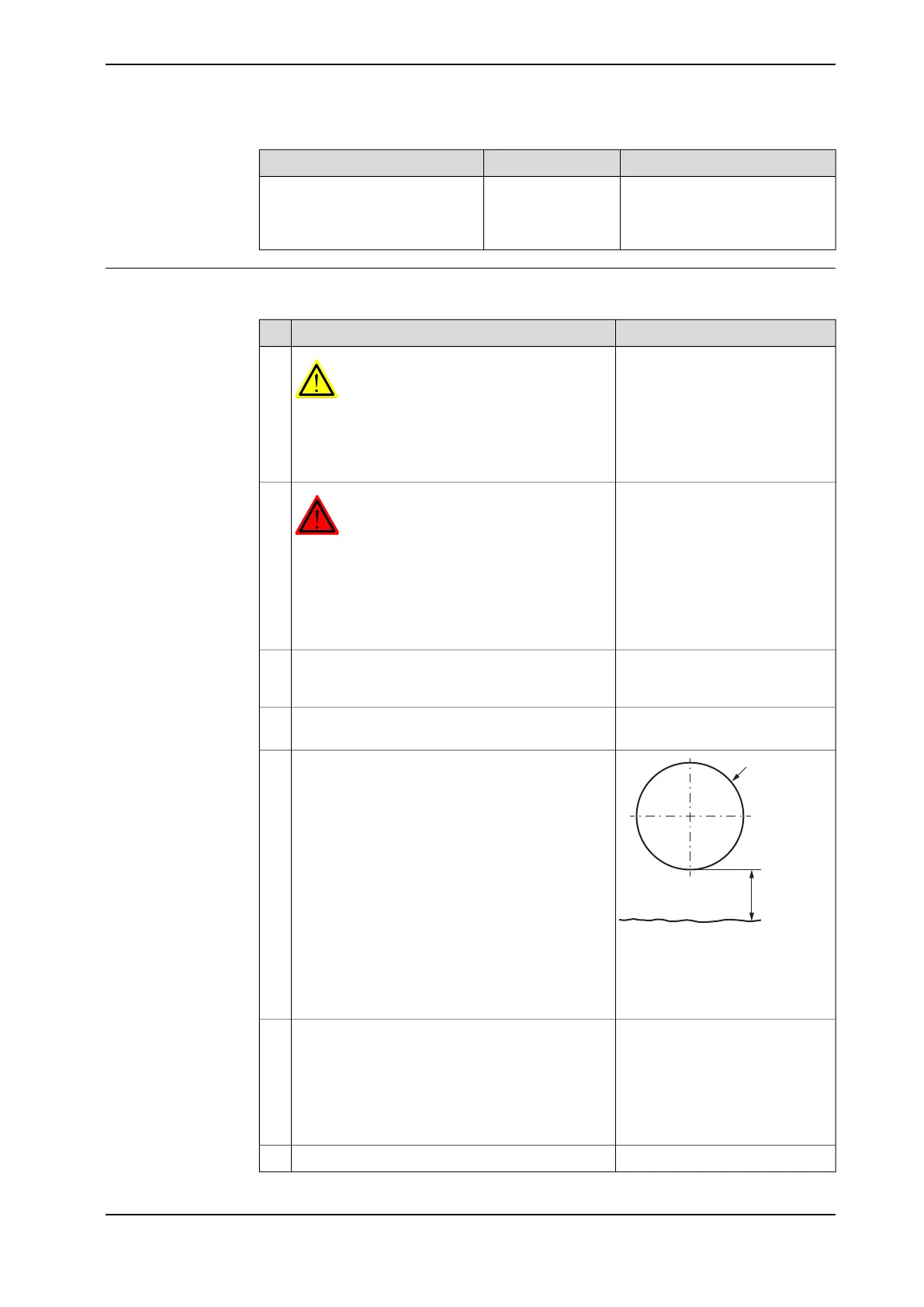

xx1400002785
A Oil plug hole
B Required oil level
C Gearbox oil
Measure the oil level.
Required oil level: max. 10 mm below the oil plug
hole.
5
Where to find type of oil and total
amount is detailed in Type of lub-
rication in gearboxes on page 144.
Adjust the oil level, if required.6
Further information about how to
fill with oil is found in section
Changing oil, axis-1 gearbox on
page 146.
Tightening torque:24 NmRefit the oil plug.7
Product manual - IRB 6660 115
3HAC028197-001 Revision: S
© Copyright 2007-2018 ABB. All rights reserved.
3 Maintenance
3.3.1 Inspecting the oil level in axis-1 gearbox
Continued
