ABB IRB 6660 - Changing Oil, Axis-4 Gearbox

3.4.4 Changing oil, axis-4 gearbox
Location of gearbox

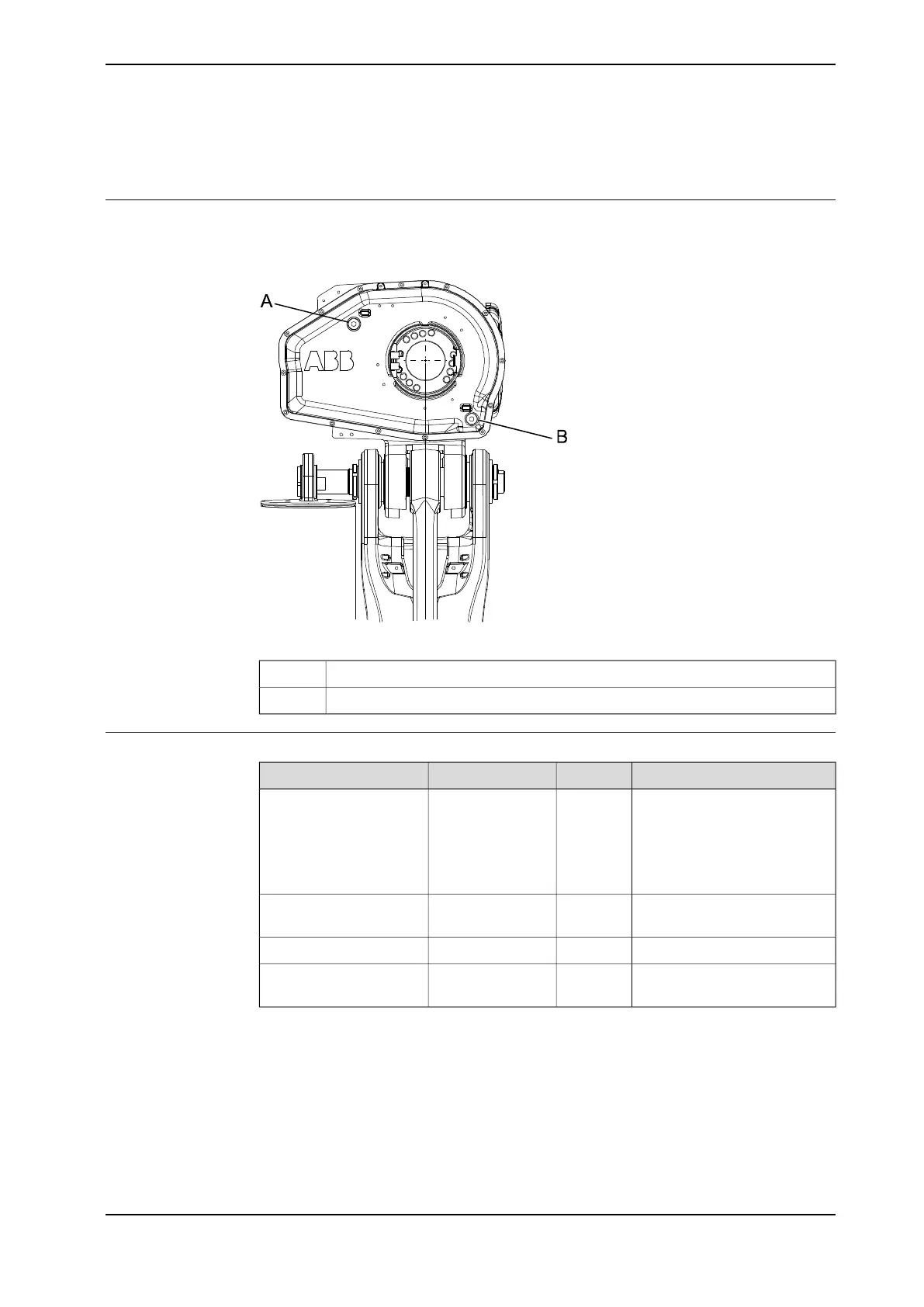

The axis 4 gearbox is located in the rearmost part of the upper arm as shown in
the figure below.
xx0700000018
Oil plug, fillingA
Oil plug, drainingB
Required equipment
NoteAmountArt. no.Equipment, etc.
See Type
and
amount of
oil in gear-
boxes on
page 144.
See Type and
amount of oil in
gearboxes on
page 144.
Lubricating oil
Content is defined in section
Special tools on page 382.
3HAC021745-001Oil exchange equipment
Capacity: 9,000 ml.-Oil collecting vessel
Content is defined in section
Standard tools on page 381.
-Standard toolkit
Continues on next page
Product manual - IRB 6660 153
3HAC028197-001 Revision: S
© Copyright 2007-2018 ABB. All rights reserved.
3 Maintenance
3.4.4 Changing oil, axis-4 gearbox
