2.3.9 Installation of chip protection - IRB 6660 - 205/1.9
Note
This section is only applicable to the robot variant IRB 6660 - 205/1.9.
Location of chip protection

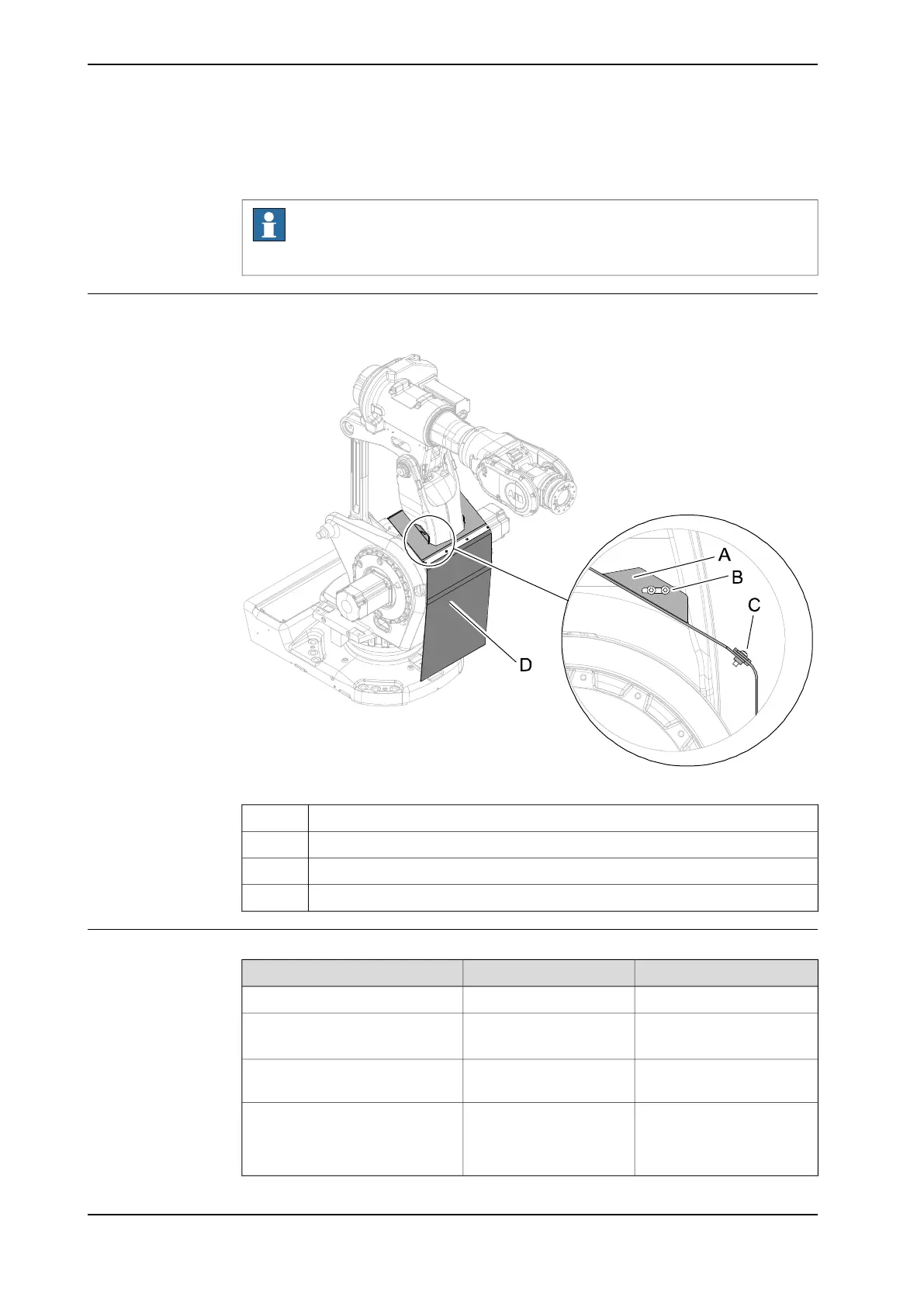

The chip protection is installed on the lower arm as shown in the figure below.
xx0700000630
BracketA
Attachment screws M6x16 quality 8.8-A2F (2 pcs per side)B
Attachment screws M6x16 quality 8.8-A2F (4 pcs)C
ProtectionD
Required equipment
NoteArt. no.Equipment
3HAC030124-001Chip protection
Loctite 243-Locking liquid
For locking screws.
Content is defined in section
Standard tools on page 381.
Standard toolkit
These procedures include
references to the tools re-
quired.
Other tools and procedures may
be required. See references to
these procedures in the step-by-
step instructions below.
Continues on next page
88 Product manual - IRB 6660
3HAC028197-001 Revision: S
