3.3.3 Inspecting the oil level in axis-4 gearbox

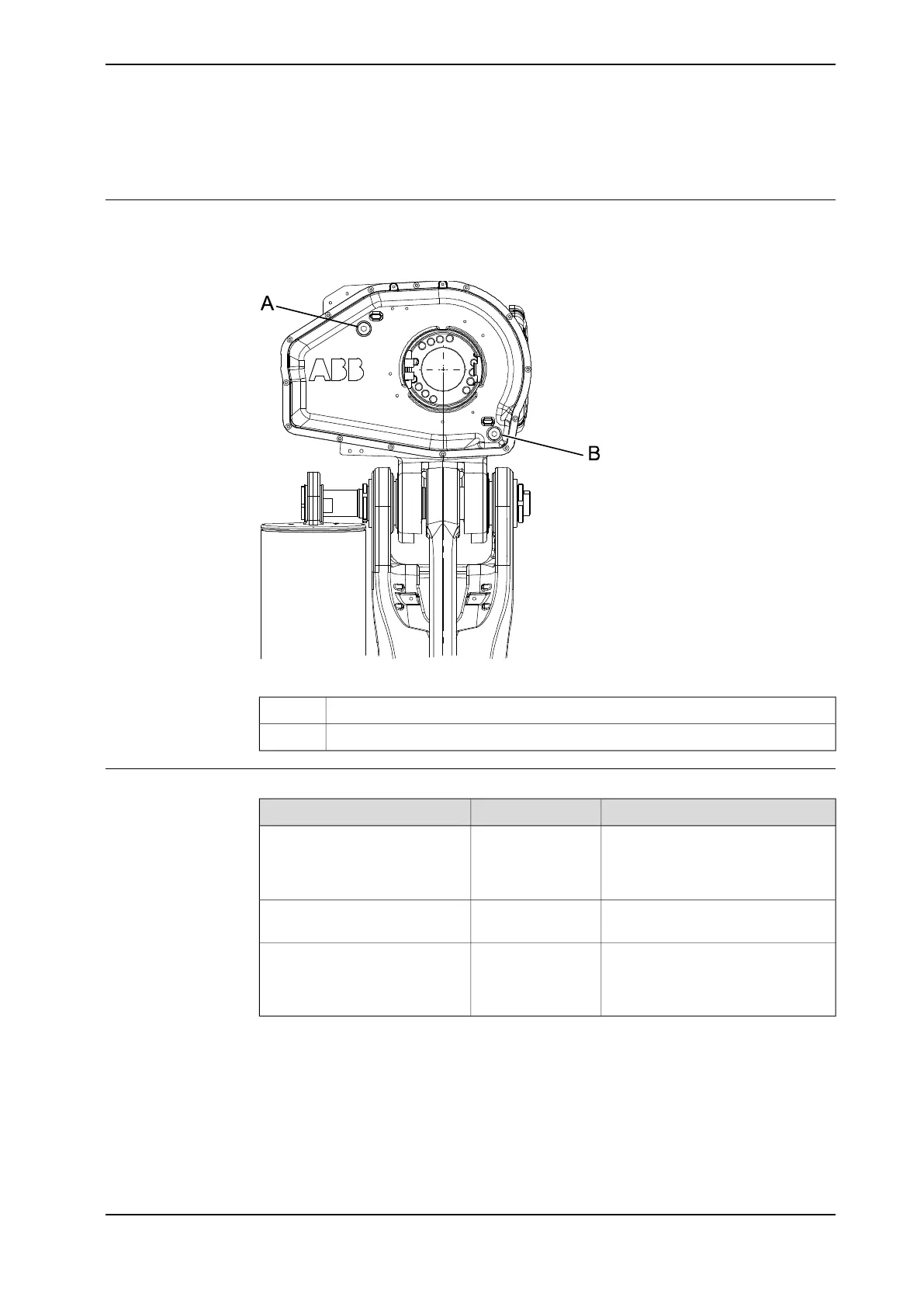

Location of gearbox
The axis-4 gearbox is located in the rear part of the upper arm as shown in the
figure.
xx0700000018
Oil plug, filling and inspectionA
Oil plug, drainingB
Required equipment
NoteArt. no.Equipment, etc.
See Type and
amount of oil in
gearboxes on
page 144.
Lubricating oil
Content is defined in section Stand-
ard tools on page 381.
-Standard toolkit
These procedures include refer-
ences to the tools required.
Other tools and procedures may
be required. See references to
these procedures in the step-by-
step instructions below.
Continues on next page
Product manual - IRB 6660 119
3HAC028197-001 Revision: S
© Copyright 2007-2018 ABB. All rights reserved.
3 Maintenance
3.3.3 Inspecting the oil level in axis-4 gearbox
