3.3.10 Inspecting the additional mechanical stops
Location of mechanical stops

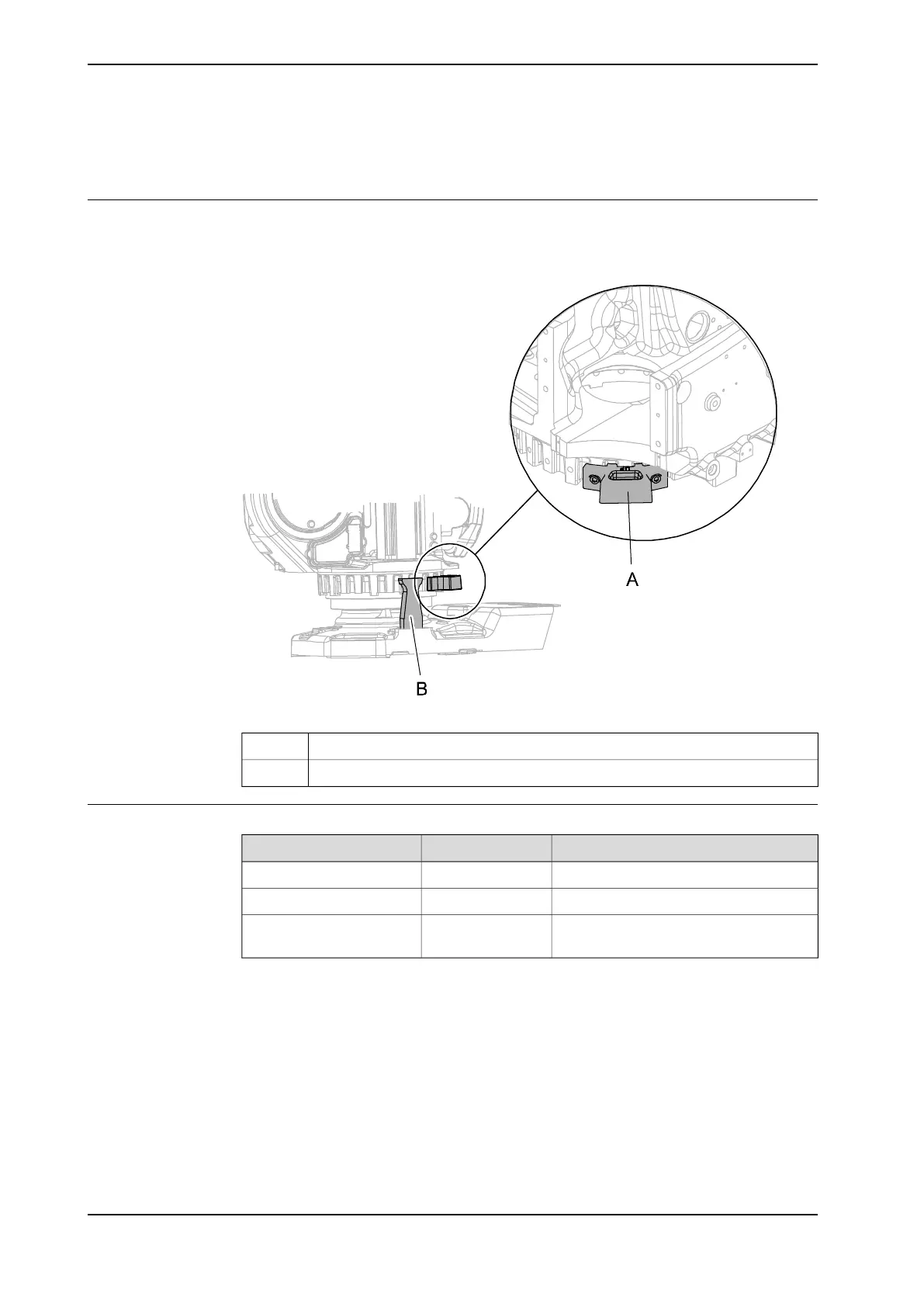

This figure shows the location of the additional mechanical stop on axis 1.
Additional mechanical stops are not provided for axis 2 and 3.
xx0300000049
Additional mechanical stopA
Stop pinB
Required equipment
NoteArticle numberEquipment etc.
Limits the robot working range by 7.5°.3HAC11076-1Mechanical stop axis 1
Limits the robot working range by 15°.3HAC11076-2Mechanical stop axis 1
Content is defined in section Standard
tools on page 381.
-Standard toolkit
Continues on next page
