3.3.12 Inspecting, signal lamp (option)

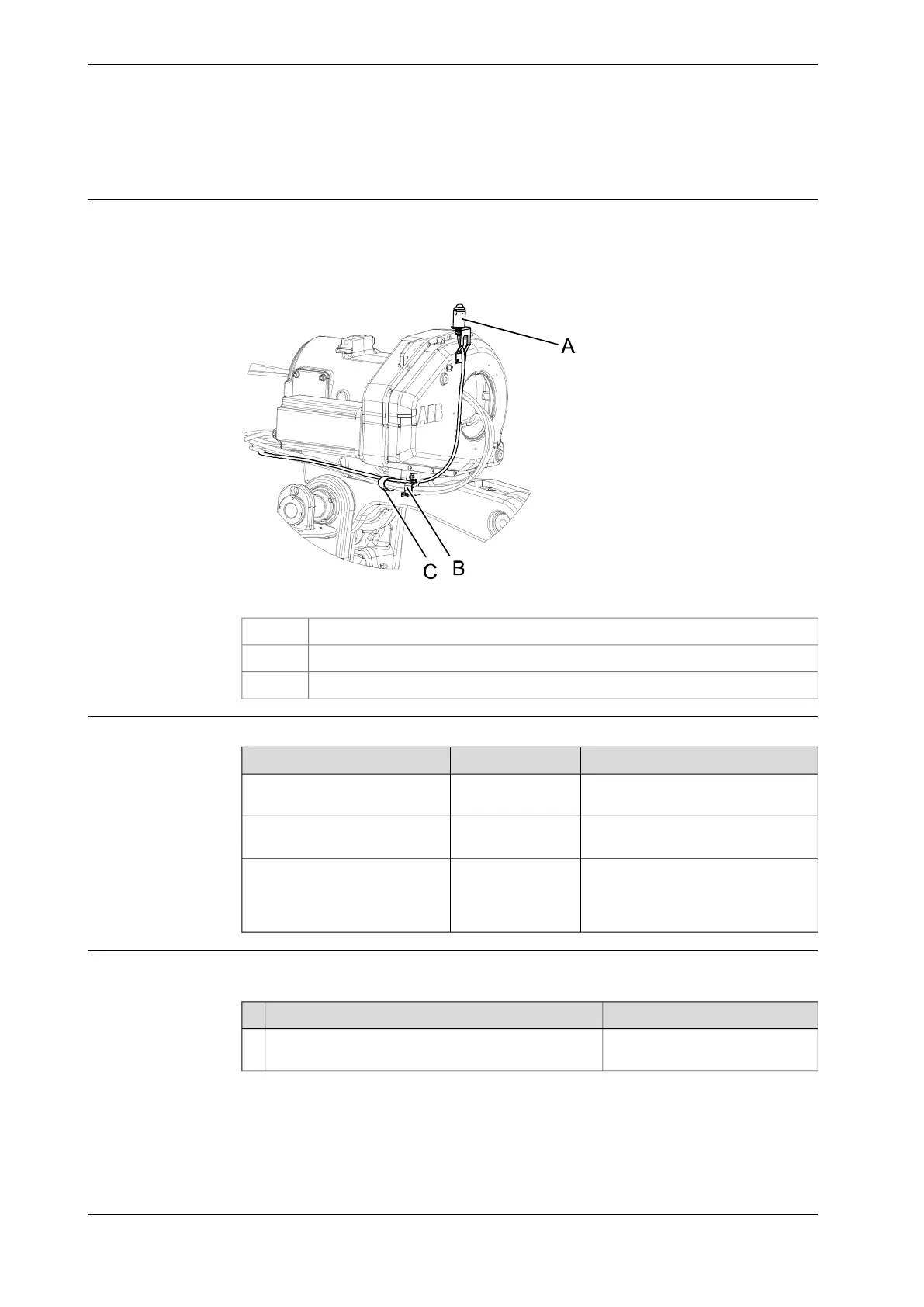

Location of signal lamp
The signal lamp is located as shown in figure below. Note that the position can
differ depending on how the customer harness for axis 4-6 is mounted. See
assembly drawing on the current harness for alternative positioning.
xx0700000056
Signal lampA
Metal clampB
Cable strap, outdoorC
Required equipment
NoteArt. no.Equipment, etc.
To be replaced in case of detected
damage.
3HAC028196-001Signal lamp
Content is defined in section Stand-
ard tools on page 381.
-Standard toolkit
These procedures include references
to the tools required.
Other tools and procedures may
be required. See references to
these procedures in the step-by-
step instructions below.
Inspecting, signal lamp
Use this procedure to inspect the function of the signal lamp.
NoteAction
Check that signal lamp is lit when motors are put in
operation ("MOTORS ON").
1
Continues on next page
142 Product manual - IRB 6660
3HAC028197-001 Revision: S
© Copyright 2007-2018 ABB. All rights reserved.
3 Maintenance
3.3.12 Inspecting, signal lamp (option)
