3.5 Lubrication activities
3.5.1 Lubricating balancing device bearings and piston rod
Note
This section is not applicable to the robot variant IRB 6660-205/1.9
Overview
This procedure details how to lubricate bearings and piston rod of the balancing
device.
Location of bearing and piston rod

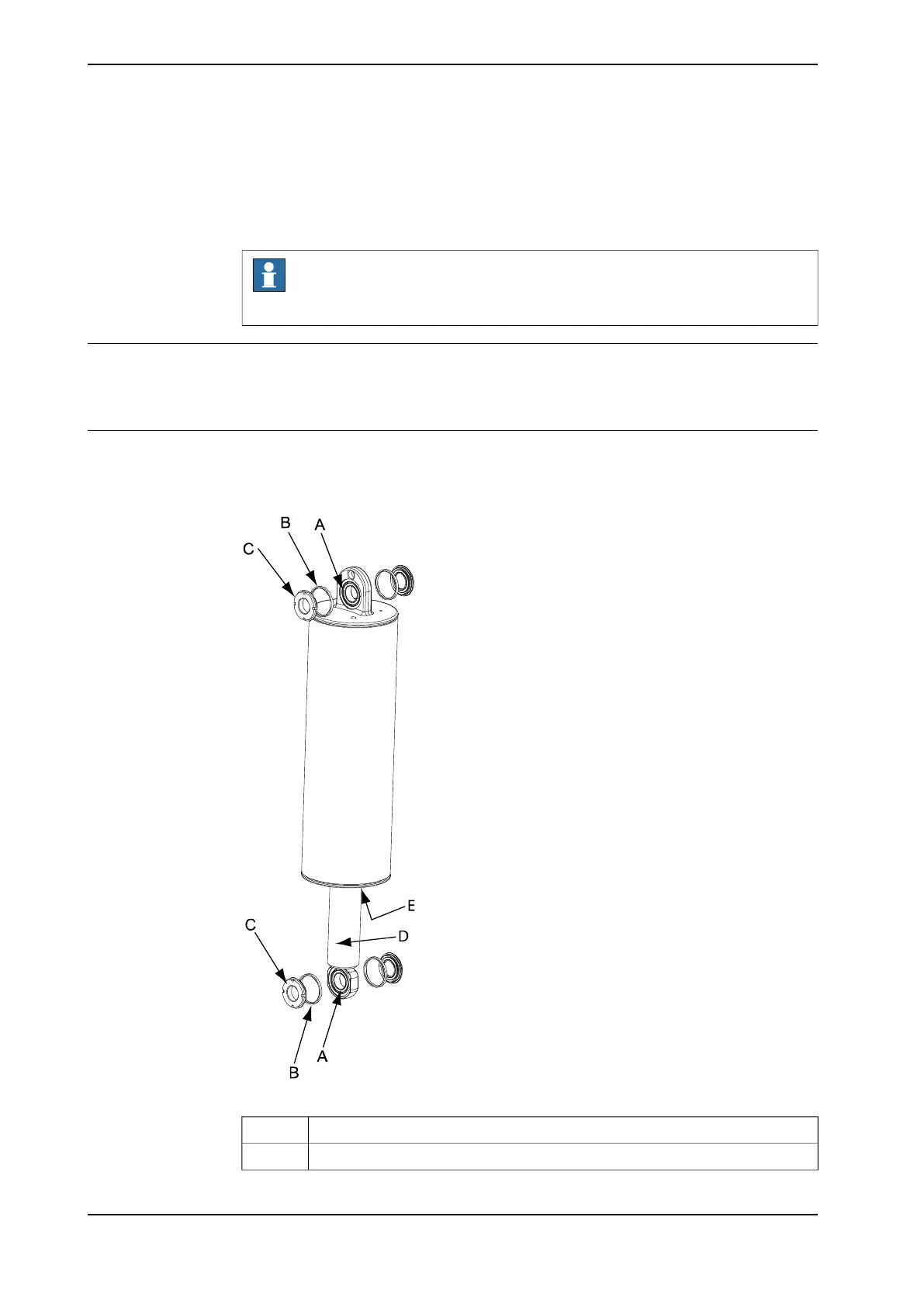

This figure shows the location of bearings and piston rod.
Note! Balancing device must be fitted on robot when lubricating bearings.
xx0500002489
Ear (bearing located inside)A
Support washerB
Continues on next page
166 Product manual - IRB 6660
3HAC028197-001 Revision: S
