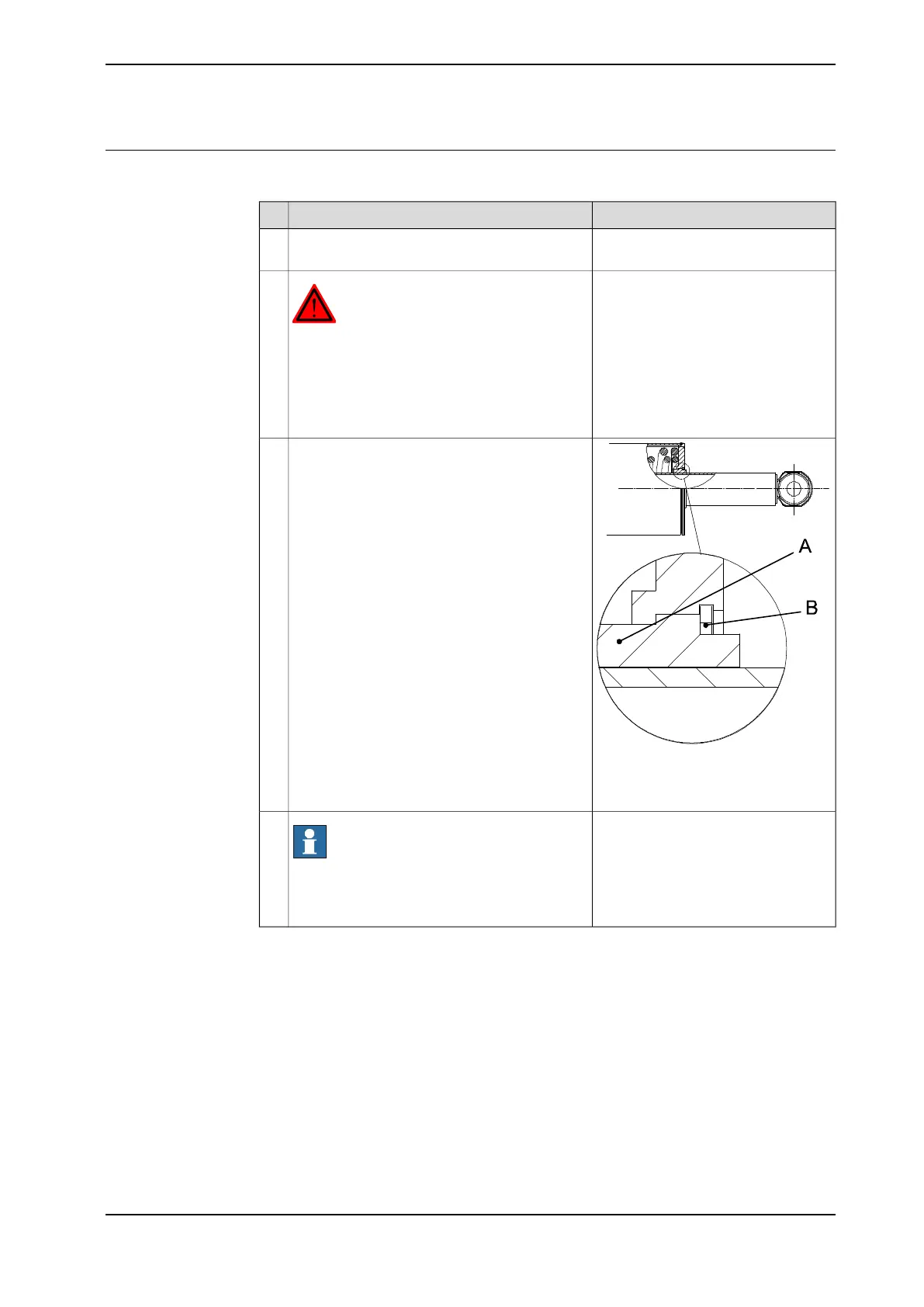

Inspecting, piston rod guide ring
Use this procedure to inspect the piston rod guide ring for wear.
NoteAction
Move axis 2 to a position where the balancing
device is in a horizontal position.
1
DANGER
Turn off all:
• electric power supply to the robot
• hydraulic pressure supply to the robot
• air pressure supply to the robot
Before entering the robot working area.
2
xx0600002689
Check the guide ring for wear.
Replace if necessary.
3
A Guide ring
B Circlip
Note
If there is a risk of metallic contact between the
piston rod and the end cover, the guide ring
must be replaced!
4
Product manual - IRB 6660 129
3HAC028197-001 Revision: S
