IRB 6660 - 205/1.9
xx0700000637

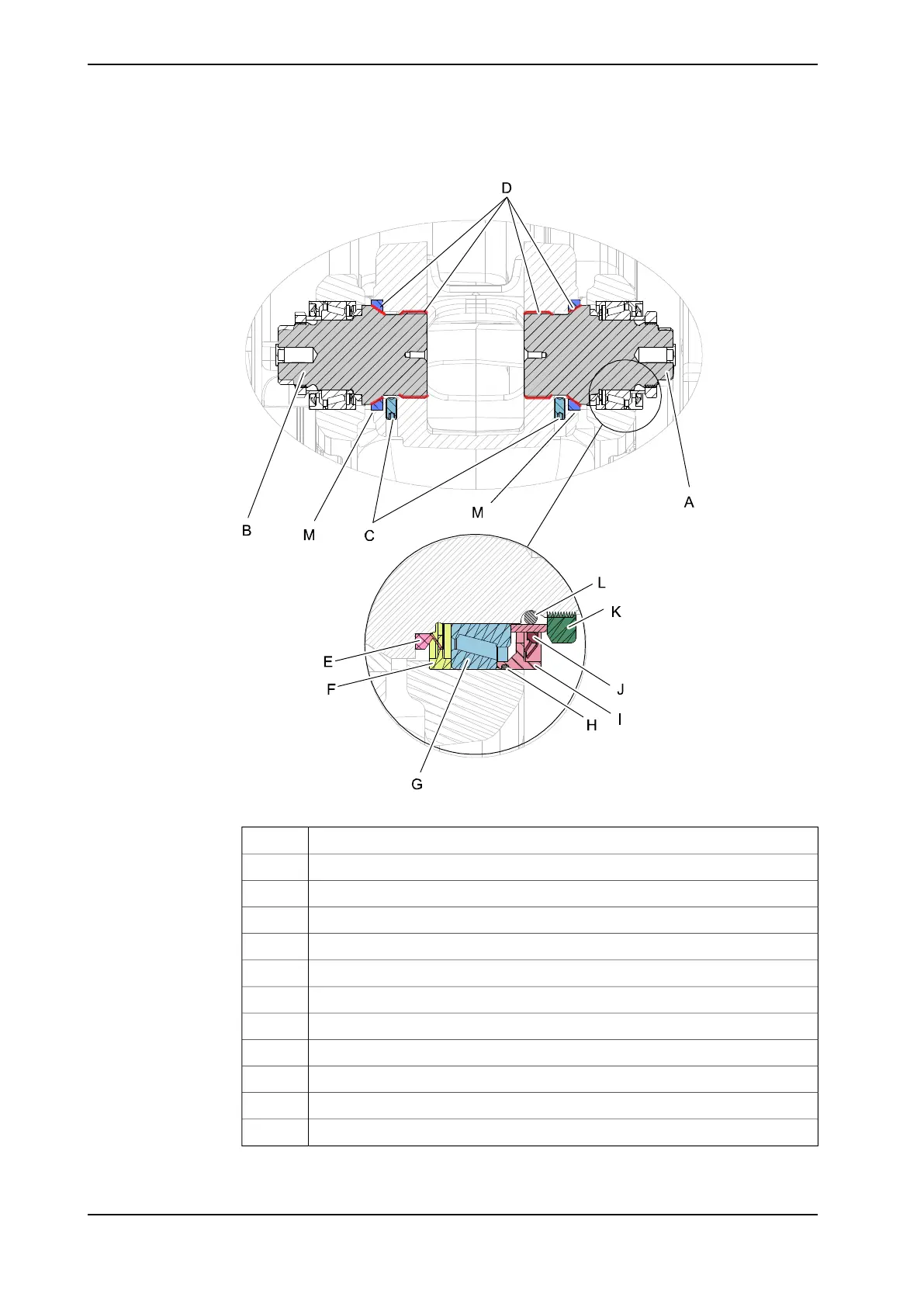

Shaft, axis 2A
Shaft, axis 3B
Set screw, cup point M10x20 quality 45H-A3FC
Surfaces where to apply lubricant paste (Molycote 1000)D
Sealing ring (V-ring)E
Sealing ringF
Taper roller bearingG
O-ringH
Sealing ringI
Sealing assembly (including support ring)J
Lock nut (KM12)K
O-ring (Di = 54.2 mm, t = 5.7 mm)L
Continues on next page
230 Product manual - IRB 6660
3HAC028197-001 Revision: S
© Copyright 2007-2018 ABB. All rights reserved.
4 Repair
4.4.3 Replacement of upper arm
Continued
