NoteAction
xx1000001395

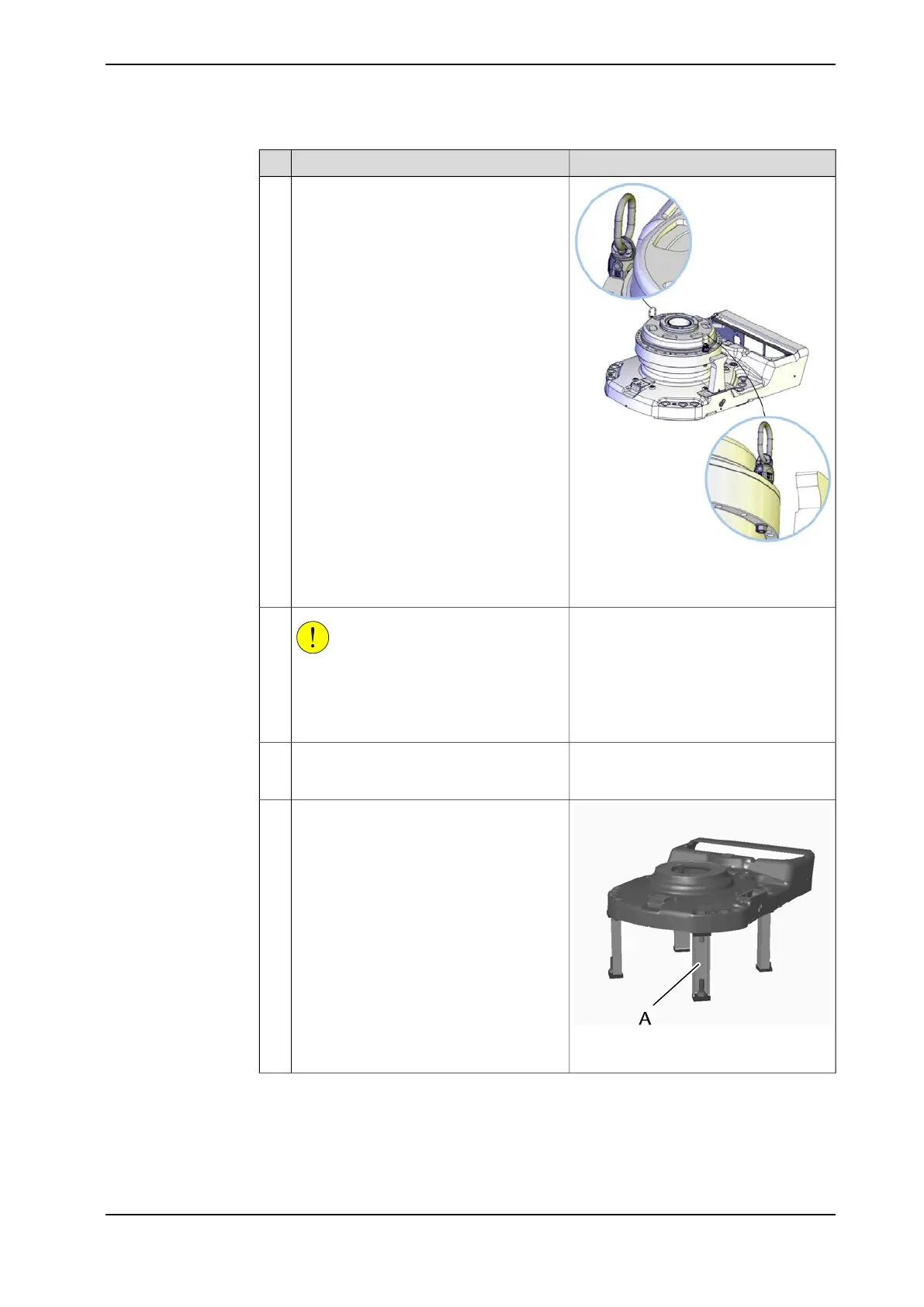

Attach the lifting accessory, base and gear
1 and the lifting tool (chain) to the gearbox
and base.
7
Specified in Required equipment on
page 311.
CAUTION
The base and axis 1 gearbox weighs 310
kg + 200 kg.
All lifting accessories used must be sized
accordingly!
8
Art. no. is specified in Required equip-
ment on page 311.
Lift the robot base including the axis 1
gearbox to allow the base and gear 1 sup-
port be fitted on each sides of the base.
9
xx1000000364
A Support base (4 pcs)
Secure the support to the base and to the
foundation.
Make sure the base remains in a stable
position before performing any work under-
neath the base!
10
Continues on next page
Product manual - IRB 6660 315
3HAC028197-001 Revision: S
© Copyright 2007-2018 ABB. All rights reserved.
4 Repair
4.7.1 Replacing the axis 1 gearbox
Continued
