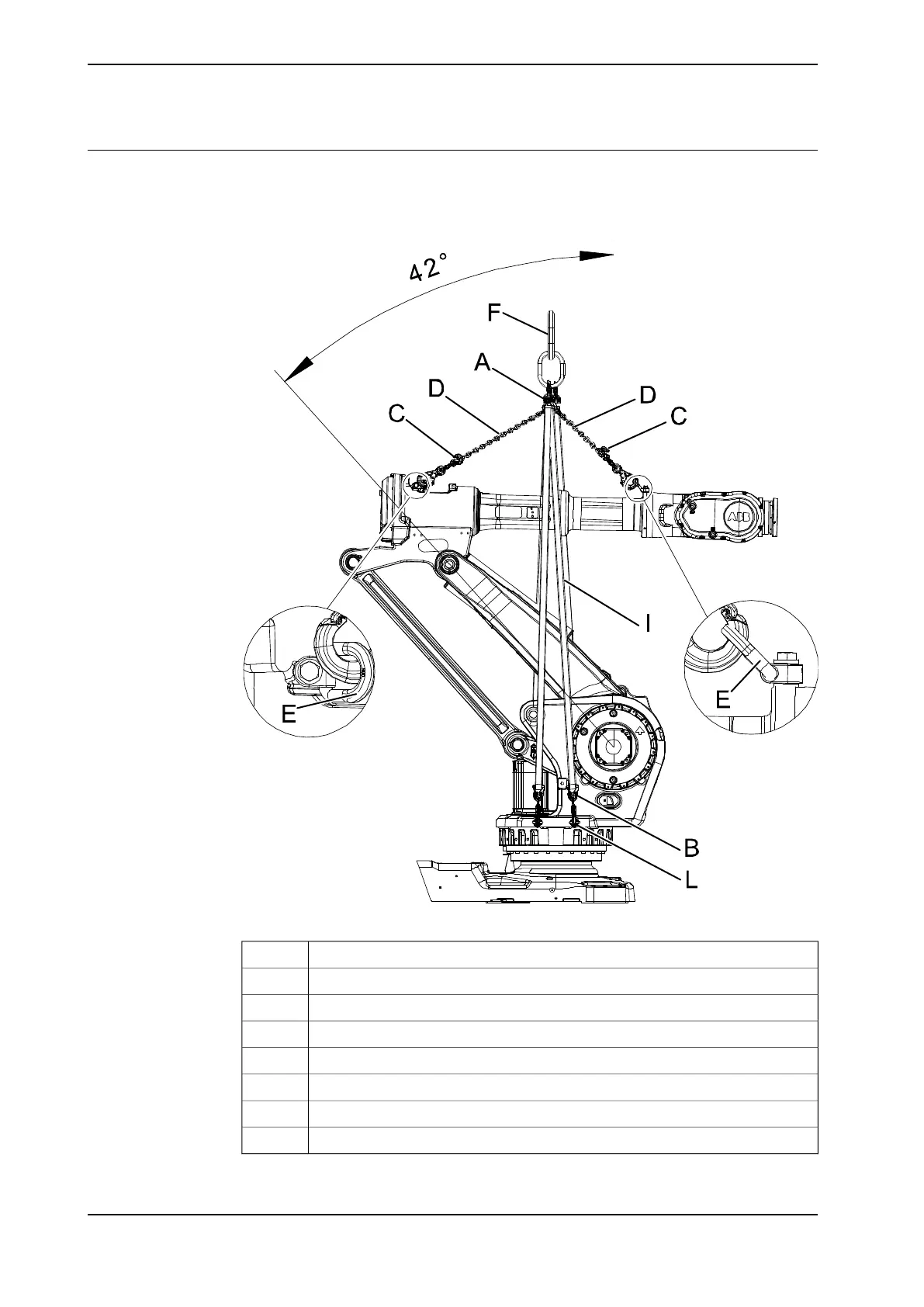

Illustration, lifting slings
The figure below shows how to lift the complete robot with lifting slings.
IRB 6660 - 130/3.1, IRB 6660 - 100/3.3
xx0700000004
Load hookA
Swivelling lifting eyes, 4 pcsB
Shortening hookC
ChainD
Lifting eye, M12E
Eye for lifting accessoryF
Lifting slings, 4 pcsI
HookL
Continues on next page
70 Product manual - IRB 6660
3HAC028197-001 Revision: S
© Copyright 2007-2018 ABB. All rights reserved.
2 Installation and commissioning
2.3.3 Lifting robot with lifting slings
Continued
