ABB ProcessMaster FEP630 series User Manual

108 FEP630, FEH630 ELECTROMAGNETIC FLOWMETER | OI/FEP630/FEH630-EN REV. D
… 8 Operation

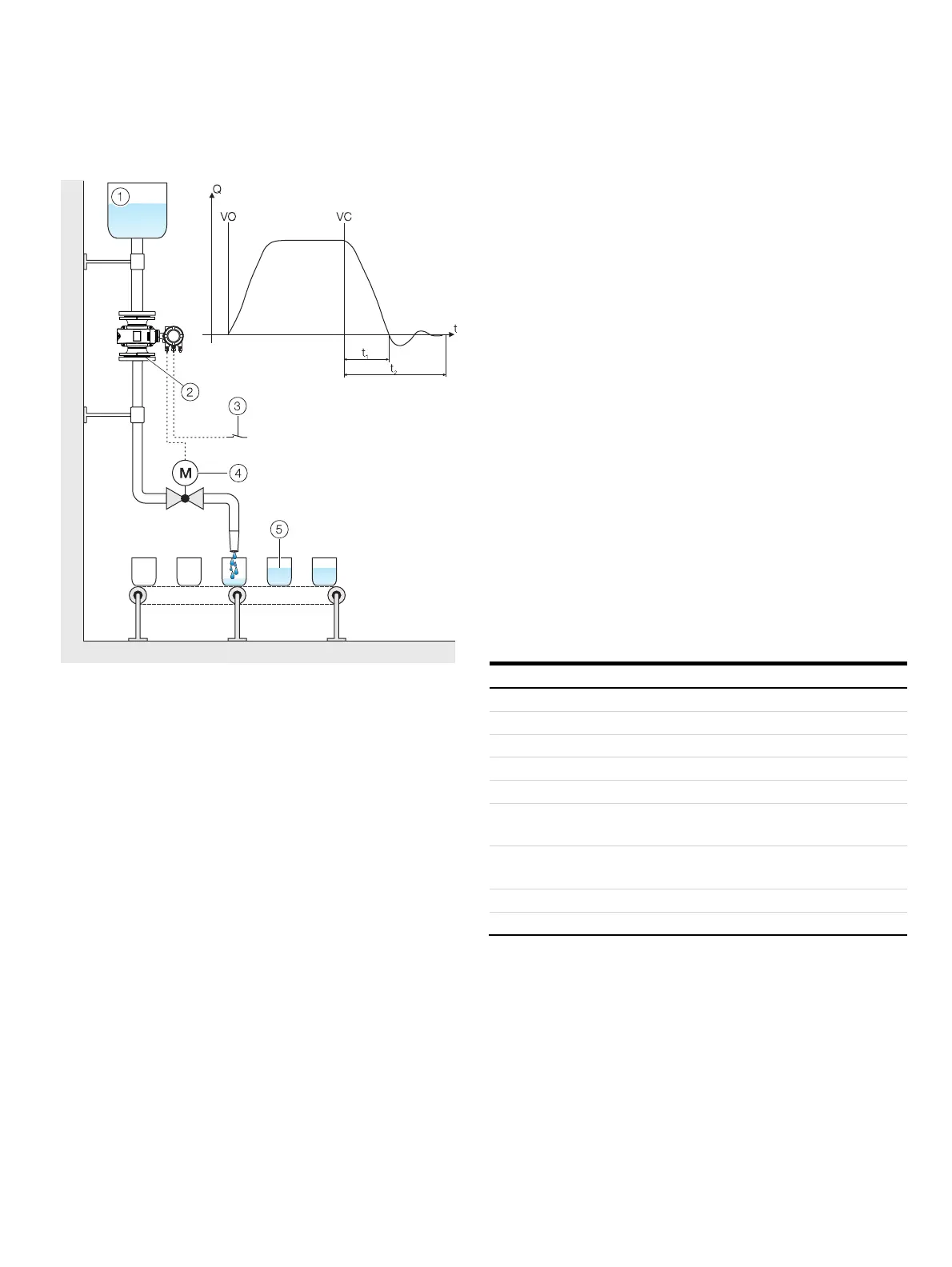

Filling function
1 Supply tank
2 Sensor
3 Start / stop fill operation
(digital input through plug-in
card)
4 Fill valve
5 Filling tank
VO Valve open
(filling started)
VC Valve closed
(fill quantity reached)
t
1 Valve closing time
t
2 Overrun time
Figure 76: FillMass fill function
The optional filling function allows filling with filling times> 3
seconds.
Filling quantity is configurable and the filling process can be
started via the digital input (plug-in card).
As soon as the filling quantity has been reached, the valve can be
closed via the digital output.
Filling quantity correction is calculated by measuring the overrun
quantity.
Additionally, the low flow cut-off can be configured if required.
Setup
For the configuration of the fill function, the following steps
must be performed:
1. The fill function must be active. See also the ‘Device Setup
/ ...Transmitter / ...Feature Settings / ...’ menu.
2. One digital output must be configured as a binary output
with the function ‘Batch End Contact’. See also the
‘Input/Output / ...’ menu. As an option, one digital input
(option module) can be configured with the function
‘Start/Stop Batching’ at the start of the filling process.
3. The parameters for the fill function must be configured.
See also the ‘Totalizer / ...Batching / ...’ menu.
Note
During fast filling processes, the damping should be set to the
minimum value to guarantee the greatest possible accuracy of
the fill quantity.
See also the ‘Device Setup / ...Transmitter / ...’ menu.
Brief overview of configurations
Configuration of digital output 41 / 42 as pulse output for
forward flow and digital output 51 / 52 as pulse output for
reverse flow.
Menu / parameter Parameter setting
Input/Output / Dig.Out 41/42 / …
Mode ⇒ Pulse
Outp. Flow Direction ⇒ Forward
Input/Output / ...Setup Pulse Output
Output Value Pulse ⇒ Pulse Volume Flow
Pulses per Unit ⇒ Setting in accordance with
requirement
Pulse Width ⇒ Setting in accordance with
requirement
Input/Output / Dig.Out 51/52
Mode ⇒ Follow DO 41/42
