FEP630, FEH630 ELECTROMAGNETIC FLOWMETER | OI/FEP630/FEH630-EN REV. D 55
Parameterization via the infrared service port adapter
Configuration via the infrared service port adapter on the device
requires a PC / notebook and the FZA100 infrared service port
adapter.
By combining the HART-DTM and the software ‘flow’ available at
www.abb.com/ABB AssetVision, all parameters can also be set
without a HART connection.
G11911
RxD
TxD
3
2
1
1 Infrared service port adapter
2 USB-interface cable
3 PC / Notebook running ABB
AssetVision and HART DTM

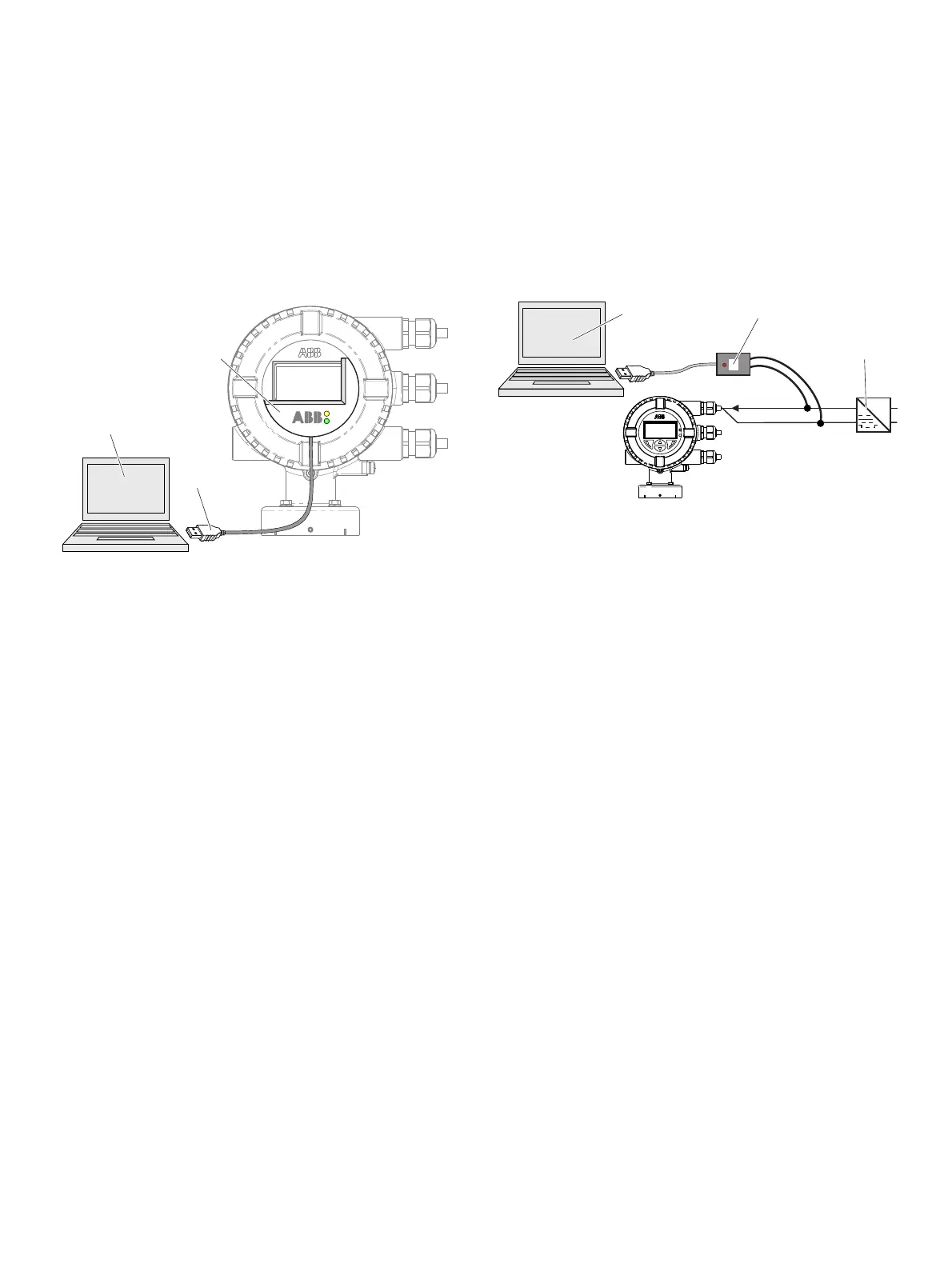

Figure 72: Infrared service port adapter on the transmitter (example)
1. Position the infrared service port adapter on the front plate
of the transmitter as shown
2. Insert USB interface cable into a free USB female connector
on the PC / notebook.
3. Switch on the device power supply.
4. Start ABB AssetVision and perform the parameterization of
the equipment.
Detailed information on operating the software is available in
the relevant operating instructions and the DTM online help.
Parameterization via HART®
Configuration via the HART interface of the device requires a
PC / Notebook and a suited HART® Modem.
All parameters can also be set via the HART protocol, using the
HART DTM available at www.abb.com/flow and theABB
AssetVisionsoftware.
G11912
1
~
4 ... 20 mA / HART
2
3
1 PC / Notebook running ABB
AssetVision and HART DTM
2 HART modem
3 Power supply unit
Figure 73: HART Modem on the transmitter (example)
For more detailed information on operating the software and
the HART modem, please refer to the relevant operating
instructions and the DTM online help.
