22 FEP630, FEH630 ELECTROMAGNETIC FLOWMETER | OI/FEP630/FEH630-EN REV. D
… 5 Installation
Installing the transmitter in the remote
mount design
When selecting a location for the transmitter, consider the
following points:
Observe the information concerning maximum ambient
temperature and IP rating on the name plate
The location must be mostly free from vibration.
The location must not be exposed to direct sunlight. If
necessary provide a sun screen on site.
Do not up-scale the maximum signal cable length
between the transmitter and the sensor.
1. Drill mounting holes at mounting location.
2. Attach transmitter securely to the mounting location using
suited fasteners for the base material.
G11567
205 (8.07)
2x45 = 90
(2x1.77 = 3.54)
262 (10.31)
71 (2.8)
71 (2.8)
Ø 7 (0.28)
1
1 Hole pattern for mounting holes

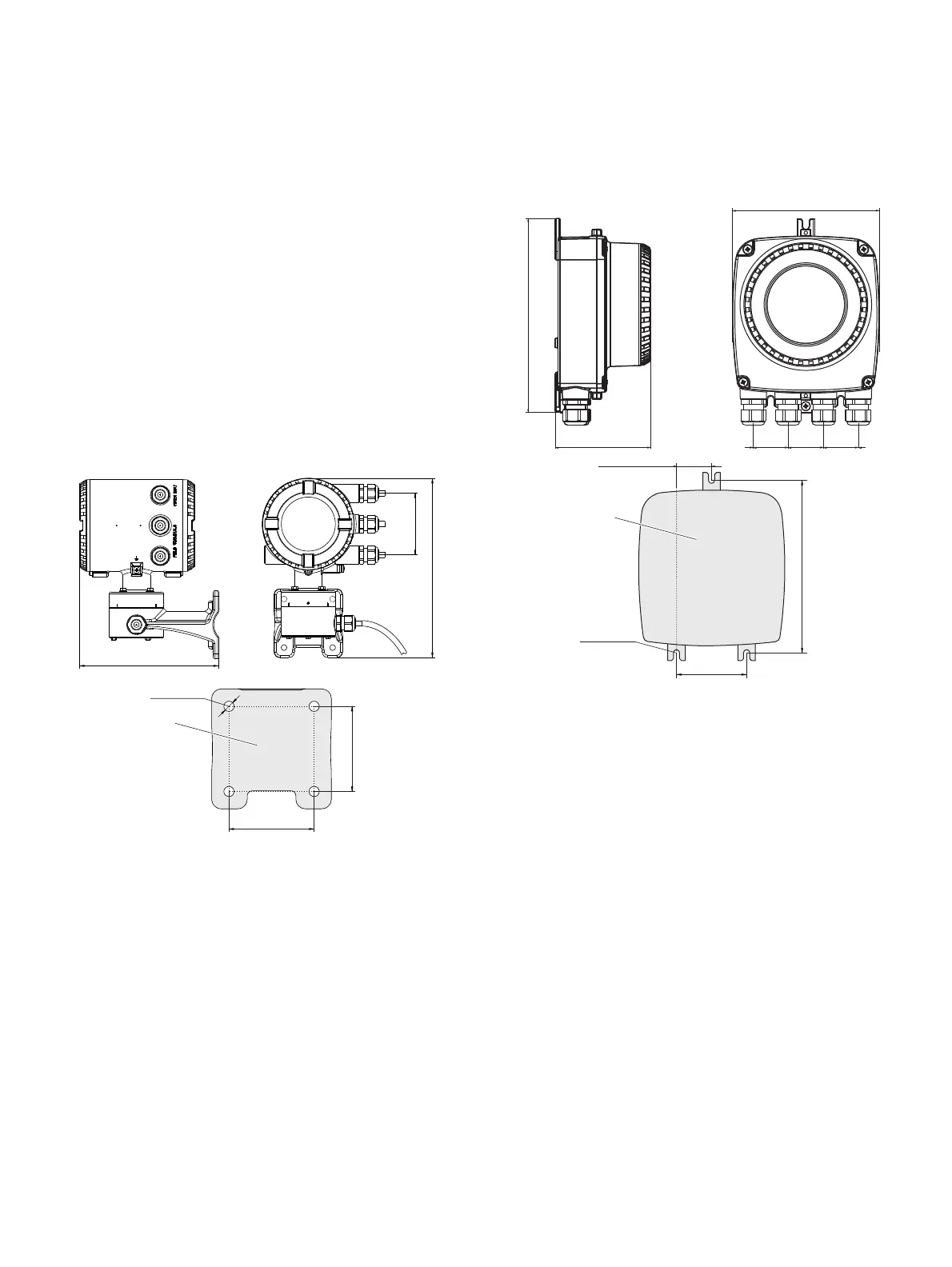

Figure 24: Mounting dimensions dual-compartment housing
G11568
98,1 (3.86)
200 (7.87)
36,5 (1.44)
150 (5.91)
1
180 (7,1)
72,5 (2.85)
36,3 (1.43)
Ø 6,4 (0.25)
1 Hole pattern for mounting holes
Figure 25: Mounting dimensions single-compartment housing
