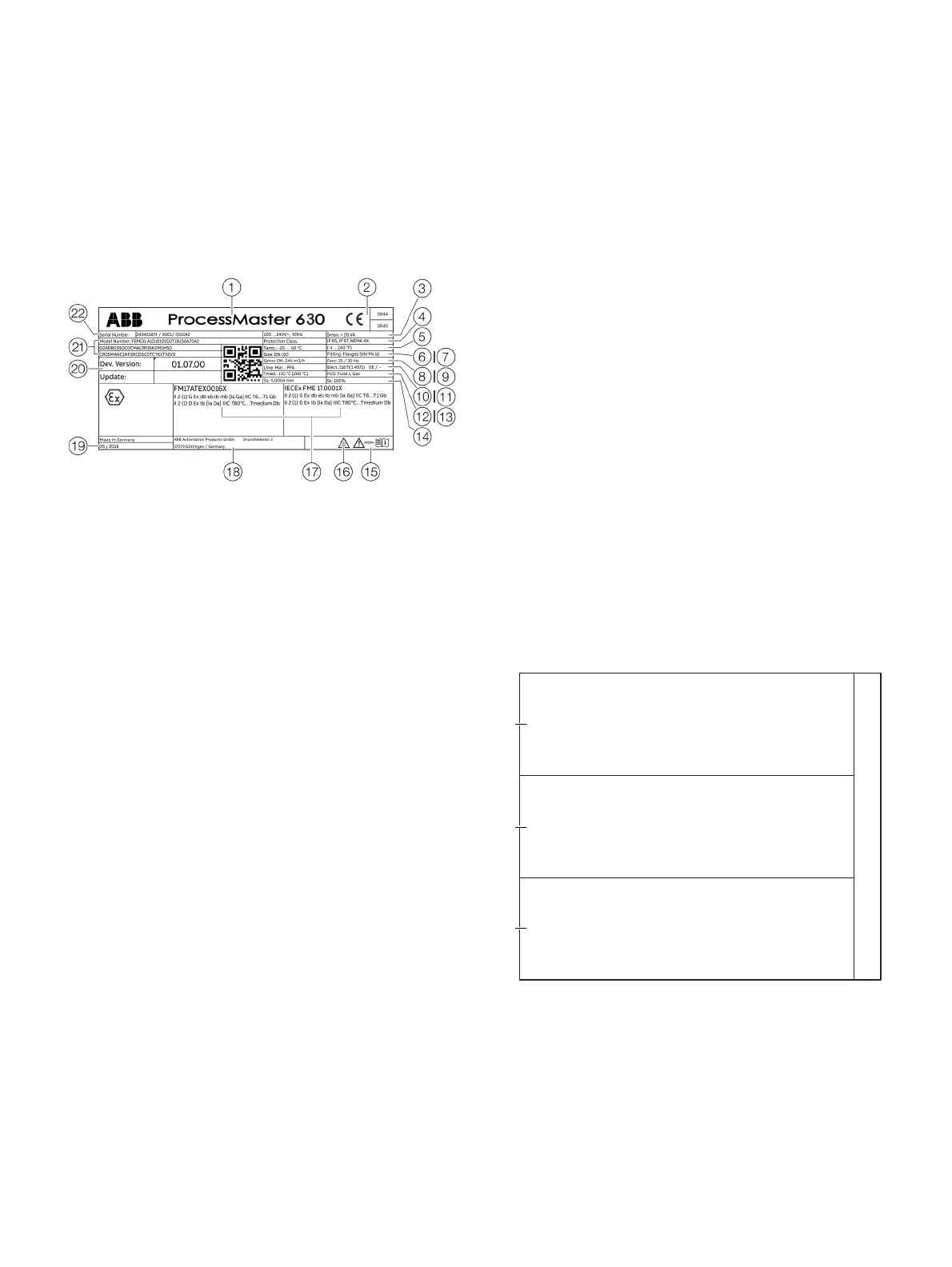

12 FEP630, FEH630 ELECTROMAGNETIC FLOWMETER | OI/FEP630/FEH630-EN REV. D
3 Product identification
Name plate
Note
The name plates displayed are examples. The device
identification plates affixed to the device can differ from this
representation.
1 Type designation
2 CE mark
3 Power supply
4 IP rating in accordance with
EN 60529
5 T
amb
= maximum permissible
ambient temperature
6 Nominal diameter
7 Process connection / pressure
rating
8 Calibration value Q
max
DN
9 Excitation frequency
0 Liner material
k Electrode material /
Supplementary information:
EE = grounding electrodes,
TFE = partial filling electrode
l T
med
= maximum permissible
measuring medium
temperature
m Label indicating whether the
pressure equipment is subject
to the Pressure Equipment
Directive.
n Calibration value Sz (zero point), Ss
(range)
o ‘Follow operating instruction’
symbol
p Caution hot surface’ symbol
q Ex marking in accordance with
ATEX / IECEx (example)
r Manufacturer address
s Year of manufacture
t Software version
u Model number (for more detailed
information about the technical
design, refer to the data sheet or
the order confirmation)
v Order number / Serial number for
identification by the manufacturer
Figure 5: Name plate (example)
Note
Devices with 3A approval SIL are labeled with an additional plate.
Marking in accordance with Pressure Equipment Directive
2014/68/EU
Information on the relevant fluid group (Figure 5, Position
m):
PED: Fluid 1, Gas
Fluid group 1 = hazardous fluids, liquid, gaseous. (PED =
PressureEquipmentDirective).
• SEP
If the pressure equipment is not in the scope of the
Pressure Equipment Directive, it is classified in
accordance with SEP = Sound Engineering Practice
(‘sound engineering practice’) in accordance with Art. 4
para. 3 of the Pressure Equipment Directive.
If there is no such information at all, there is no compliance with
the requirements of the Pressure Equipment Directive.
Water supplies and connected equipment accessories are
classed as an exception in accordance with guideline 1/16 of
Art. 1 Para. 3.2 of the Pressure Equipment Directive.
Additional warning plate
Devices which are approved for use in potentially explosive
atmospheres have an additional warning plate.
G12174
Warnung!
Gefahr durch elektrostatische Entladung
Warning!
Danger by electrostatic unloading
AVERTISSEMENT!
Risque de d charge électrostatique
Warnung!
Nicht öffnen, wenn eine explosionsfähige Athmosphäre vorhanden ist.
Warning!
DO NOT OPEN WHEN AN EXLPOSIVE ATMOSPHERE IS PRESENT
AVERTISSEMENT!
Ne pas ouvrir en presence d'une atmosphere explosive
Achtung:
Heisse Oberfläche
Warning:
Hot Surface
Attention:
Surface tres chaude
Cable entries: M20 x 1,5
1
2
3
4
1 WARNING - Danger due to
electrostatic discharge.
2 WARNING - Do not open if an
explosive atmosphere is
present.
3 WARNING - Hot surface.
4 Thread for cable glands
Figure 6: Additional warning plate
