46 FEP630, FEH630 ELECTROMAGNETIC FLOWMETER | OI/FEP630/FEH630-EN REV. D
… 6 Electrical connections
… Pin assignment
Connection to remote mount design
Transmitter
Dual- compartment housing
A Upper terminal box (back side)
B Lower terminal box
C Signal cable to sensor
1 Terminals for power supply
2 Cover for power supply terminals
3 Terminals for signal cable
4 Terminals for inputs and outputs
5 Terminal for potential equalization

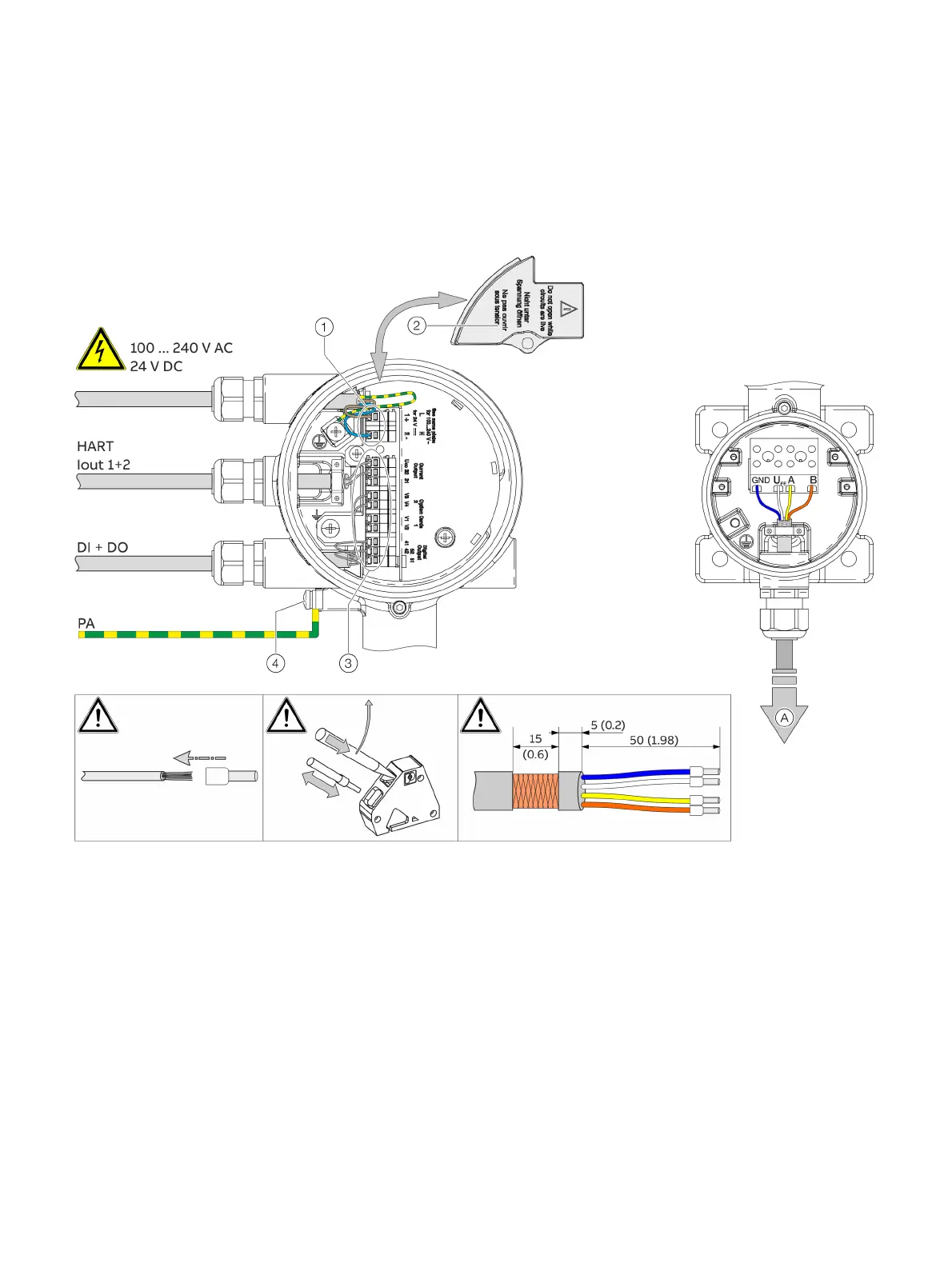

Figure 62: Electrical connection to transmitter in remote mount design [example, dimensions in mm (in)]
