126 FEP630, FEH630 ELECTROMAGNETIC FLOWMETER | OI/FEP630/FEH630-EN REV. D
… 11 Repair

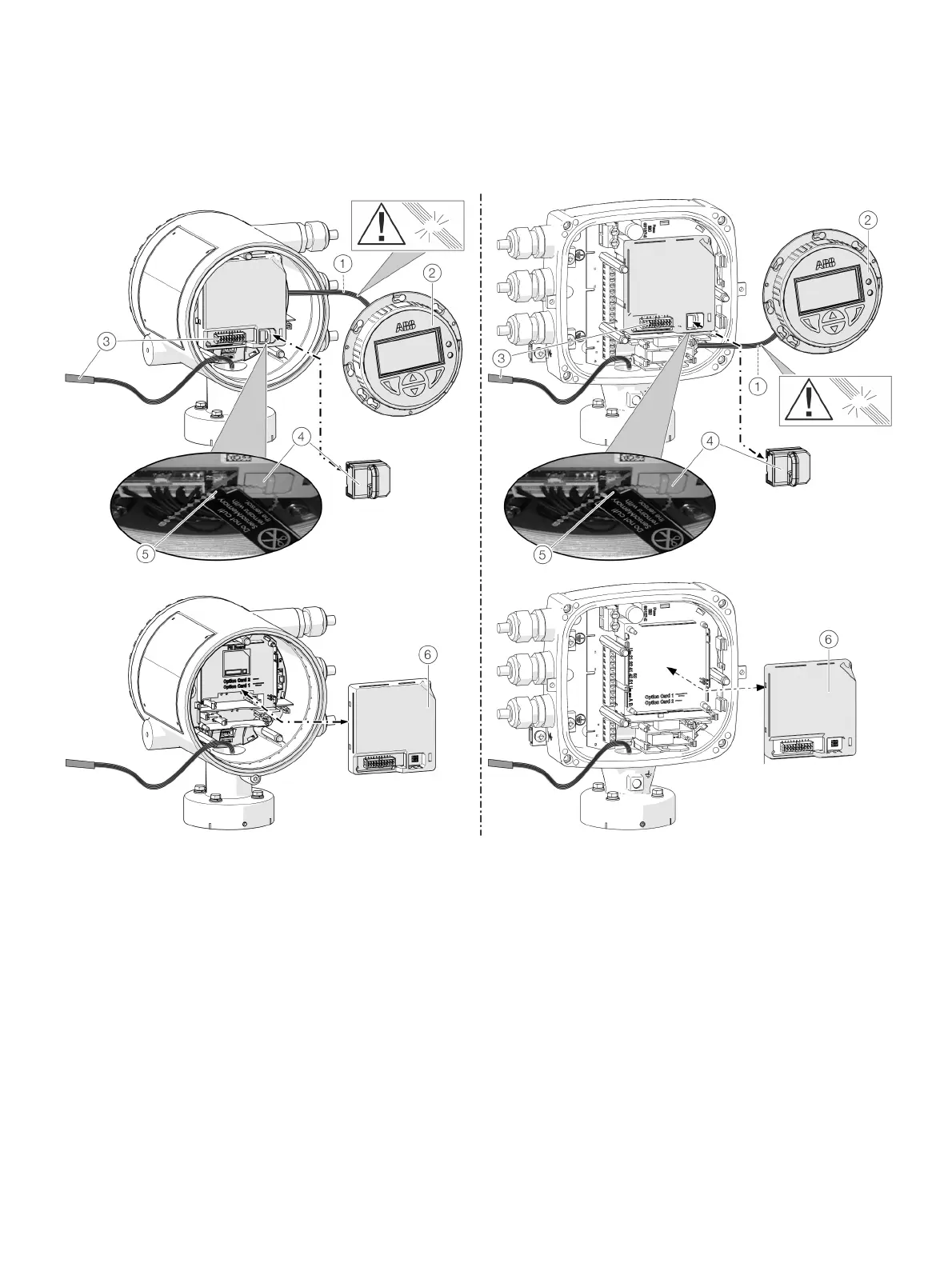

Replacing the frontend board
Integral mount design
1 LCD indicator cable harness
2 LCD indicator
3 Sensor cable harness
4 SensorMemory
5 Cable retainer
6 Frontend board
Figure 79: Replacing LCD indicator and frontend board (example)
