FEP630, FEH630 ELECTROMAGNETIC FLOWMETER | OI/FEP630/FEH630-EN REV. D 63
Process display
G11558
1
43
2
3
1 Measuring point tagging
2 Current process values
3 ‘Button function’ symbol
4 ‘Parameterization protected’
symbol

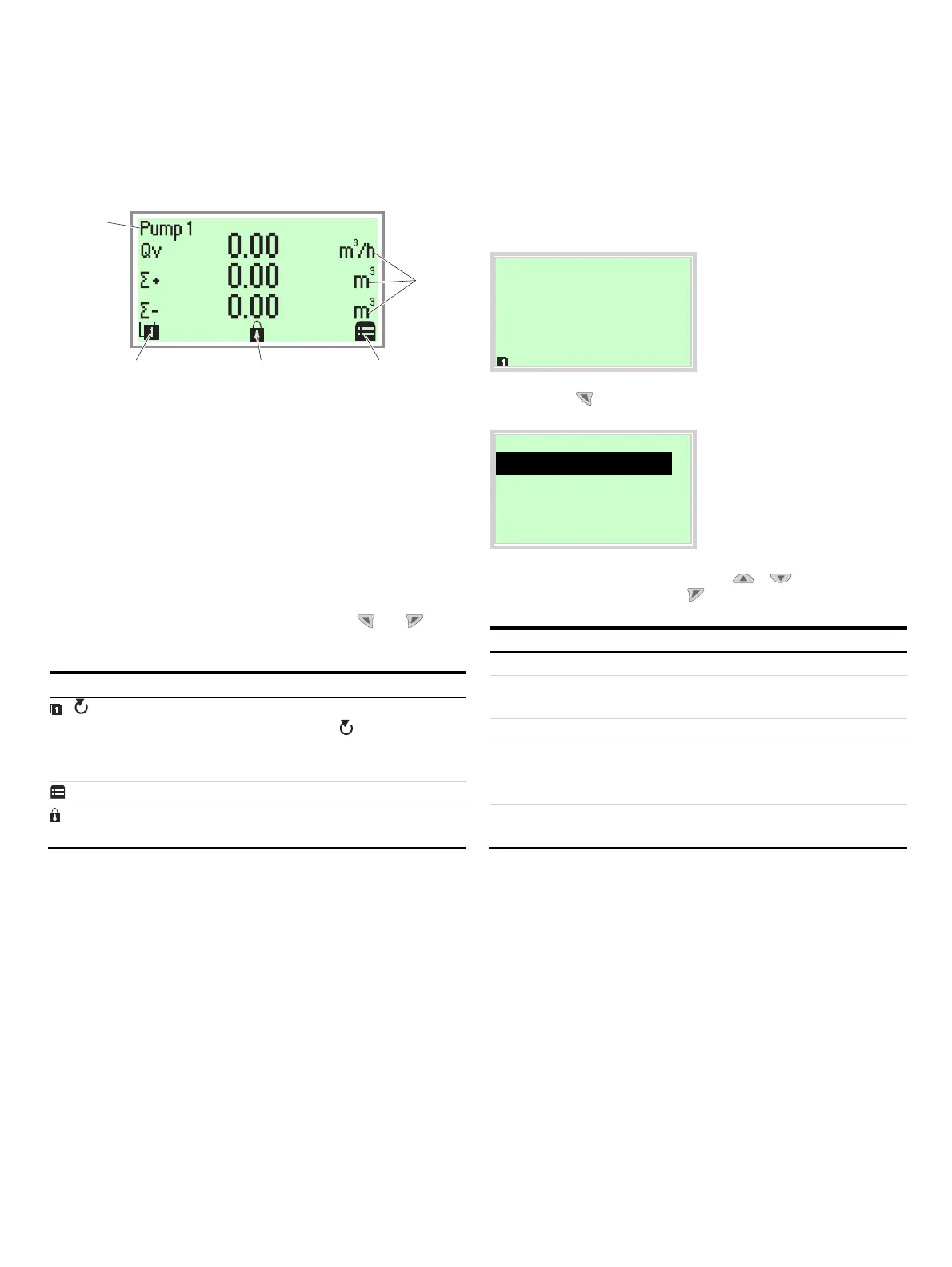

Figure 75: Process display (example)
The process display appears on the LCD display when the device
is powered on. It shows information about the device and
current process values.
The way in which the current process values are shown can be
adjusted on the configuration level.
The symbols at the bottom of the process display are used to
indicate the functions of the operating buttons and , in
addition to other information.
Symbol Description
/ Call up information level.
When Autoscroll mode is activated, the icon appears here
and the operator pages are automatically displayed one after
the other.
Call up configuration level.
The device is protected against changes in the
parametrization.
Switching to the information level
On the information level, the operator menu can be used to
display diagnostic information and choose which operator
pages to display.
Process dis
p
la
y
1. Open the using Operator Menu.
O
p
erator Menu
Dia
g
nostics
O
p
erator Pa
g
e 1
O
p
erator Pa
g
e 2
Back
Select
2. Select the desired submenu using / .
3. Confirm the selection with .
Menu Description
… / Operator Menu
Diagnostics Selection of sub-menu ‘Diagnostics’; see also Error
messages on the LCD display on page 64.
Operator Page 1 to n Selection of operator page to be displayed.
Autoscroll When ‘Autoscroll‘ is activated, automatic switching
of the operator pages is initiated on the process
screen.
Signals View Selection of submenu ‘Signals View’ (only for service
purposes).
