ABB ProcessMaster FEP630 series User Manual

FEP630, FEH630 ELECTROMAGNETIC FLOWMETER | OI/FEP630/FEH630-EN REV. D 43
Active current output V3 / V4
When the ‘loop power supply 24 V DC, blue’ plug-in card is used,
the current output on the plug-in card can also be wired as the
active current output.
G11742-01
A
V2-
V1+
IE
+24 V , max. 25 mADC
0V
4 ... 20 mA
V3+
V4-
B
OC1
OC2
R
B
A ‘Loop power supply (blue)’ plug-in card in slot 1
B ‘Passive current output (red)’ plug-in card in slot 2

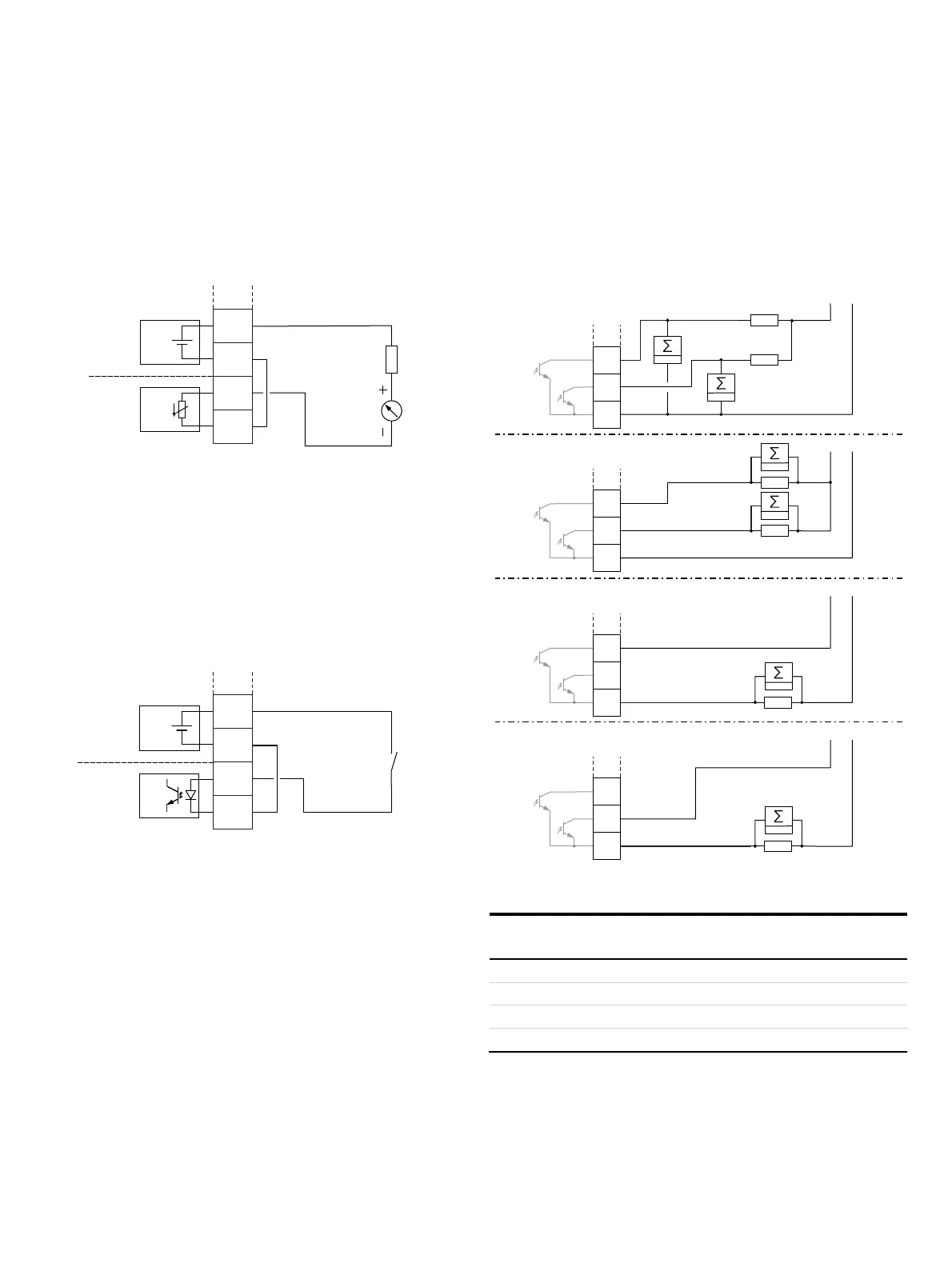

Figure 58: Active current output V3 / V4 (example)
Digital input V3 / V4 active
When the ‘loop power supply 24 V DC, blue’ plug-in card is used,
the current output on the plug-in card can also be wired as the
active current output.
G11914
A
V2-
V1+
IE
+24 V , max. 25 mADC
0V
B
V4-
V3+
OC2
OC1
A ‘Loop power supply (blue)’ plug-in card in slot 1
B ‘Passive digital input (yellow)’ plug-in card in slot 2
Figure 59: Active digital output V3 / V4 (example)
Connection versions digital output 41 / 42, 51 / 52
Depending on the wiring of digital outputs DO 41 / 42 and
51 / 52, they can be used parallel or only individually. The
electrical isolation between the digital outputs also depends on
the wiring.
G12392
A
41+
51+
IE
42-/
52-
R
B
U
B
R
B
012345
1
012345
2
B
41+
51+
IE
42-/
52-
R
B
+-
U
B
+-
R
B
012345
2
R
B
012345
1
C
41+
51+
IE
42-/
52-
U
B
+-
012345
R
B
D
41+
51+
IE
42-/
52-
U
B
+-
012345
Figure 60: Connection versions digital output 41 / 42 and 51 / 52
DO 41 / 42 and 51 / 52 can be
used parallel
DO 41 / 42 and 51 / 52
electrically isolated
A Yes No
B Yes Yes
C No, only DO 41 / 42 can be used No
D No, only DO 51 / 52 can be used No
Table 1: Connection versions digital output
