Apparatus control
Version 1.0-00
1MRK 580 150-XEN
Page 6 - 38

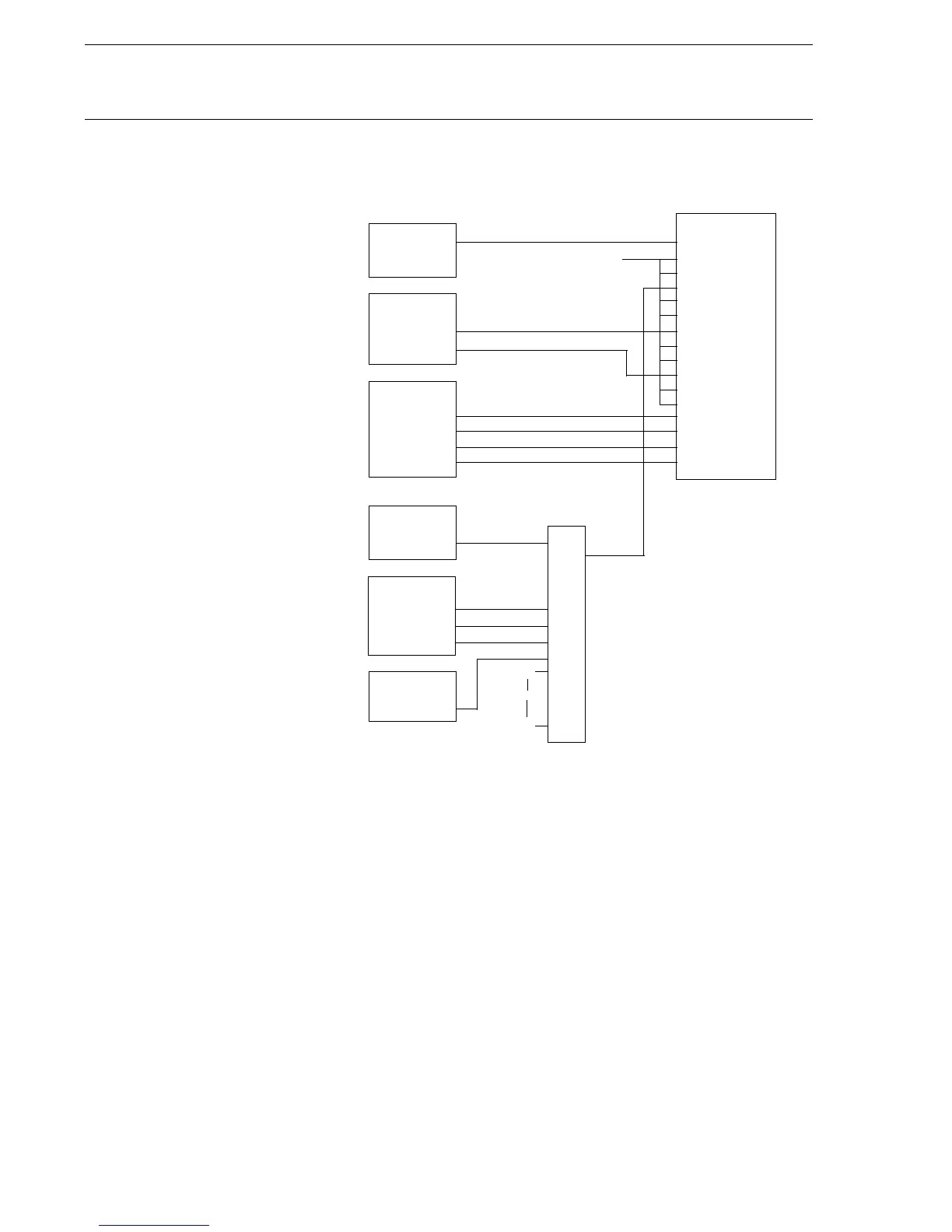

Fig. 23 shows bay-related signals that can be presented on the station
MMI.
Fig. 23 Event connections between station MMI and bay-related sig-
nals
INPUT1
INPUT2
INPUT3
INPUT4
INPUT5
INPUT6
INPUT7
INPUT8
INPUT9
INPUT10
INPUT11
INPUT12
INPUT13
INPUT14
INPUT15
INPUT16
EVENT
To station MMI
BLK_OUT1
BLK_OUT2
BAYCON
STATION
REMOTE
LOCAL
ACK_T_B
BLKCONK
Delivery
specific
logic
Bay connected to busbar
FIXD-OFF
Abnormal status for bay
Control blocked for bay
Update blocked for bay
Bay reserved
Apparatus 1
BLKCONL
BLK_OUT1
SWICON
MA_UPD_P
POS_ERR
POL_DISC
≥1
COMCON
OVERRIDE



.
.
.
From
other
app. in
the bay
(X80150-23)
