ABB Network Partner AB
Apparatus control
Version 1.0-00
1MRK 580 150-XEN
Page 6 - 48
lowing figures show examples of different configurations. The terminal
diagram for the binary output module shows detailed information about
the terminal numbering.

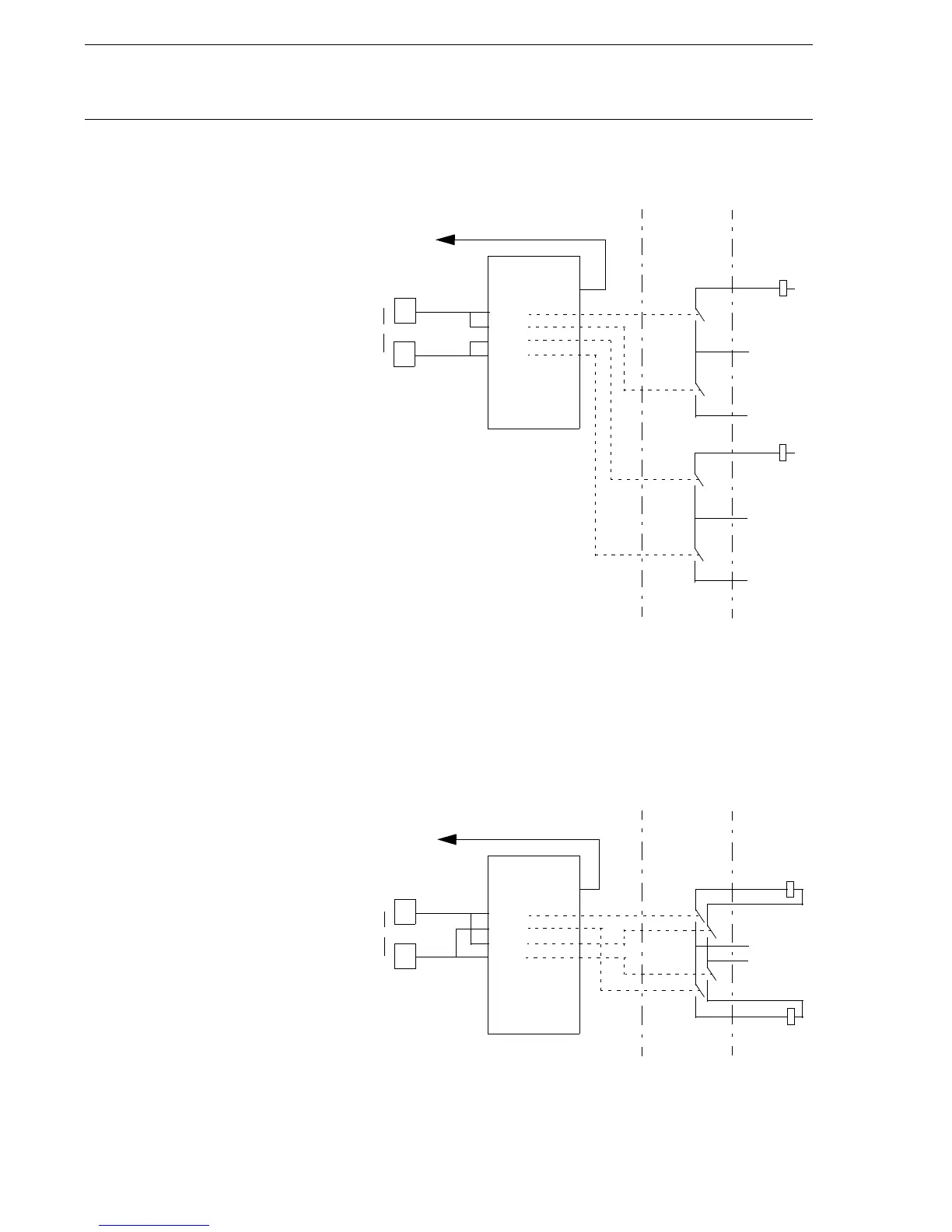

Fig. 36 Single pole command outputs with supervision
Fig. 36 and Fig. 37 are the standard configurations during operation of
high-voltage apparatuses. The double pole command is normally used to
avoid an unwanted operation of the apparatuses, due to an earth fault in
the switchyard. The output module is very flexible. So users can mostly
find solutions for their own requirements.
Fig. 37 Double pole command outputs with supervision
I/O-module
BO1
BO2
BO3
BO4
CLOSE
&
BO.01
BO.02
Binary
Output
Module
XA
1
2
3
Close
coil
SwitchyardApplication software
From
SWI-
CON
+
-
.
.
.
BO24
OPEN
&
BO.03
BO.04
4
5
6
Open
coil
+
-



ERROR
To BLKCONL
(X80150-36)
I/O-module
BO1
BO2
BO3
BO4
+
-
CLOSE
OPEN
&
&
BO.01
BO.03
BO.04
BO.02
Binary
Output
Module
XA
1
4
2
5
6
3
Close
coil
Open
coil
SwitchyardApplication software



From
SWI-
CON
.
.
.
BO24
ERROR
To BLKCONL
(X80150-37)
