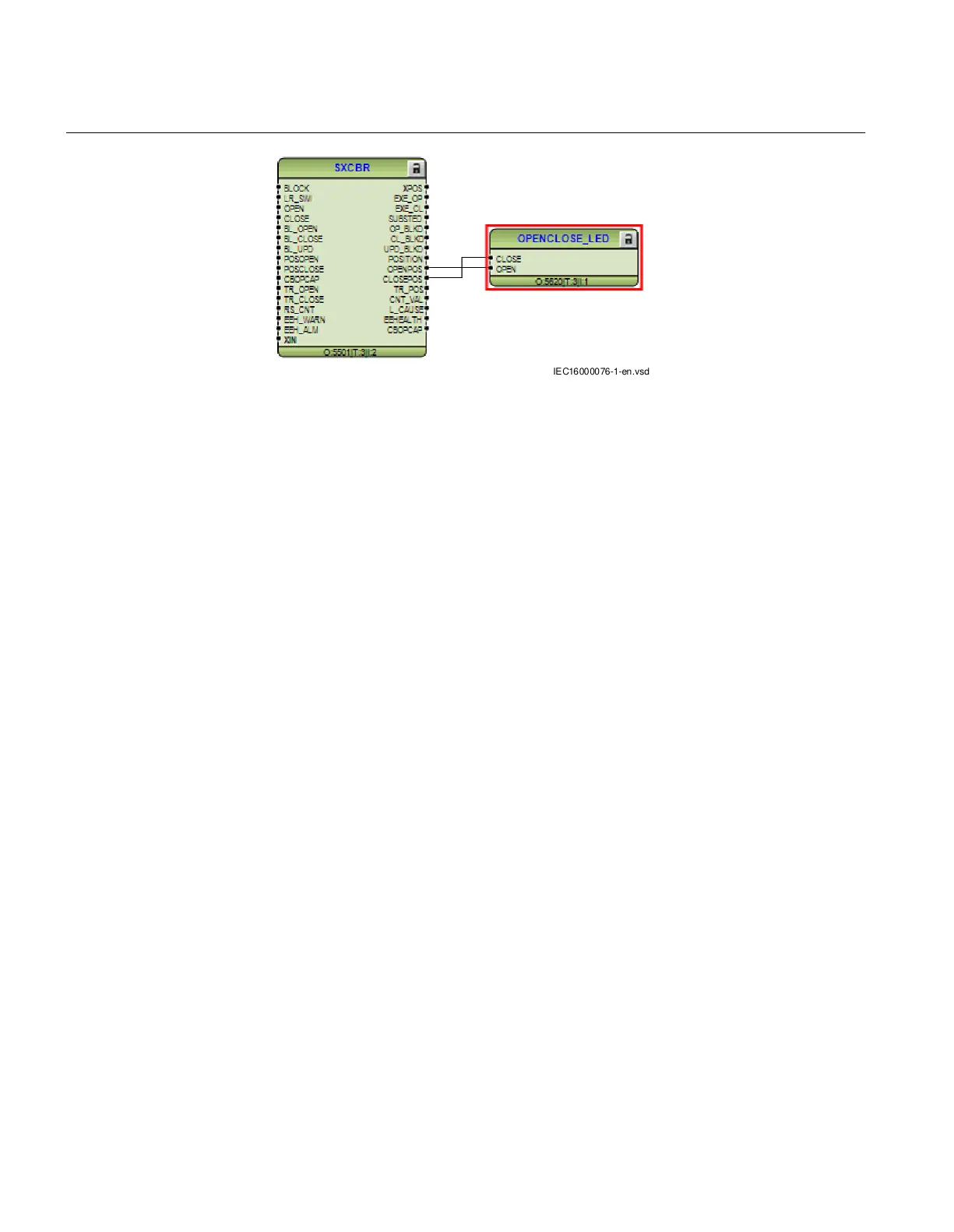

Figure 29: OPENCLOSE_LED connected to SXCBR
5.3 Keypad
AMU0600428 v17
The LHMI keypad contains push-buttons which are used to navigate in different views
or menus. The push-buttons are also used to acknowledge alarms, reset indications,
provide help and switch between local and remote control mode.
The keypad also contains programmable push-buttons that can be configured either as
menu shortcut or control buttons.
