15.5 Current reversal and weak-end infeed logic for
residual overcurrent protection ECRWPSCH
(85)
IP14365-1 v4
15.5.1 Identification
M14883-1 v2
Function description IEC 61850
identification
IEC 60617
identification
ANSI/IEEE C37.2
device number
Current reversal and weak-end infeed
logic for residual overcurrent protection
ECRWPSCH - 85
15.5.2 Application
IP15041-1 v1
15.5.2.1 Fault current reversal logic
M15285-3 v7
Figure 195 and figure 196 show a typical system condition, which can result in a fault
current reversal.
Assume that fault is near the B1 breaker. B1 Relay sees the fault in Zone1 and A1 relay
identifies the fault in Zone2.
Note that the fault current is reversed in line L2 after the breaker B1 opening.
It can cause an unselective trip on line L2 if the current reversal logic does not block
the permissive overreaching scheme in the IED at B2.
en99000043_ansi.vsd
Strong
source
LINE 1
LINE 2
A:1
A:2
B:1
B:2
A B
Weak
source
FAULT
CLOSED
CLOSED
CLOSED
CLOSED
ANSI99000043 V1 EN-US

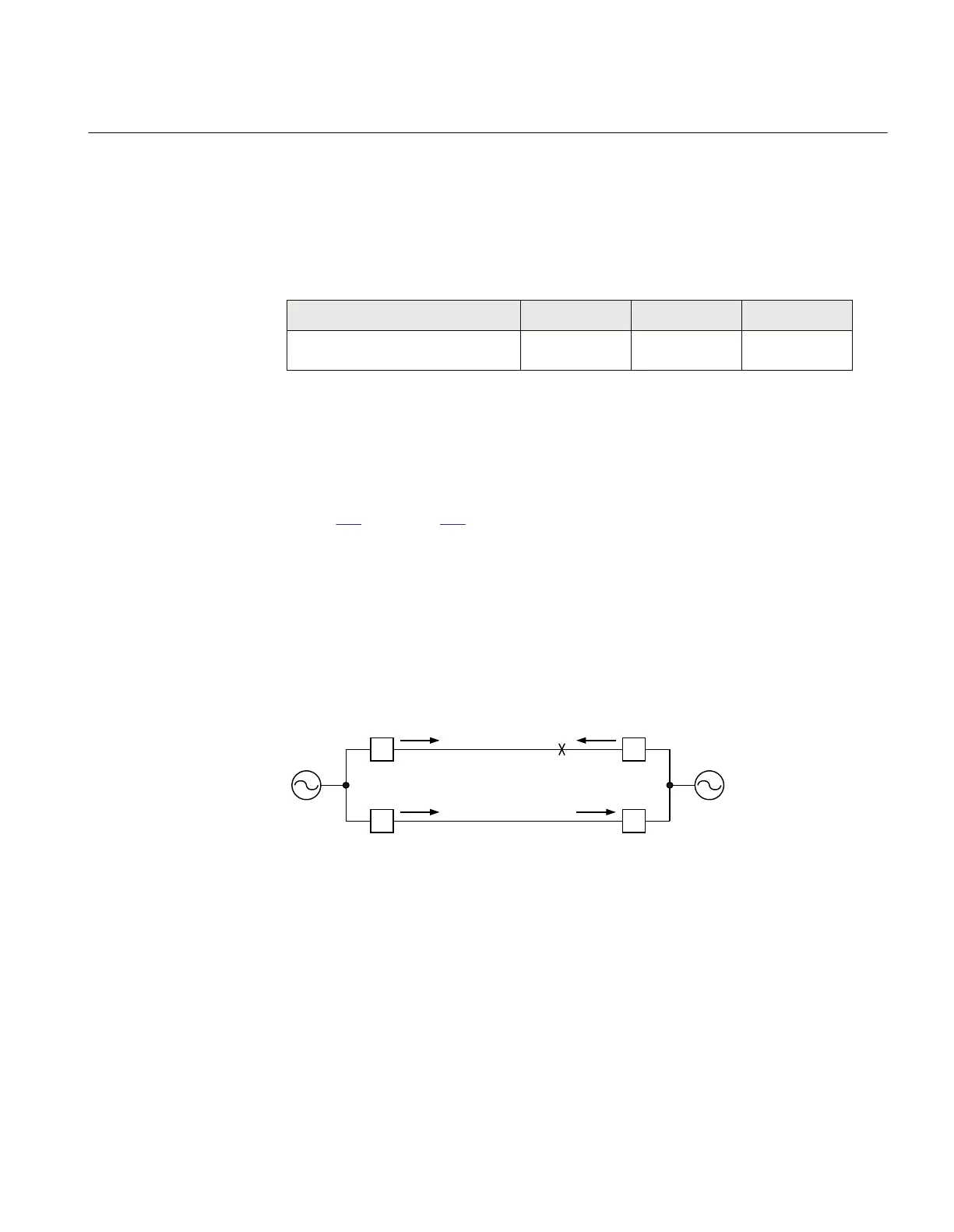

Figure 195: Current distribution for a fault close to B side when all breakers are
closed
1MRK 511 401-UUS A Section 15
Scheme communication
Bay control REC670 2.2 ANSI 481
Application manual
