Other back-up functions are connected to the input TRINP_3P as described above for
three-pole tripping. A typical connection for a single-pole tripping scheme is shown in
figure 200.
BLOCK
BLKLKOUT
TRINP_3P
TRINP_A
TRINP_B
TRINP_C
PS_A
PS_B
PS_C
1PTRZ
1PTRGF
P3PTR
SETLKOUT
RSTLKOUT
CND
TRIP
SMPPTRC (94)
TR_A
TR_B
TR_C
TR1P
TR2P
TR3P
CLLKOUT
BFI_3P
BFI_A
BFI_B
BFI_C
FW
REV
Phase segregated trip A, B and C
from example line differential or
distance protection
Phase selection A, B and C from
external phase selection logic
Trip by communication scheme of
distance protection if required to
provide a single pole trip
Trip by communication scheme of
earth fault protection if required to
provide single pole trip
To activate lockout for any trip
To reset lockout
Protection functions with 3
phase trip, for example time
delayed overcurrent protection
OR
To prepare 3 phase trip
for any trip signal
SMBRREC
PREP3P
TR3P
STN
ANSI05000545-6-en.vsdx
ANSI05000545 V6 EN-US

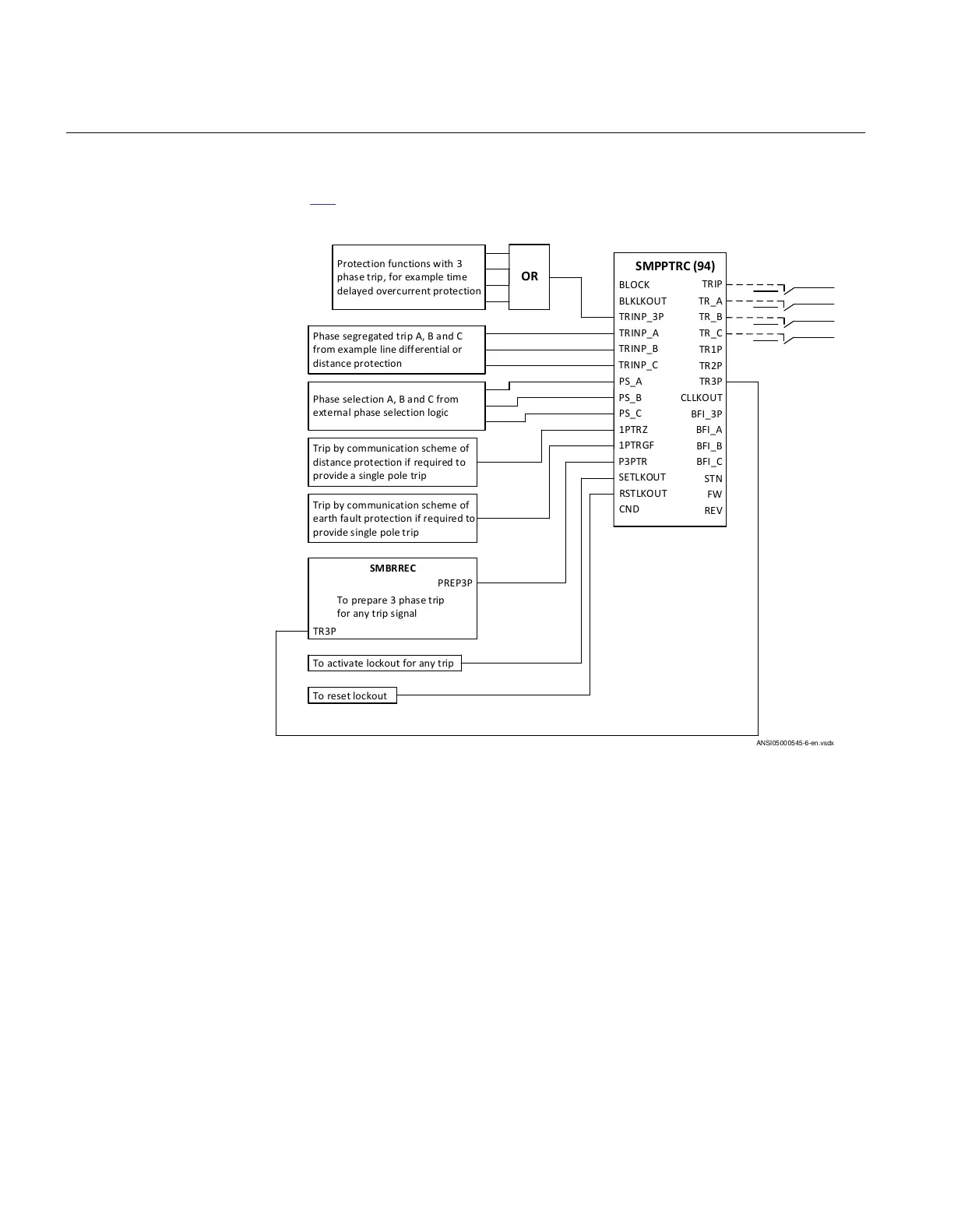

Figure 200: The trip logic function SMPPTRC (94) used for single-pole tripping
application
16.1.2.3 Single-, two- or three-pole tripping
M14828-15 v5
The single-/two-/three-pole tripping mode provides single-pole tripping for single-
phase faults, two-pole tripping for two-phase faults and three-pole tripping for three-
phase faults. The operating mode is always used together with an autoreclosing scheme
with setting ARMode = 1/2/3 ph or ARMode = 1/2 Ph.
The functionality is very similar to the single-phase scheme described above. However,
in addition to the connections for single phase SMBRREC (79) must also be informed
that the trip is two phases by connecting the output TR2P to the input TR2P in the
SMBRREC (79) function.
Section 16 1MRK 511 401-UUS A
Logic
488 Bay control REC670 2.2 ANSI
Application manual
