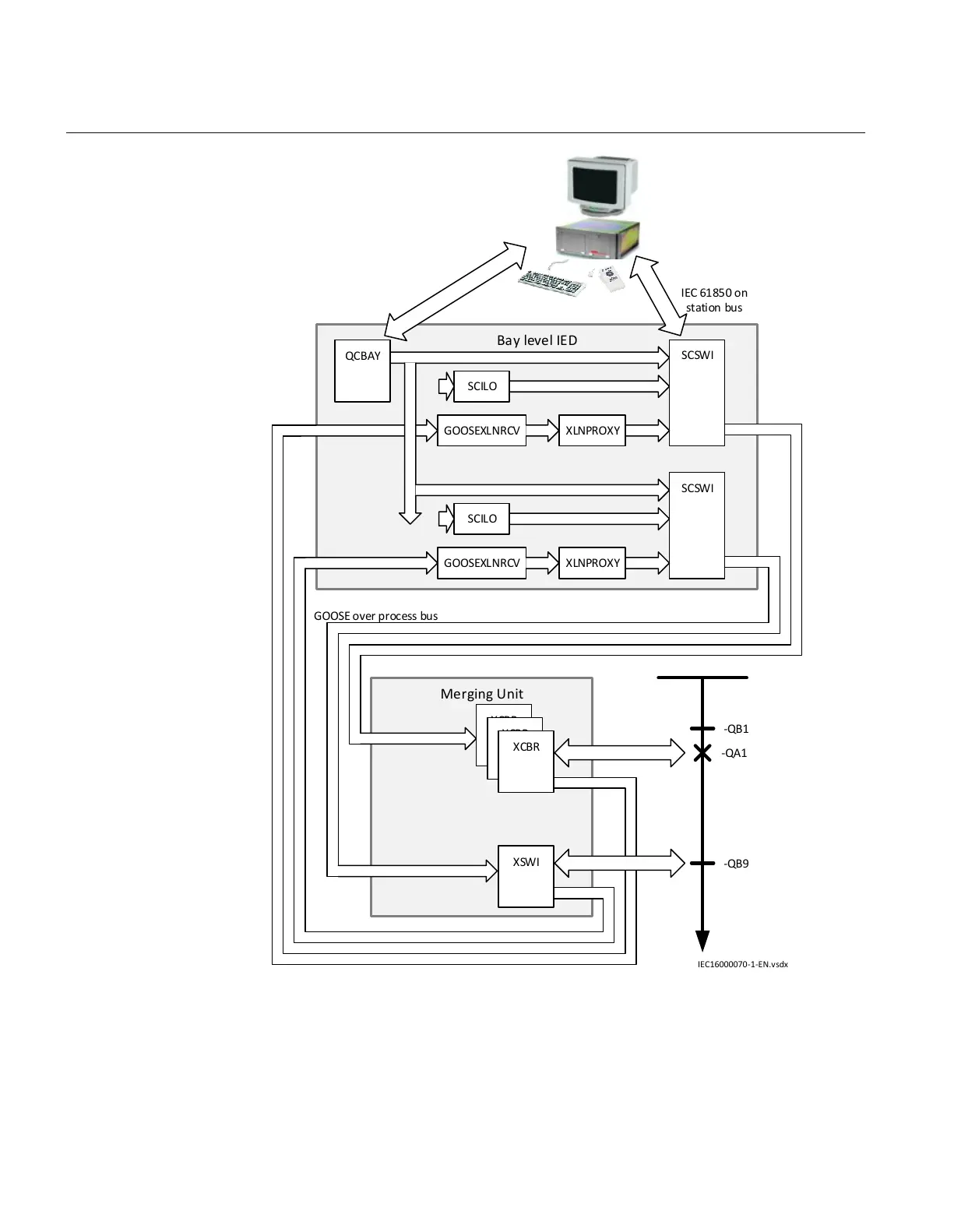

Figure 122:
Signal flow between apparatus control functions with XCBR and XSWI
located in a breaker IED
Section 14
1MRK 511 401-UUS A
Control
354
Bay control REC670 2.2 ANSI
Application manual
