54 SCU200 INSITE ENERGY MANAGEMENT SYSTEM

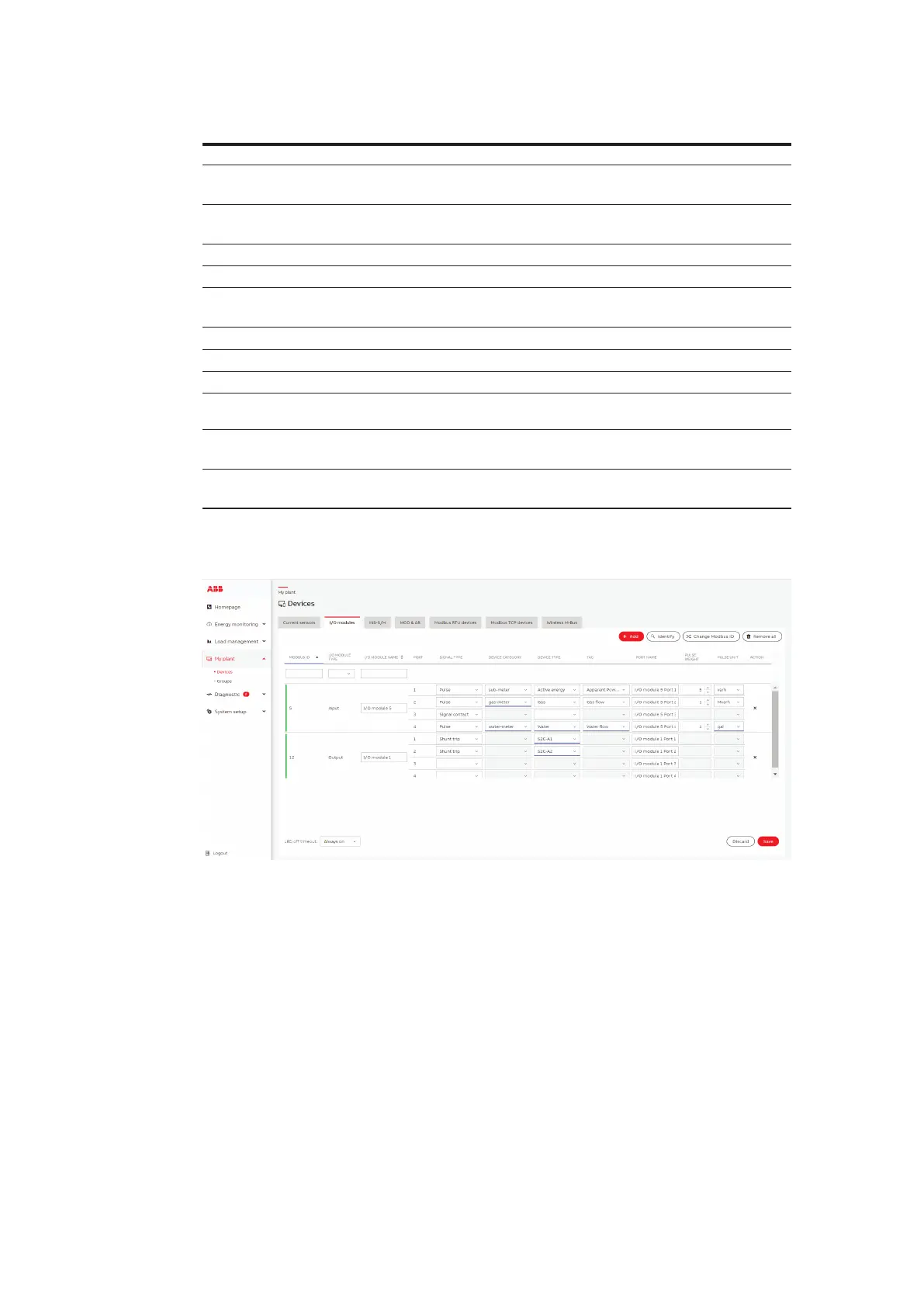

I/O Modules Definitions
Modbus ID I/O module identification number
I/O module
type
It is automatically recognized when the module is added and assigned.
I/O module
name
It is possible to define the module name
Port Port number from 1 to 4
Signal type It is possible to select the channel type from dropdown menu
Device
category
Defines the category of the pulse input device.
Device type It is possible to select the device type from the dropdown menu.
Tag It is possible to select the pulse input tag for groups calculations
Port name It is possible to define the port name
Pulse
weight
In case of pulse input signal it is possible to define the weight for the received
pulses. The number must be between –9999 to 9999
Pulse unit
In case of pulse input signal it is possible to select the unit of measurement
from the dropdown menu
Action
Remove
Removes the single I/O module
[Click a row] By clicking a row, the row is highlighted in light blue. Additionally, the LED of the selected
I/O module will start to blink.
