SPECIFICATIONS
Property Characteristic/Value
Process Display Range
pH
ORP
pIon
Temperature
-2.00 to +16.00 pH
-1999 to +1999 mV
-1999 to +1999 mV
0 to 140°C
Power Requirements
Analog
HART Versions
PROFIBUS PA
FOUNDATION Fieldbus (FF)
13.5 to 55 VDC (13.5 to 42 VDC for agency certified applications).
See Figure 27 below
14 to 55 VDC (14 to 42 VDC for agency certified applications).
See Figure 27 below
9 to 32 VDC (9 to 24 VDC for agency certified applications)
15 mA quiescent current
9 to 32 VDC (9 to 24 VDC for agency certified applications)
15 mA quiescent current
Ambient Temperature Effect
pH
ORP
pION
Temperature
±0.007 pH/°C @ 95% Relative Humidity
±0.4 mV/°C @ 95% Relative Humidity
±0.4 mV/°C @ 95% Relative Humidity
±0.16°C/°C @ 95% Relative Humidity
Maximum Sensor Cable Length 100 ft (30.5 m)
Environmental
Operating temperature
LCD Range
Storage temperature
-20° to 60°C (-4° to 140°F)
-20° to 60°C (-4° to 140°F)
-40° to 70°C (-40° to 158°F)
Enclosure Classification NEMA 4X
IP65
Size
Height
Minimum panel depth
Maximum panel cutout
Recommended panel cutout
144 mm high x 144 mm wide x 171 mm long (5.67 in. high x 5.67 in. wide x 6.75 in.
long)
145 mm (5.70 in.)
136.7 mm x 136.7 mm (5.38 in. x 5.38 in.)
135 mm x 135 mm (5.33 in. x 5.33 in.)
Weight 1.9 kg (4.2 lb) without mounting hardware
3.4 kg (7.5 lb) with Pipe Mounting Hardware
250
14 19 24 29 34 39 44 49 54 (HART)
13.5 18.5 23.5 28.5 33.5 38.5 43.5 48.5 53.5 (Analog)
2100
1800
1500
1200
900
600
300
0
LOAD RESISTANCE
(OHMS)
2000
HART
COMMUNICATIONS
RANGE

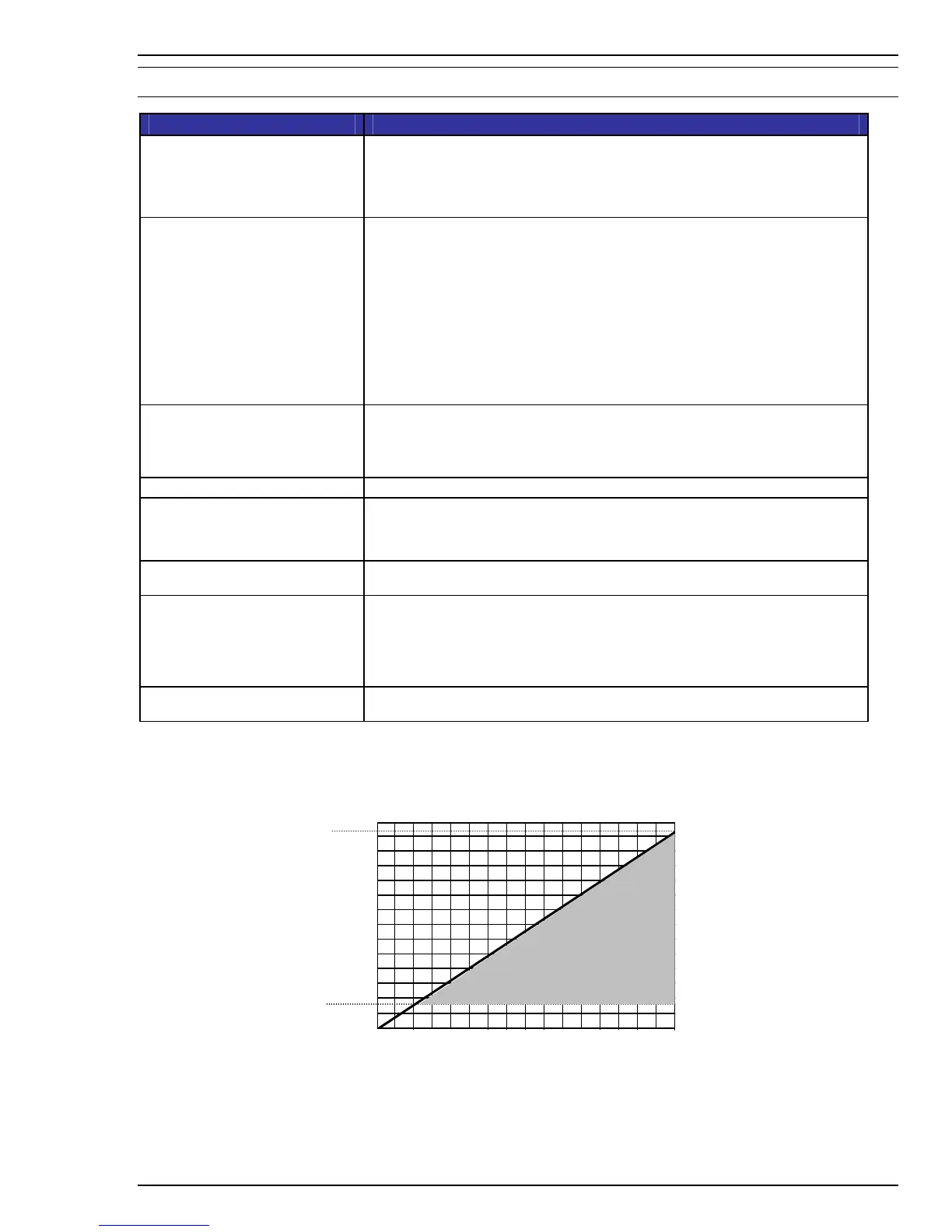

Figure 27 – Supply Voltage Requirements, HART and Analog Versions
Supply Voltage VDC
